Removal And Installation: Notes

Download the full database via torrent (~1.1 TB)

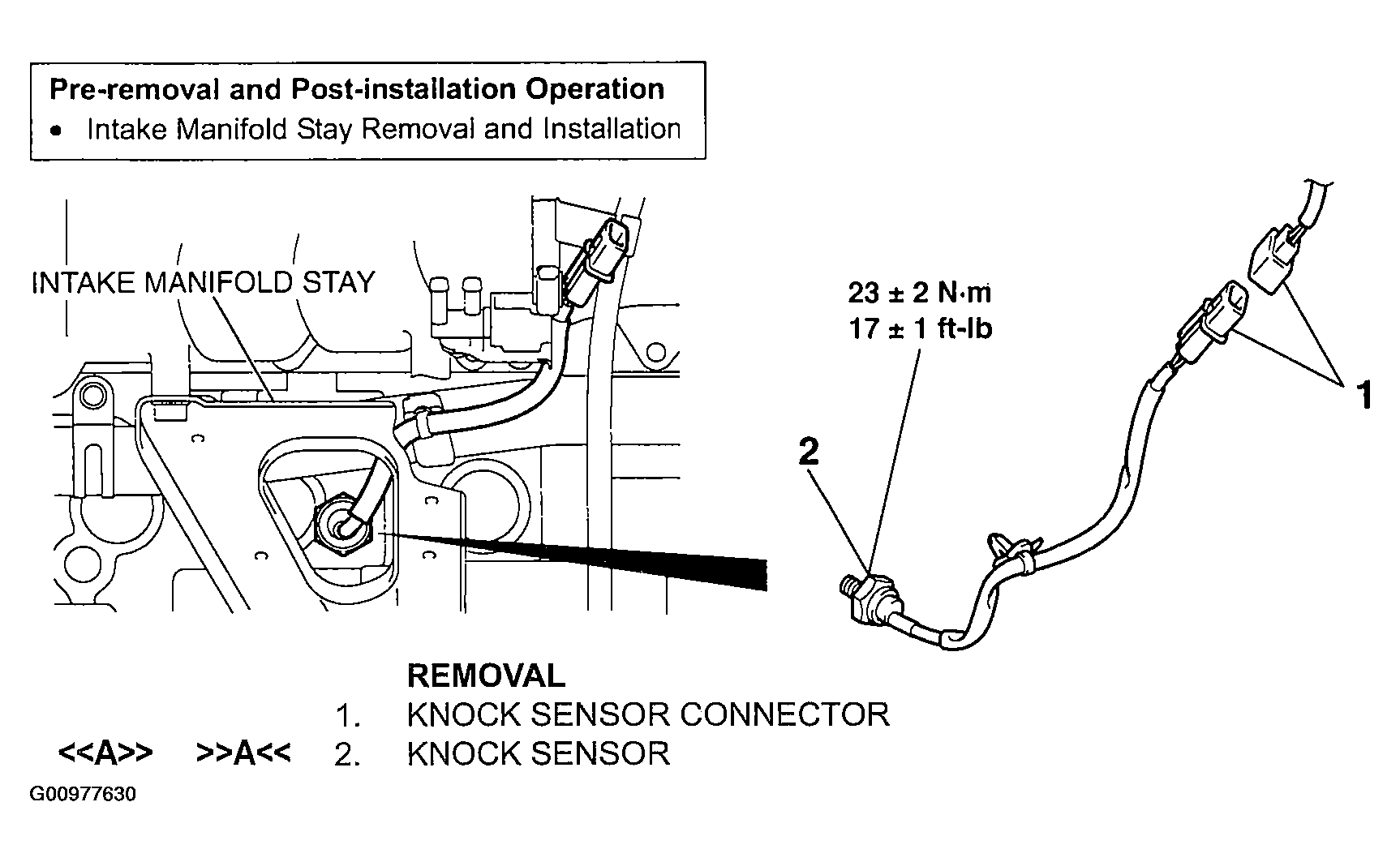

Fig 1: Removing Knock Sensor
G00977630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
