Home >> Mitsubishi >> 2021 >> RVR LE >> Repair and Diagnosis >> Electrical >> Component Locations >> Grounding

Component Locations: Grounding

Download the full database via torrent (~1.1 TB)

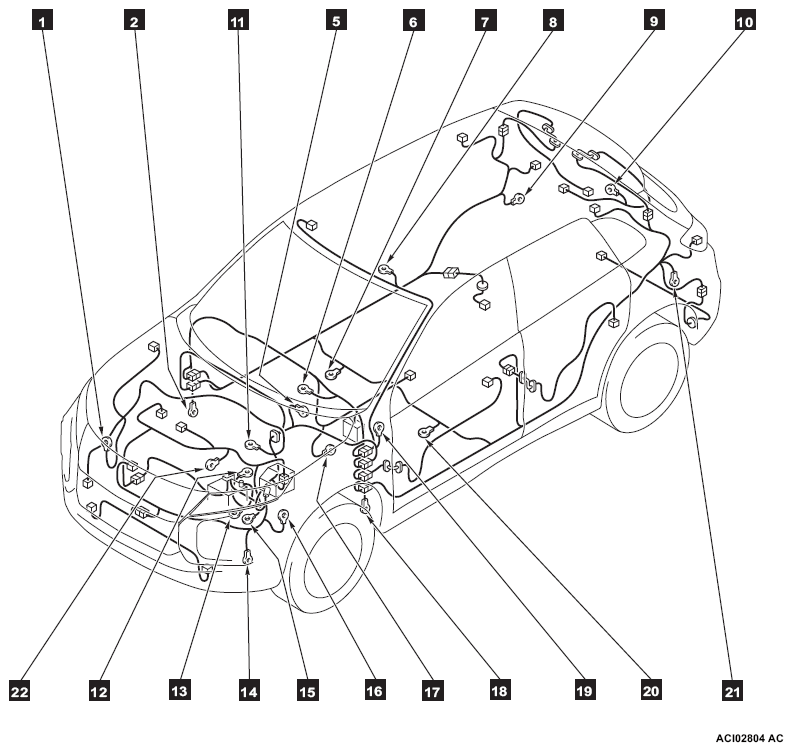

G14220072Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

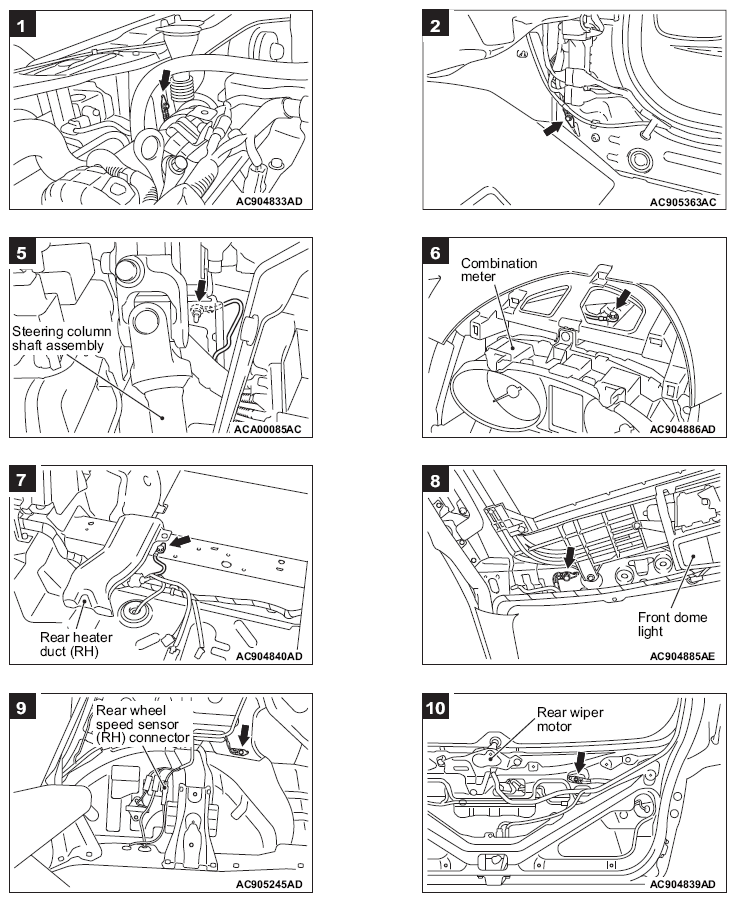

G14220073Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

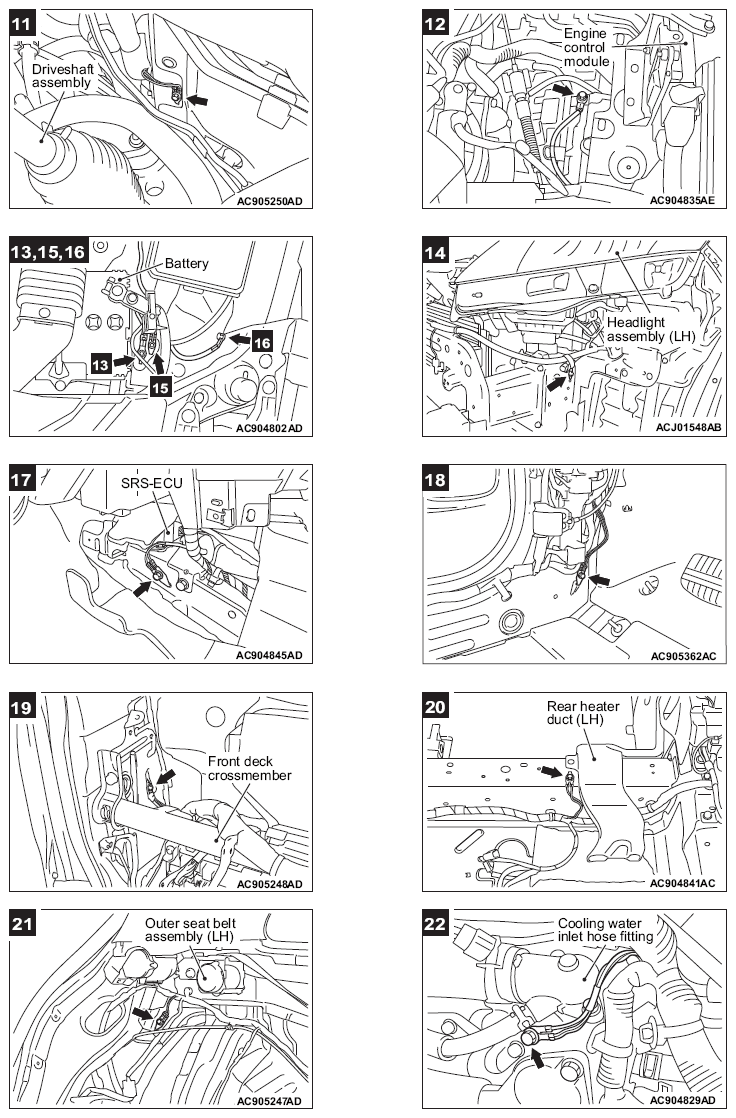

G14220074Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
