Charging Systems: Generator: Construction
Download the full database via torrent (~1.1 TB)

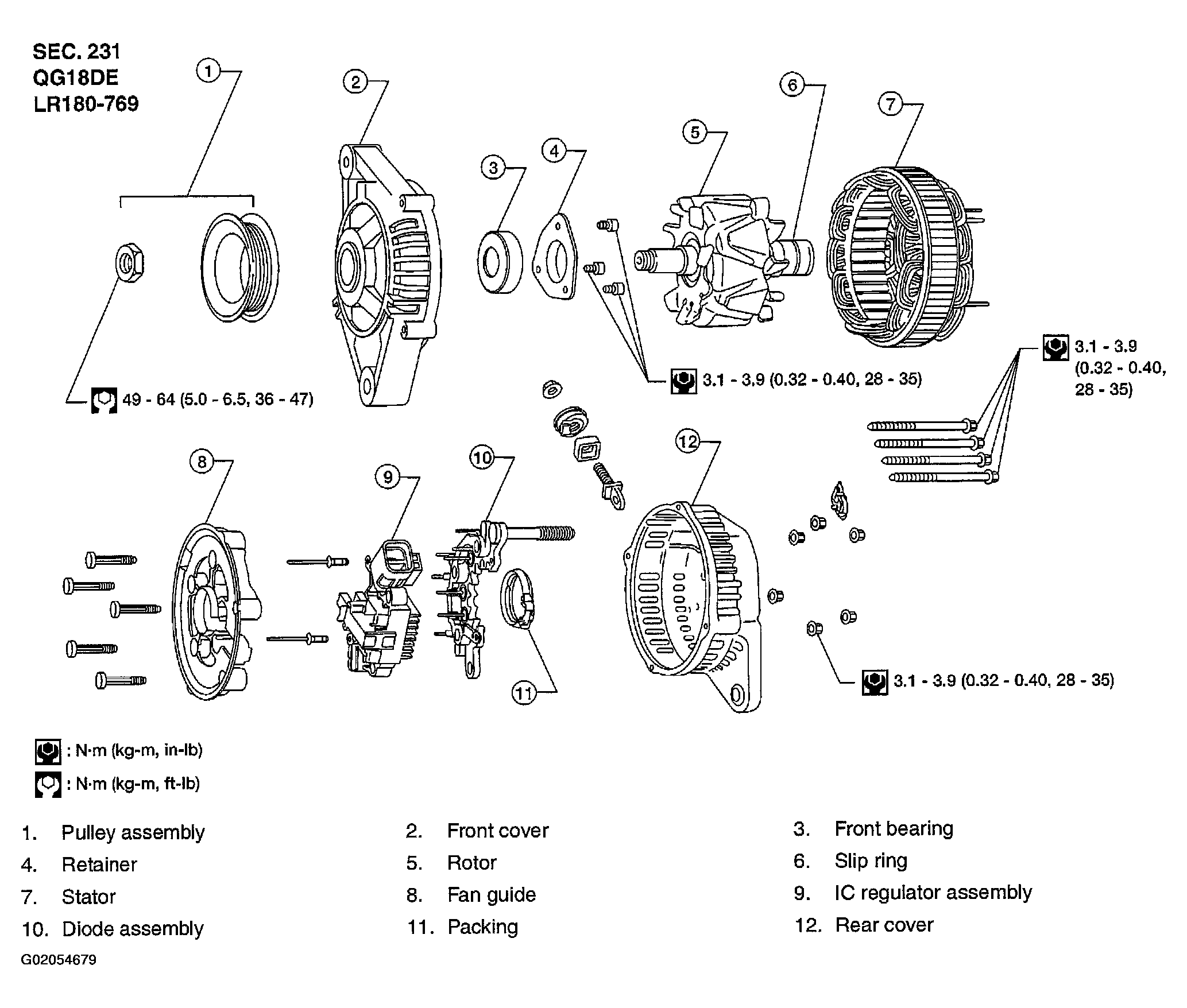

Fig 1: Exploded View of Generator (QG18DE)
Courtesy of NISSAN MOTOR CO., U.S.A.

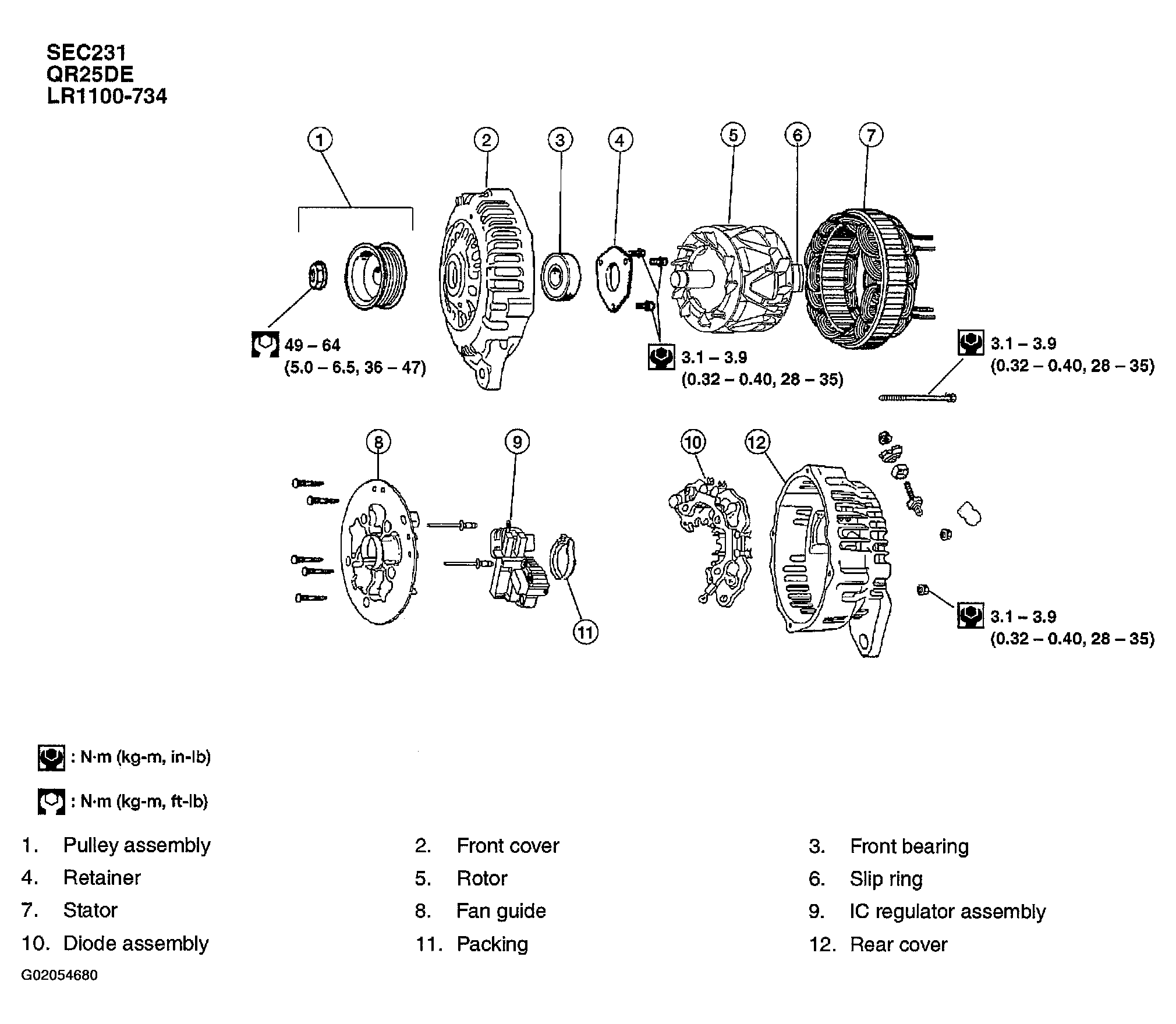

Fig 2: Exploded View of Generator (QR25DE)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
