Work Flow

Download the full database via torrent (~1.1 TB)
NOTE: For minimum specification of cranking voltage referencing coolant temperature, see MINIMUM SPECIFICATION OF CRANKING VOLTAGE REFERENCING COOLANT TEMPERATURE .

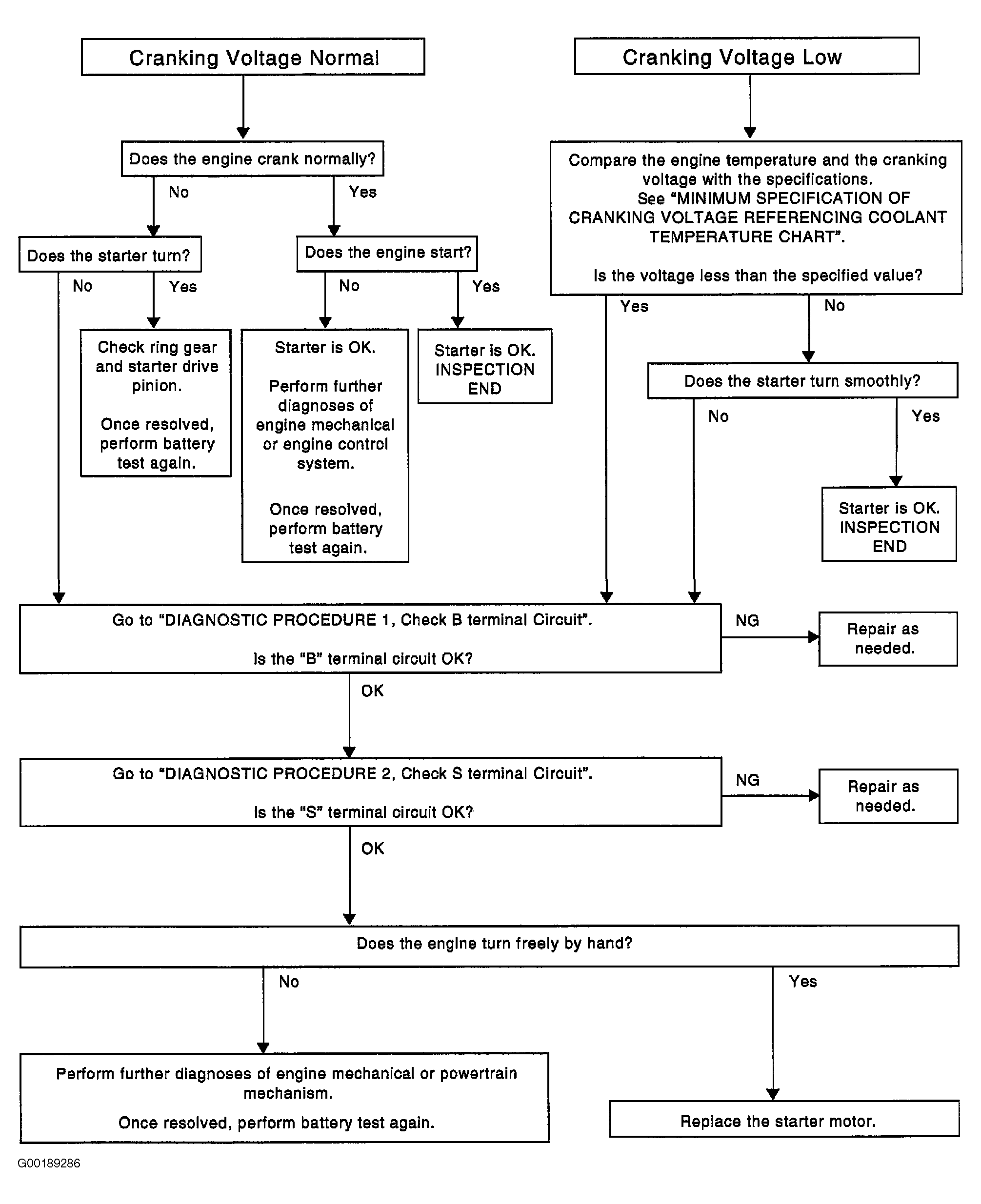

Fig 1: Identifying Work Flow
G00189286Courtesy of NISSAN MOTOR CO., U.S.A.
