Brake Control System: Description: Schematic
Download the full database via torrent (~1.1 TB)

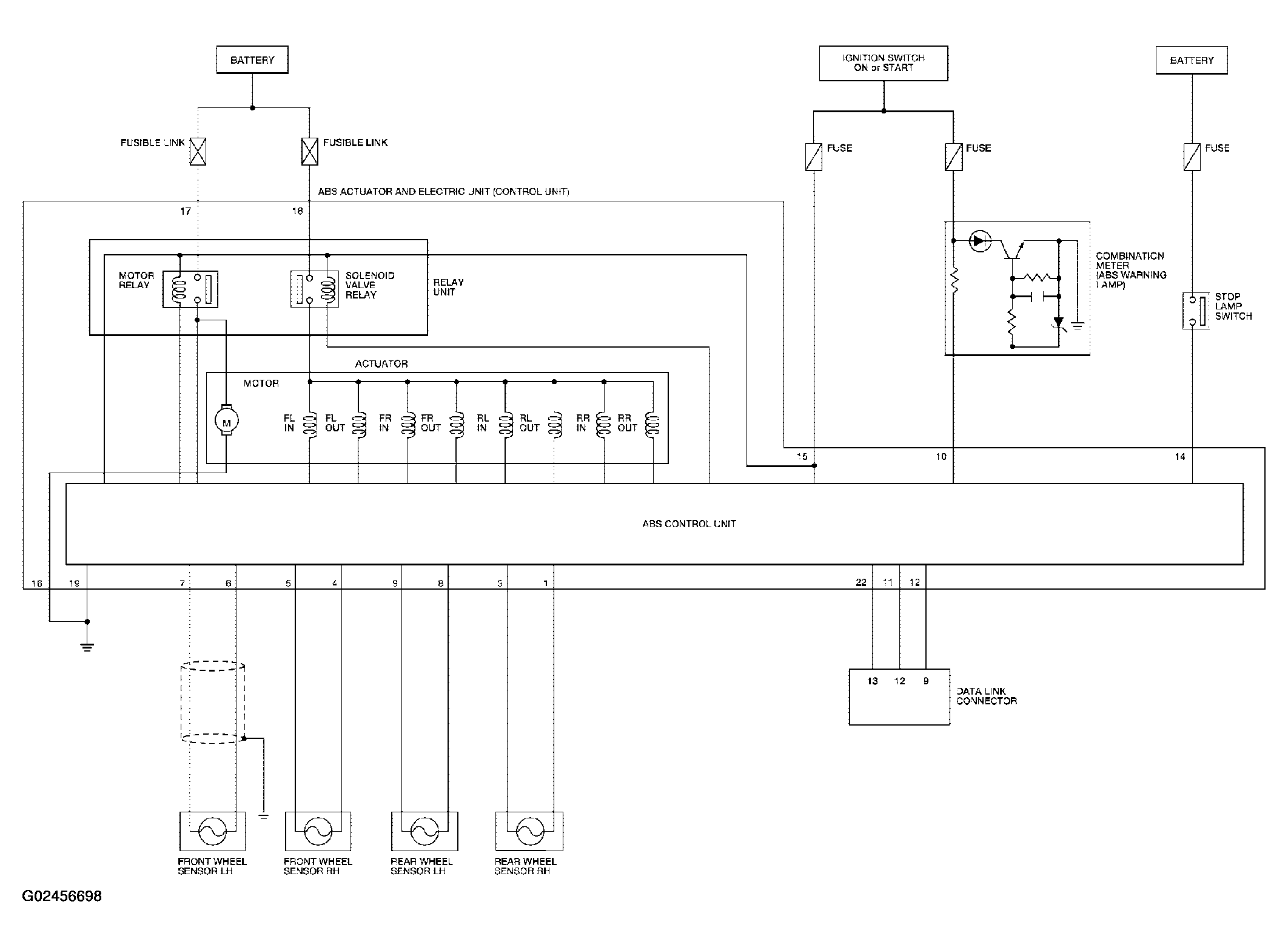

Fig 1: Anti-Lock Brake System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
