Engine Control System - Component Testing (Qr25DE)
>>
ASCD Indicator
>>
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Download the full database via torrent (~1.1 TB)
Specification data are reference value.

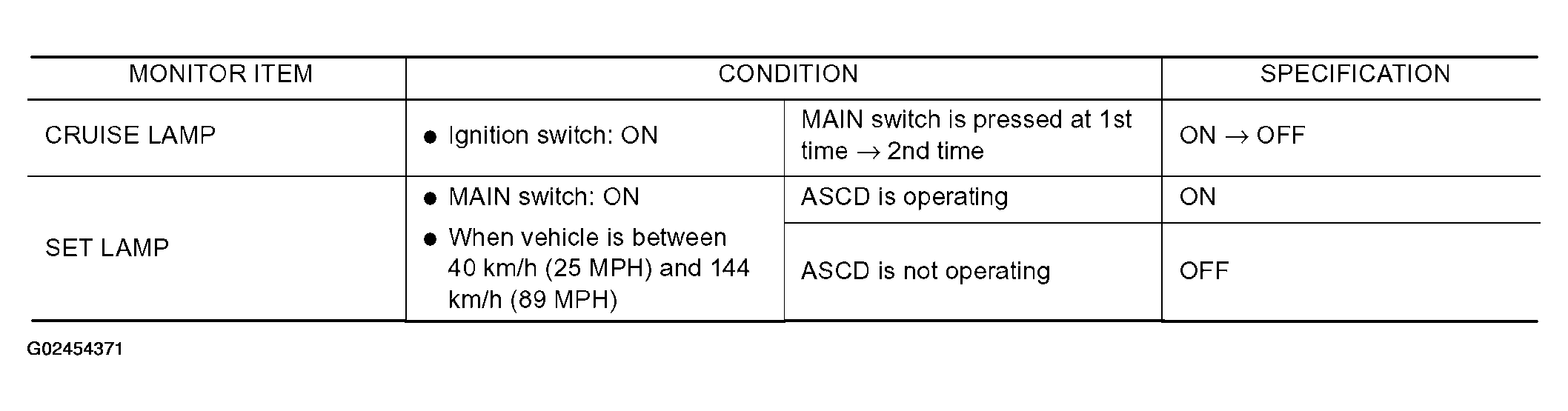

Fig 1: CONSULT-II Reference Value Chart - ASCD (Cruise Control) Indicator Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
