Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Description
>>
Schematic
Brake Control System: Description: Schematic
Download the full database via torrent (~1.1 TB)

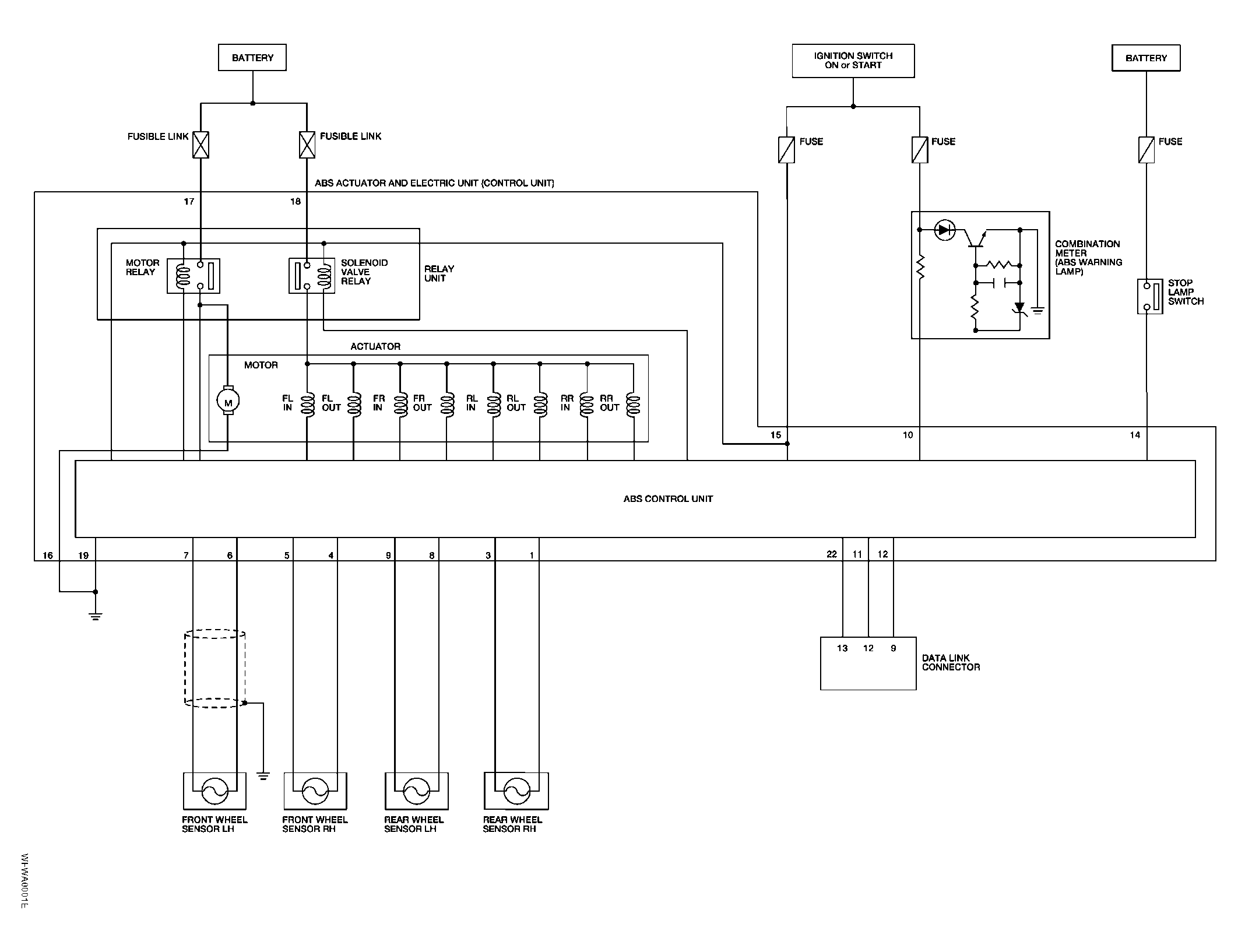

Fig 1: Brake Control System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
