Engine Control System - Introduction (Qr25DE)
>>
Engine Control System
>>
System Diagram
System Diagram
Download the full database via torrent (~1.1 TB)

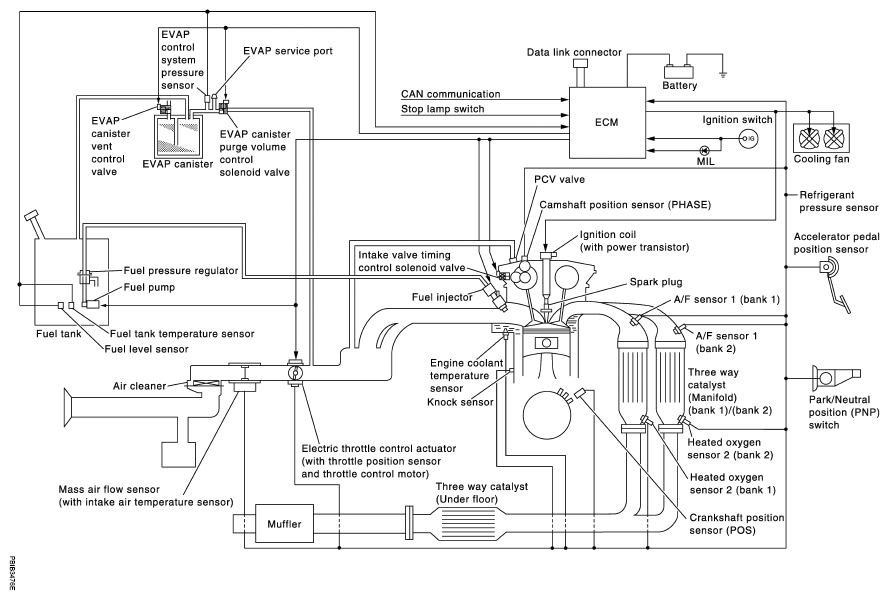

Fig 1: Engine Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
