Engine Control System - Introduction (Qr25DE)
>>
Service Information
>>
Engine Control System
>>
Schematic
Engine Control System: Schematic
Download the full database via torrent (~1.1 TB)

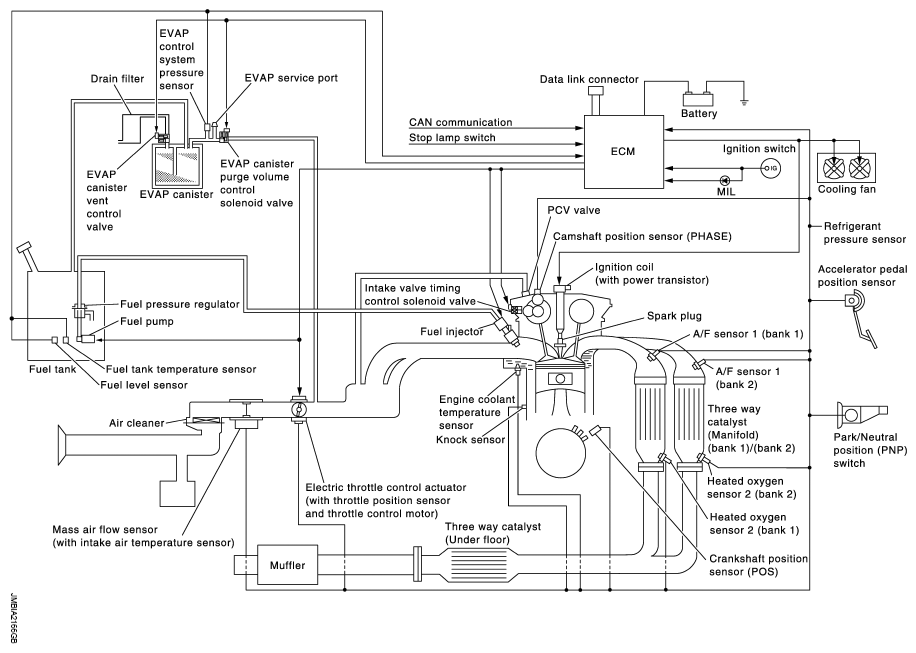

Fig 1: Engine Control System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
