Fuel Tank
>>
Exploded View
Exploded View
Download the full database via torrent (~1.1 TB)

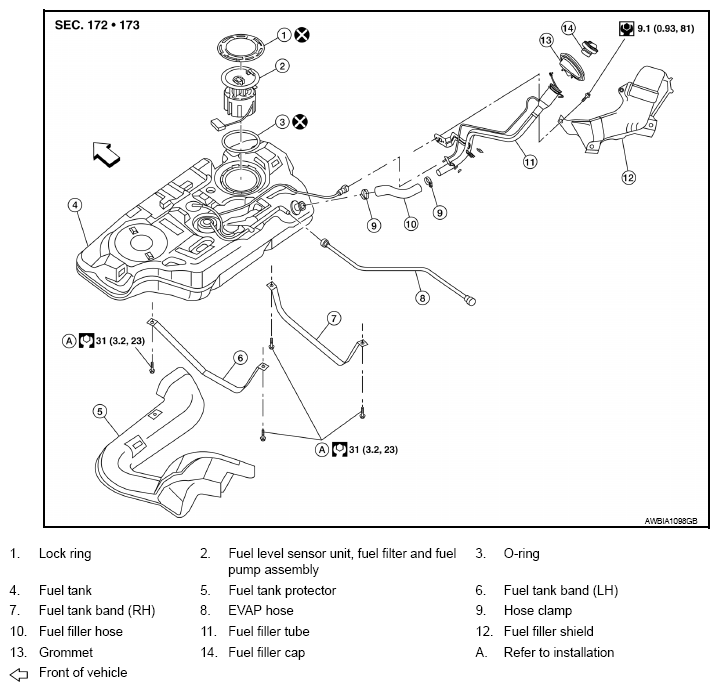

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
