Adaptive Lamp Monitor Control Module C3
Adaptive Lamp Monitor Control Module C3
Download the full database via torrent (~1.1 TB)

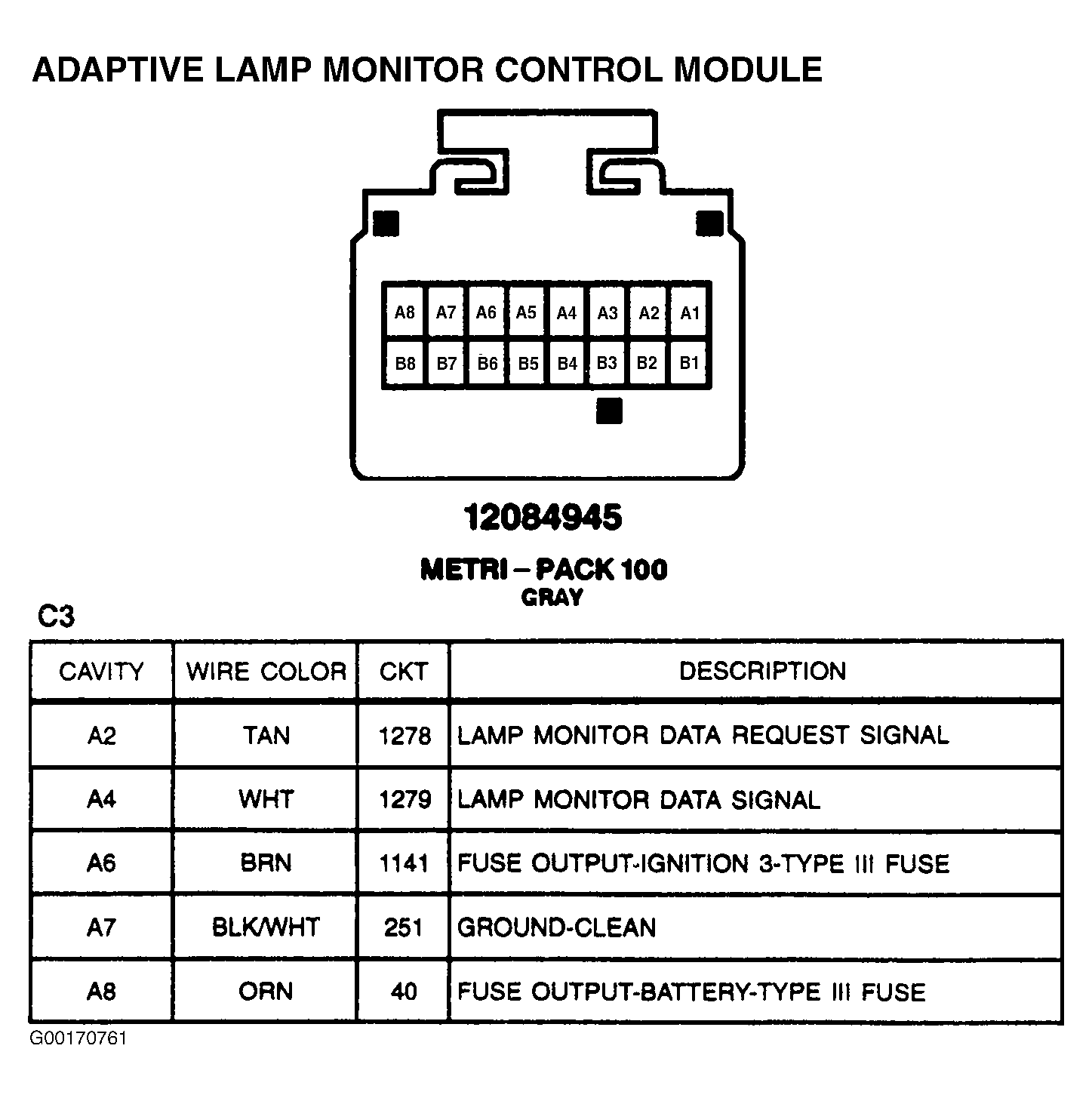

Fig 1: Adaptive Lamp Monitor Control Module C3 - 16-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
