Connector Terminal Identification
>>
Memory Seat/Memory Mirror Control Module C2
Memory Seat/Memory Mirror Control Module C2
Download the full database via torrent (~1.1 TB)

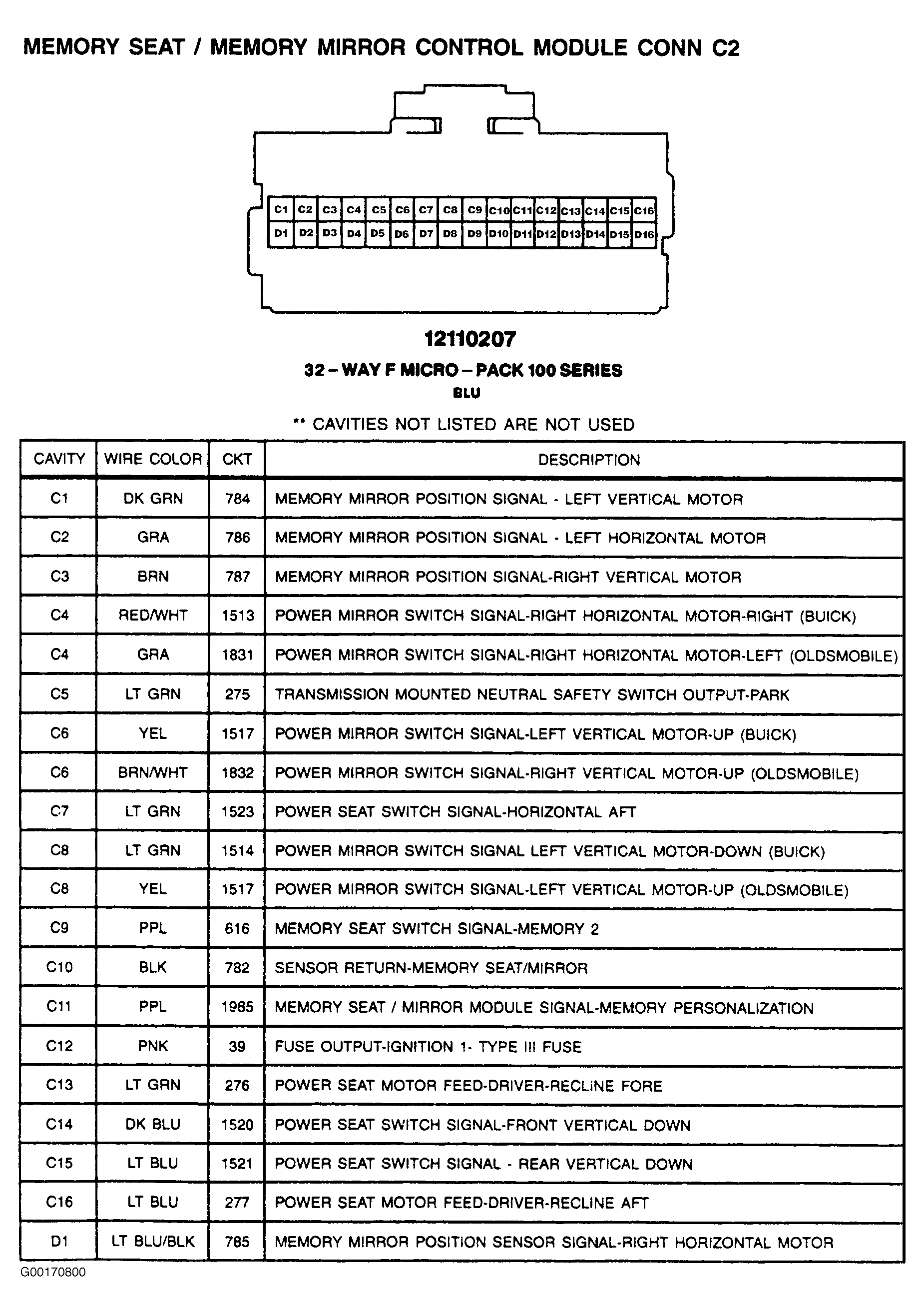

Fig 1: Memory Seat/Memory Mirror Control Module C2 - 32-Pin Connector (Blue) - (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

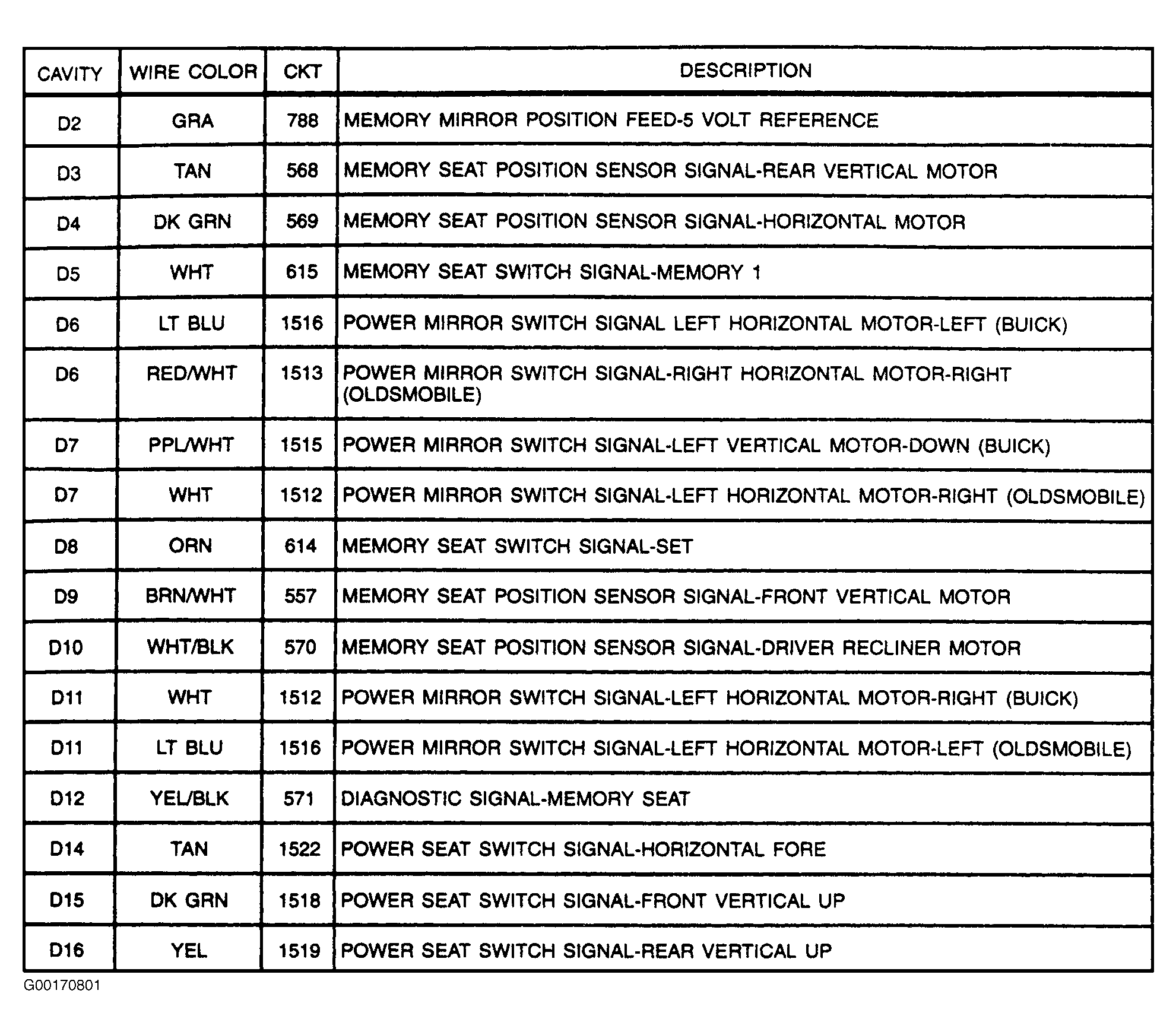

Fig 2: Memory Seat/Memory Mirror Control Module C2 - 32-Pin Connector (Blue) - (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
