Connector Terminal Identification
>>
Remote Function Actuator (RFA) Module
Remote Function Actuator (RFA) Module
Download the full database via torrent (~1.1 TB)

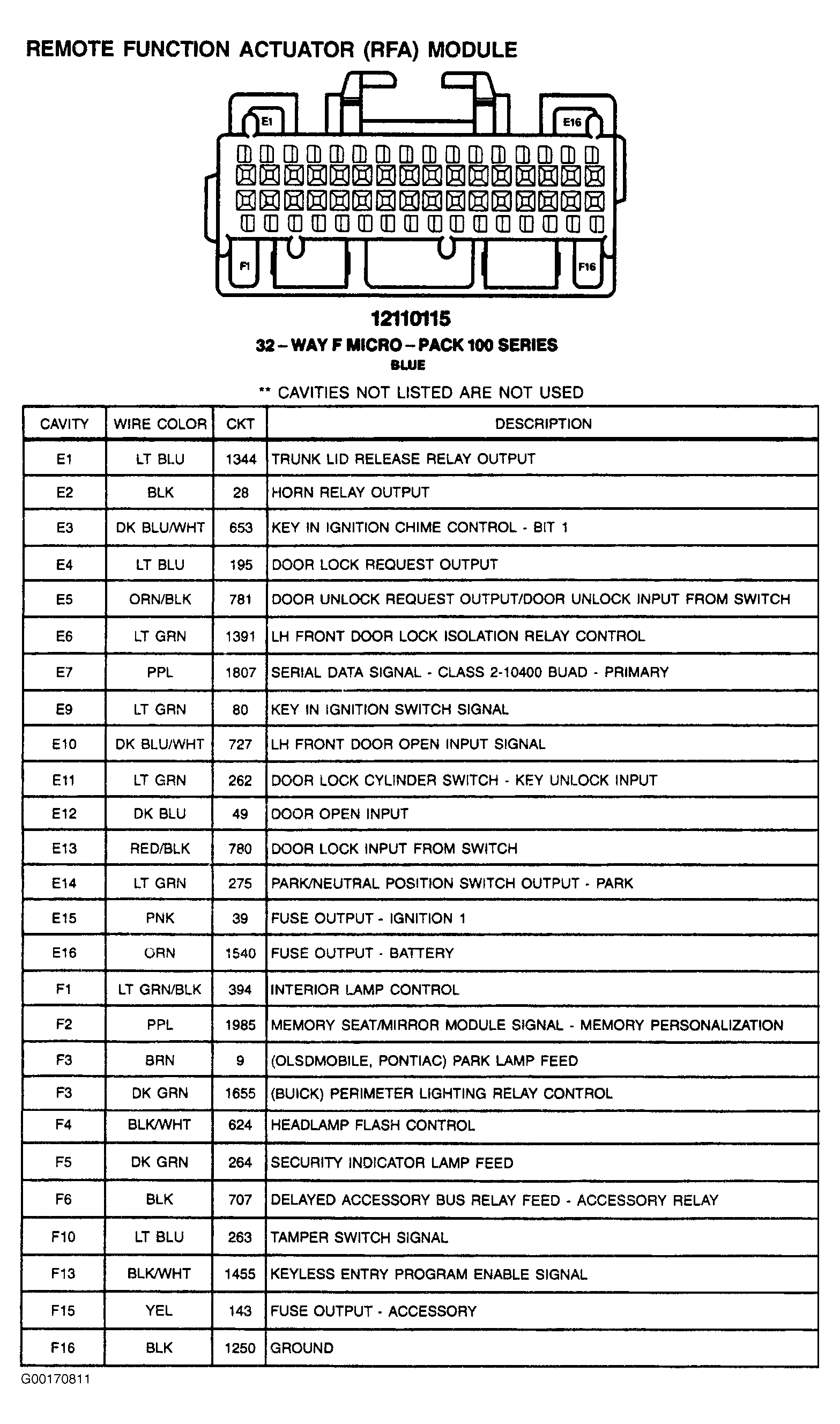

Fig 1: Remote Function Actuator (RFA) Module - 32-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
