Keyless Entry Connector End View
Keyless Entry Connector End View
Download the full database via torrent (~1.1 TB)

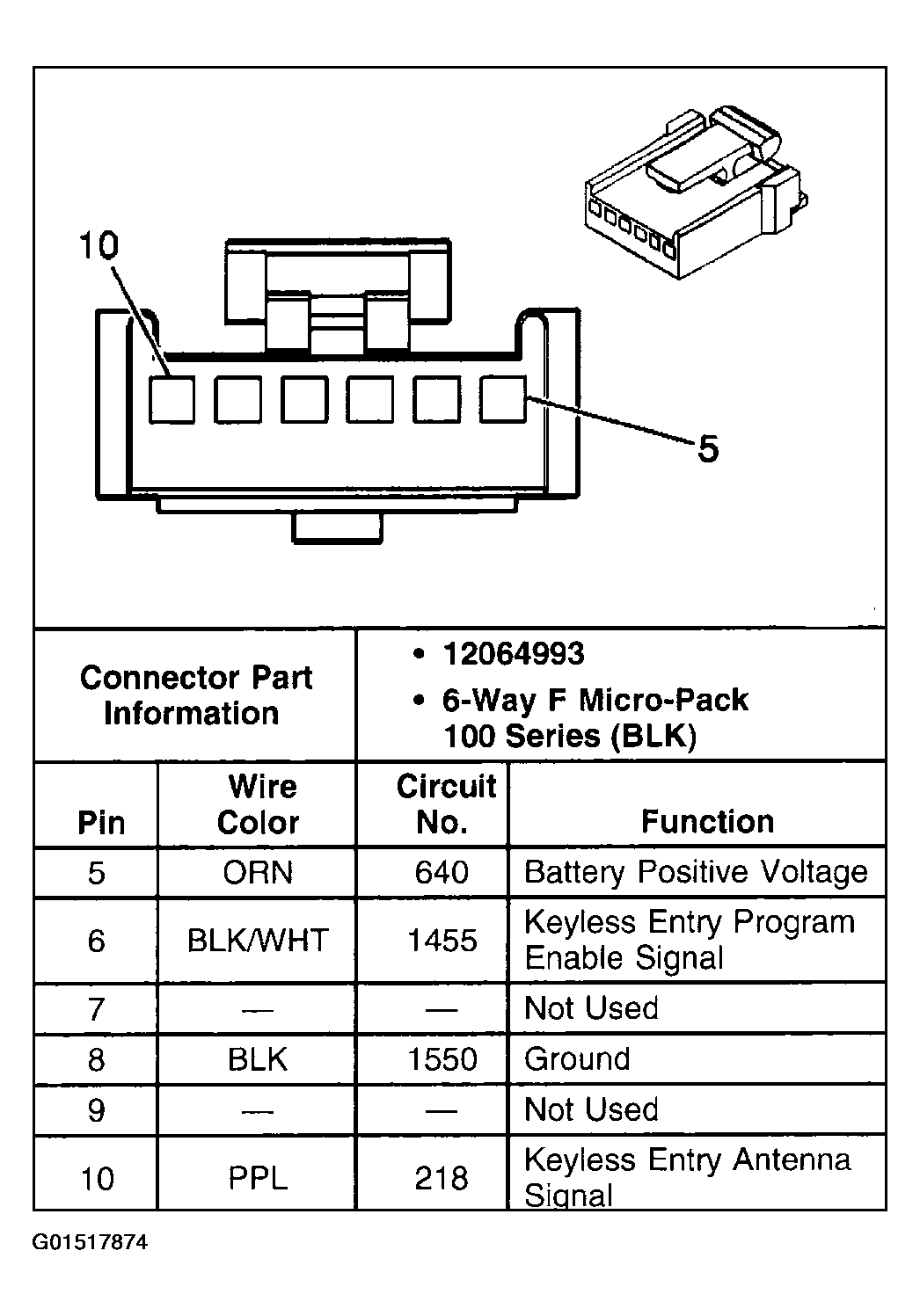

Fig 1: Identifying Remote Control Door Lock Receiver (RCDLR) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
