Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views
Download the full database via torrent (~1.1 TB)

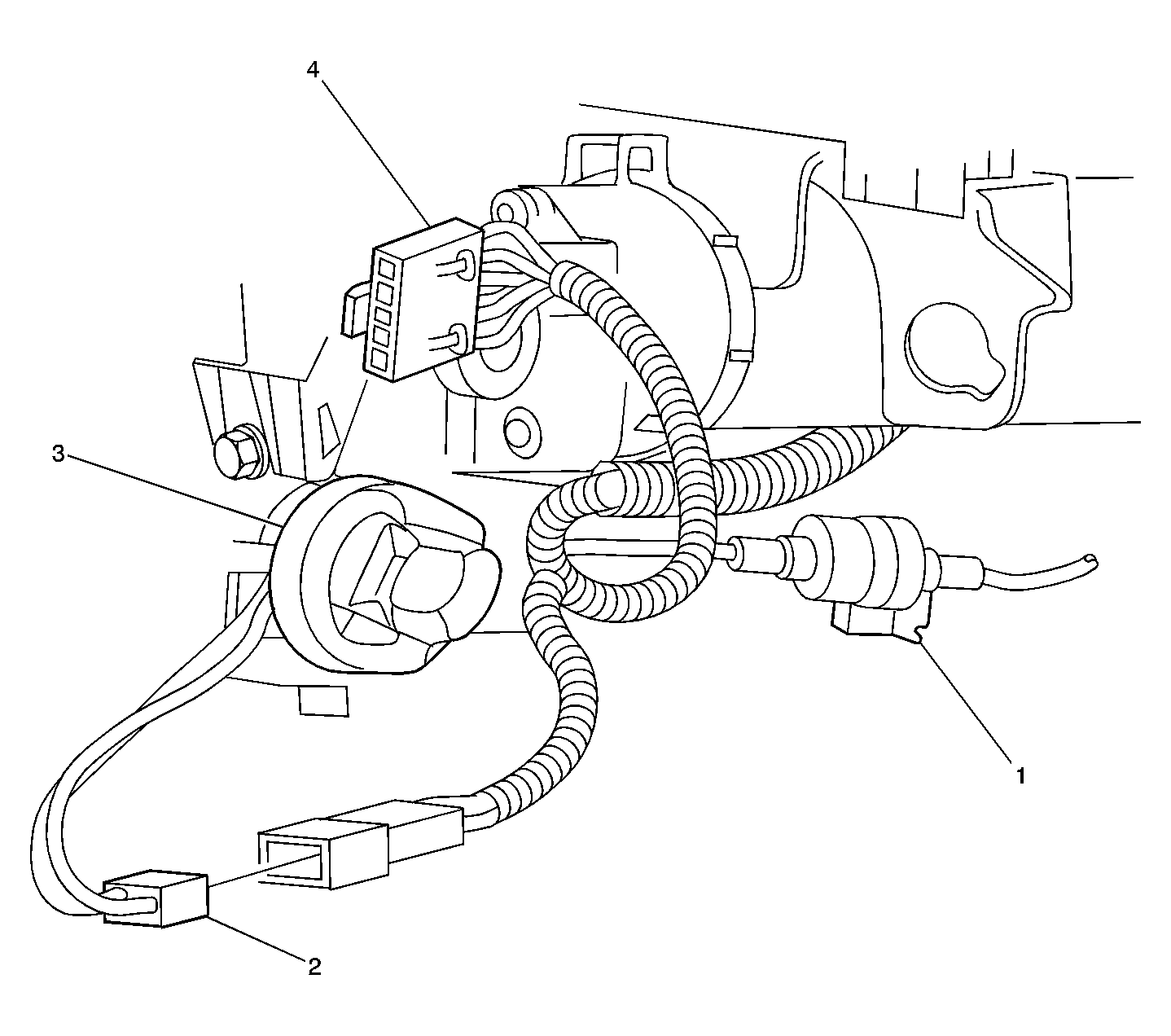

Fig 1: Under Steering Column Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
A/T Shift Lock Solenoid
2
Passlock™ Lock Sensor Connector
3
Ignition Key Cylinder
4
Windshield Wiper Lead
