Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views
Download the full database via torrent (~1.1 TB)

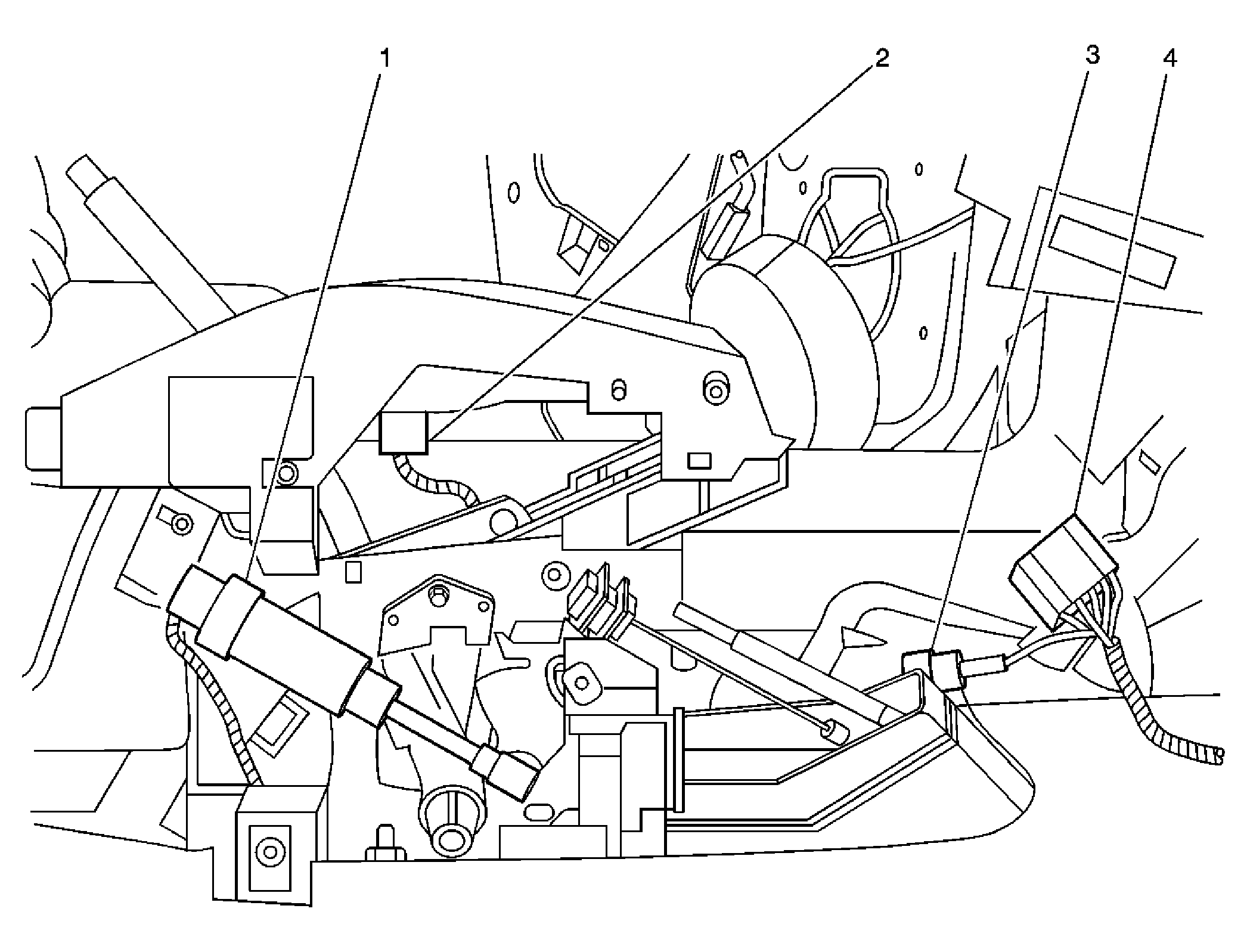

Fig 1: Inside Center Console Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
A/T Shift Lock Control Solenoid
2
PRNDL Lamp
3
C241
4
C240
