Keyless Entry Module: Diagrams
Download the full database via torrent (~1.1 TB)

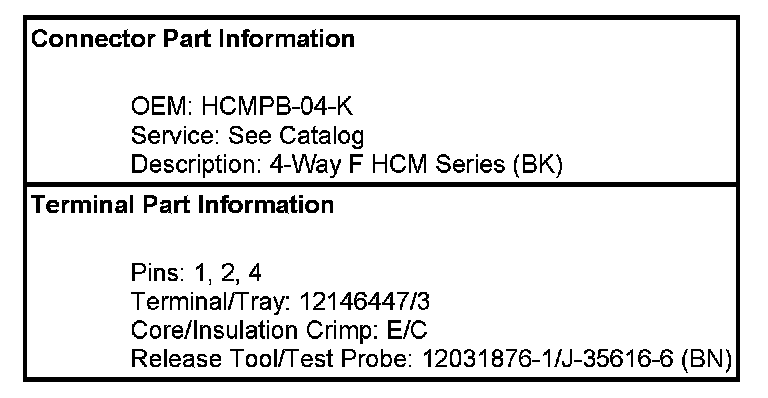

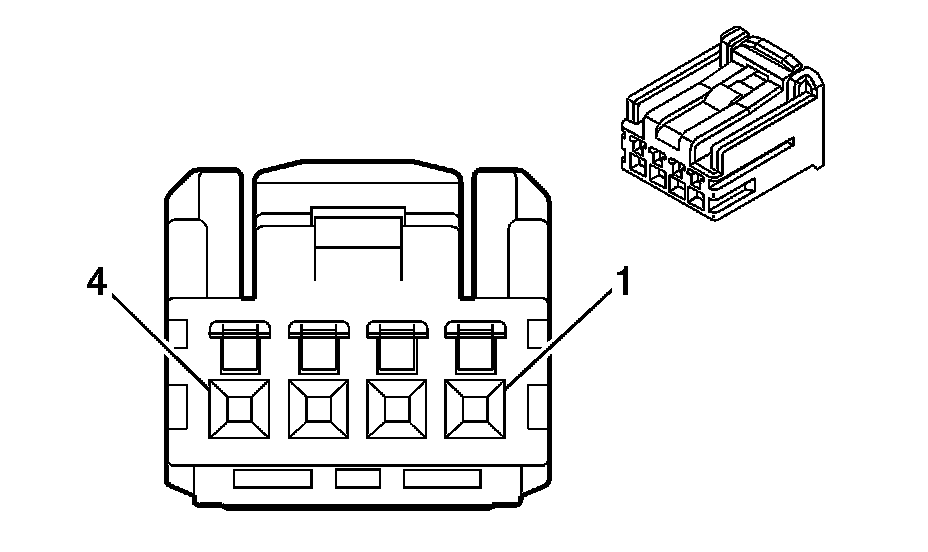

Remote Function Connector End Views

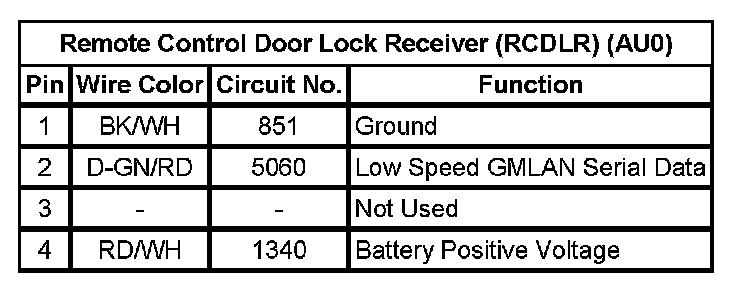

Remote Control Door Lock Receiver (RCDLR) (AU0)
