Shift Lock Control Component Views

Download the full database via torrent (~1.1 TB)

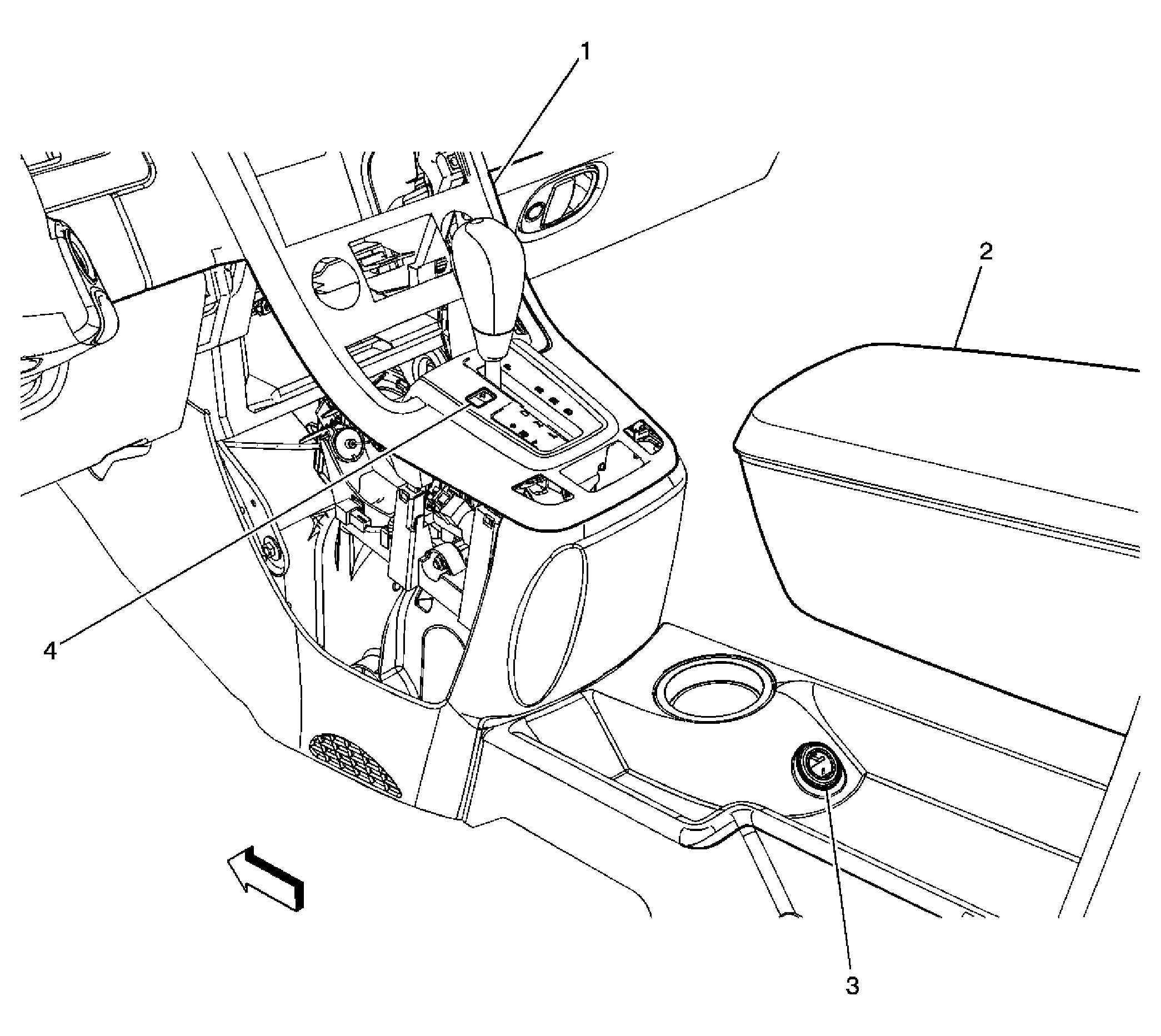

Fig 1: Below The Shifter View
GM1826048Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Trim
2 Console Arm Rest
3 Cigar Lighter
4 Shift Lock Control Solenoid
