Installation Procedure

Download the full database via torrent (~1.1 TB)

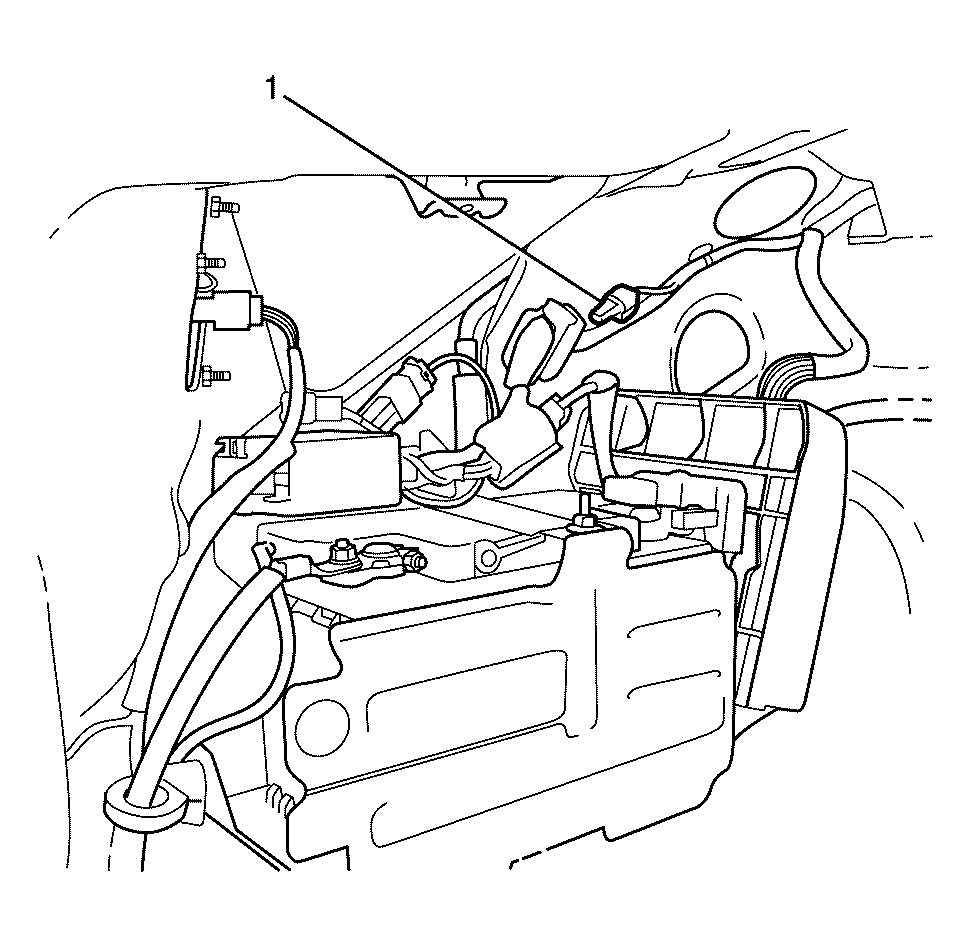

    Fig 1: Locating Data Link Resistor
    GM2094933Courtesy of GENERAL MOTORS CORP.
  1. Connect the data link resistor (1) to the rear body harness.
  2. Tape the data link resistor (1) to the rear body harness.
  3. Install the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
