Trouble Shooting
Trouble Shooting
Download the full database via torrent (~1.1 TB)

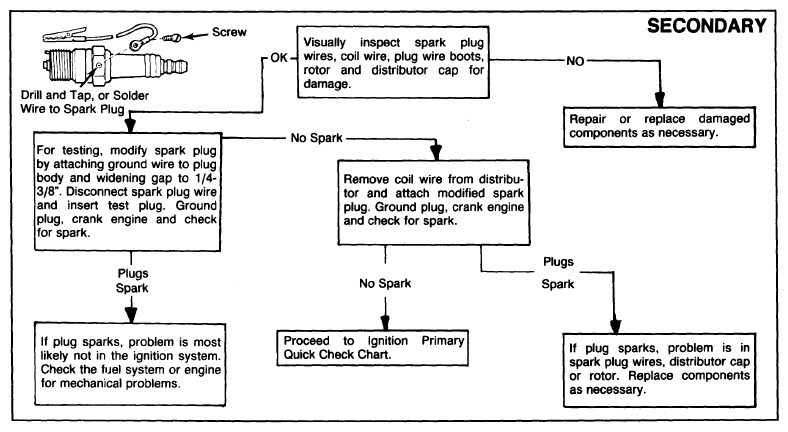

Fig 1: Secondary Ignition Trouble Shooting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

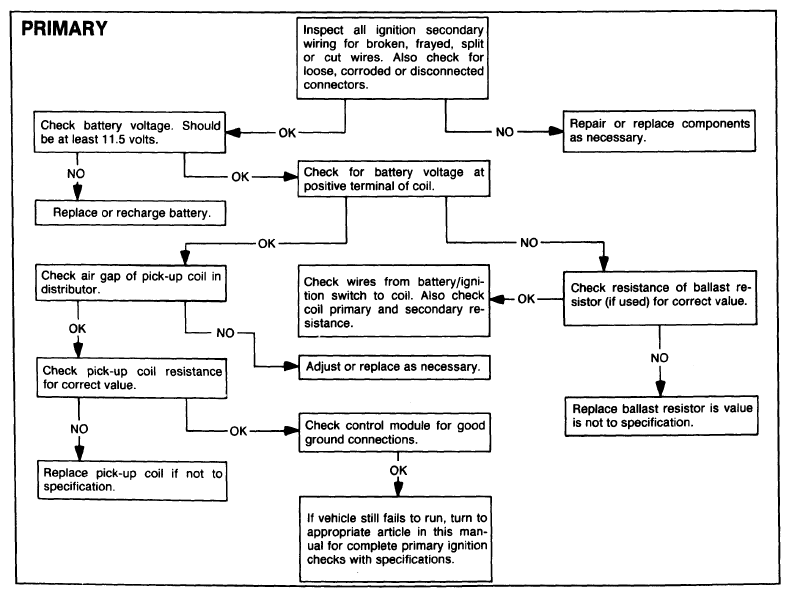

Fig 2: Primary Ignition Trouble Shooting
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
