Control module power supply: Notes

Download the full database via torrent (~1.1 TB)

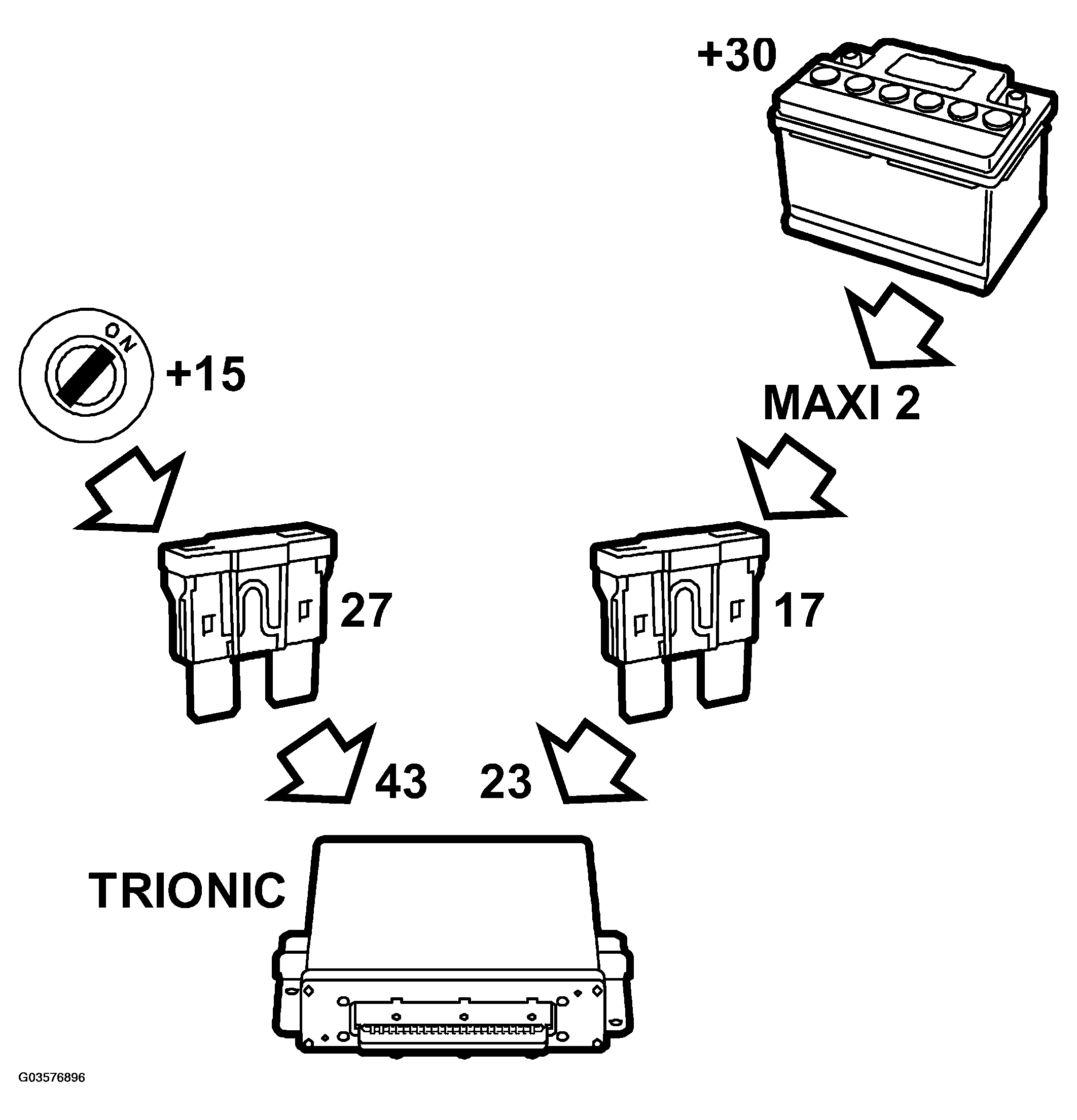

Fig 1: Identifying Communication Flow - Control Module Power Supply
G03576896Courtesy of SAAB-SCANIA OF AMERICA, INC.

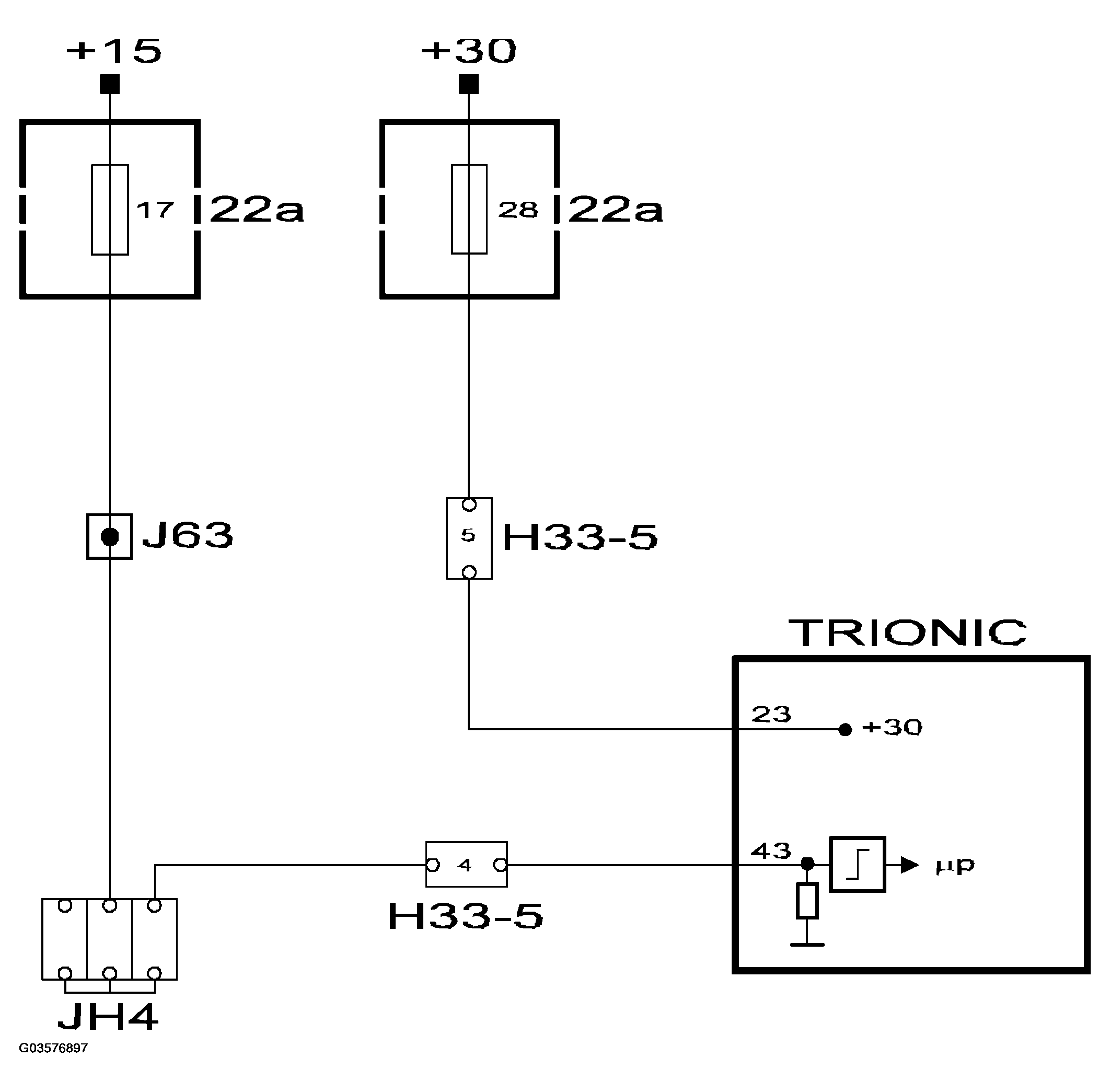

Fig 2: Control Module Power Supply Circuit Diagram
G03576897Courtesy of SAAB-SCANIA OF AMERICA, INC.
