Saturn
>>
1997
>>
SC1 Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Identification
>>
Coolant Level Switch
Coolant Level Switch
Download the full database via torrent (~1.1 TB)

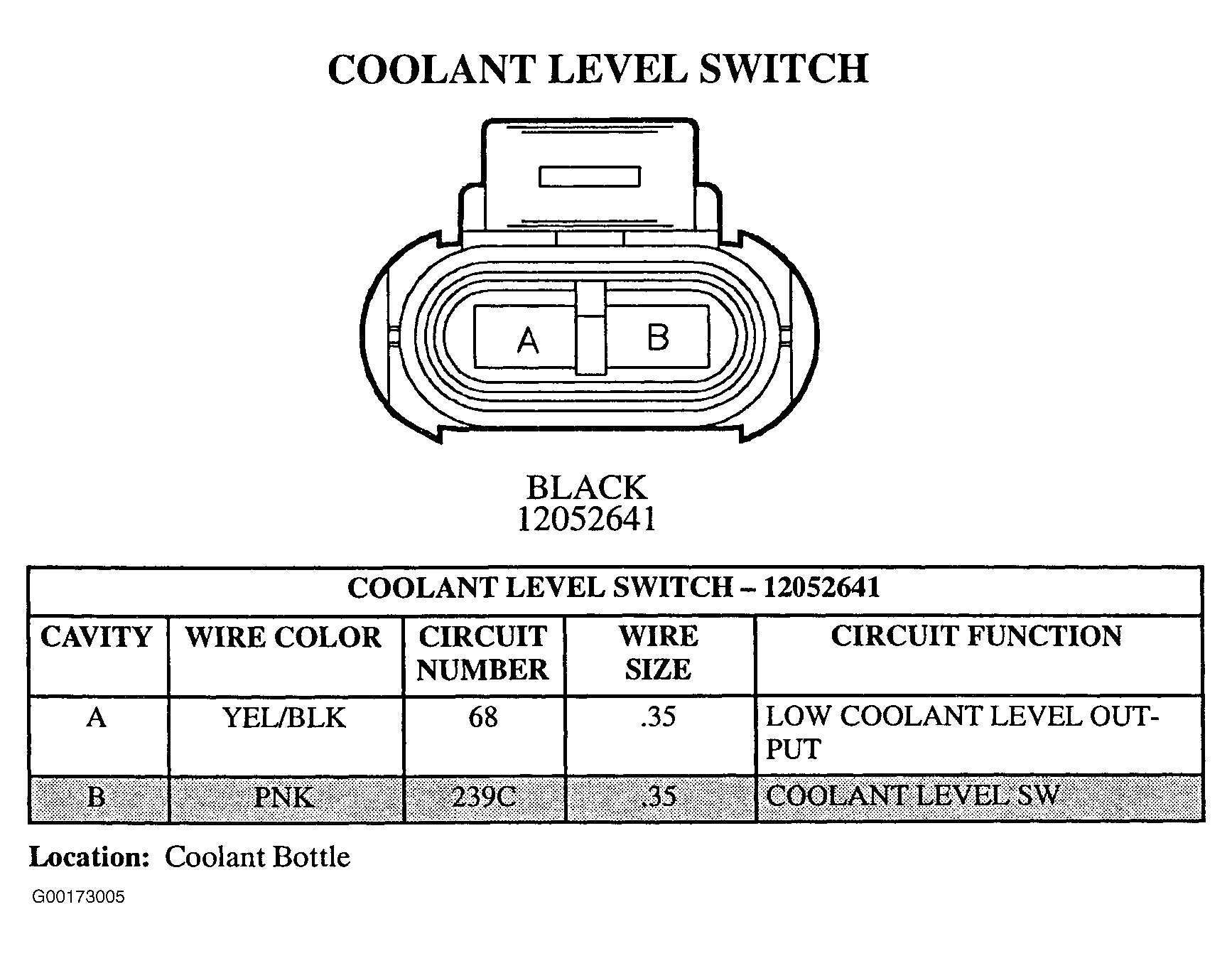

Fig 1: Coolant Level Switch - 2-Pin Connector (12052641) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
