Cruise Control
>>
Cruise Control/Horn Switch
Cruise Control/Horn Switch
Download the full database via torrent (~1.1 TB)

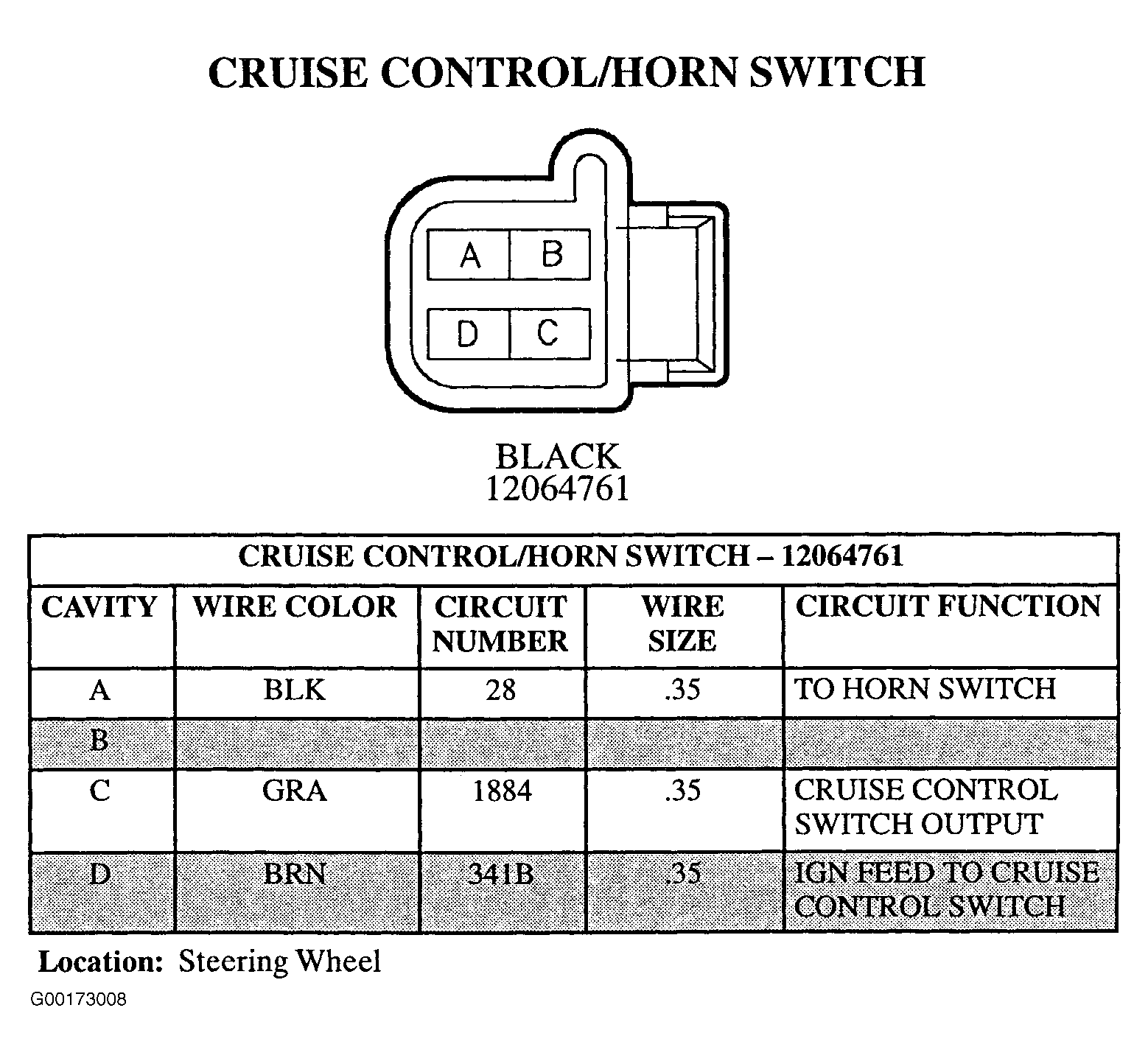

Fig 1: Cruise Control/Horn Switch - 4-Pin Connector (12064761) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
