Connector Identification
>>
Idle Air Control
Idle Air Control
Download the full database via torrent (~1.1 TB)

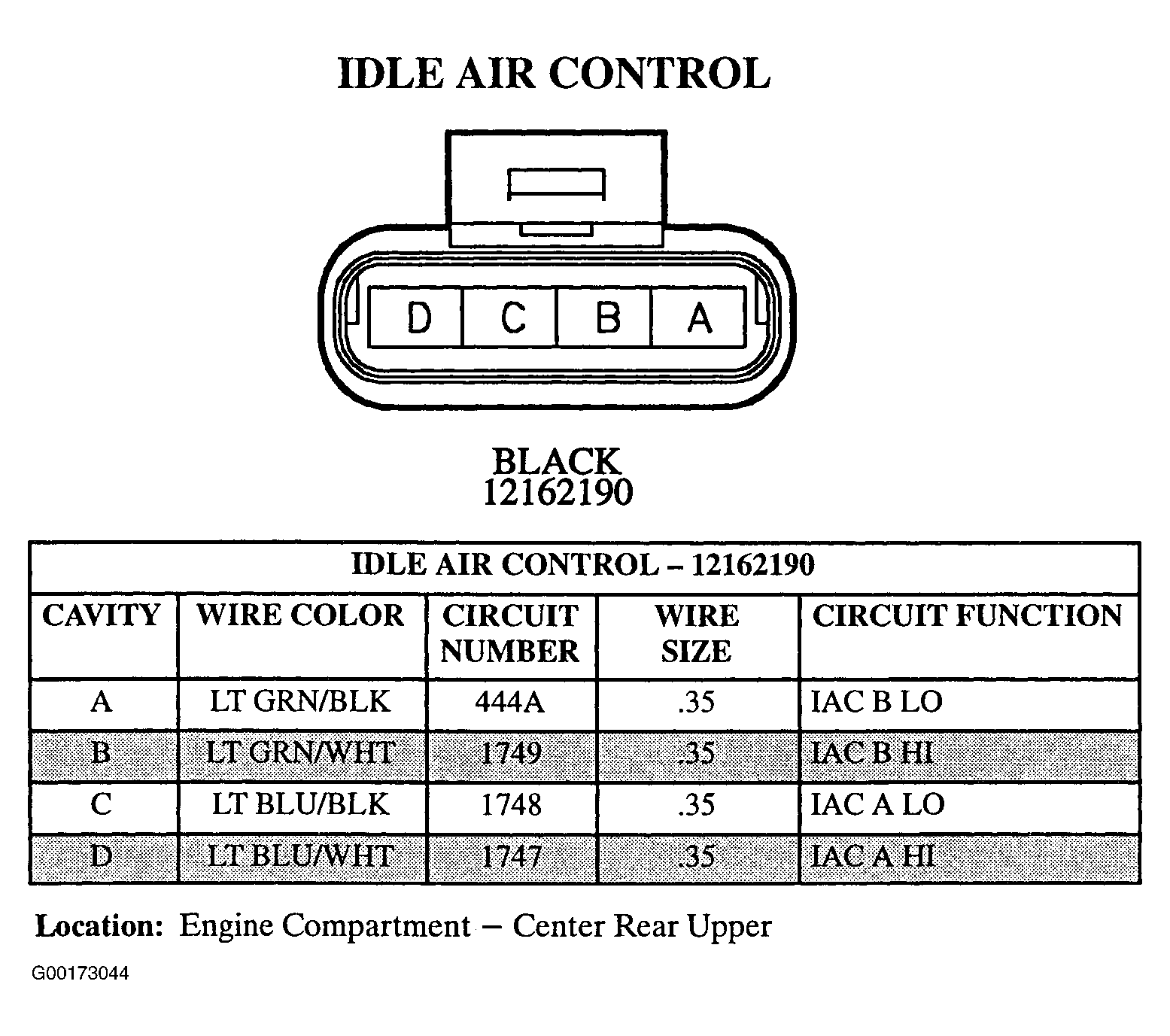

Fig 1: Idle Air Control - 4-Pin Connector (12162190) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
