Installation Procedure

Download the full database via torrent (~1.1 TB)
    IMPORTANT: Always install new injector O-rings when servicing the fuel injectors. Lubricate the new injector O-rings with clean engine oil
  1. Install the O-rings on the fuel injector (4,7).
  2. Install the fuel injector clip (3) on the fuel injector (5).
    3. IMPORTANT: The fuel injector will click when the injector is installed correctly.
  3. Install the fuel injector in the fuel rail with the connector facing upward.
  4. Install the fuel rail. Refer to Fuel Rail Assembly Replacement .

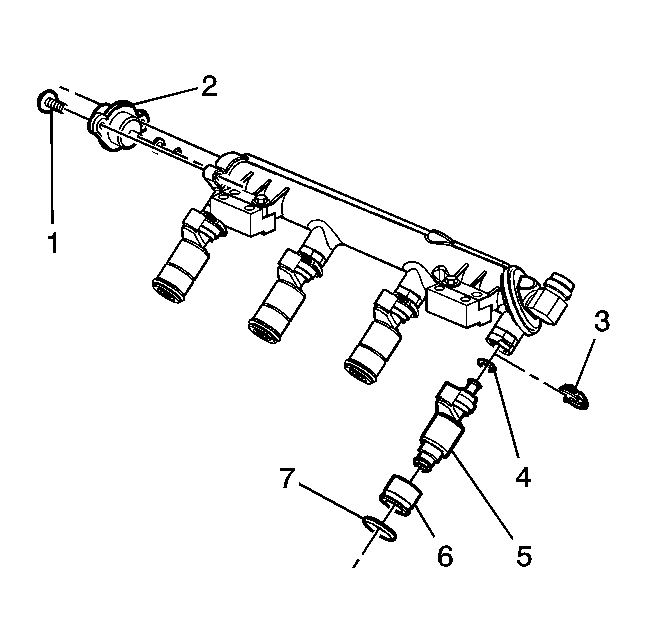

    5. Fig 1: Exploded View Of Fuel Rail Assembly
    GM854298Courtesy of GENERAL MOTORS CORP.
