Installation Procedure

Download the full database via torrent (~1.1 TB)
  1. Install the fuel tank pressure sensor to the fuel pump module assembly. Ensure that the sensor grommet is fully seated to the pump module.

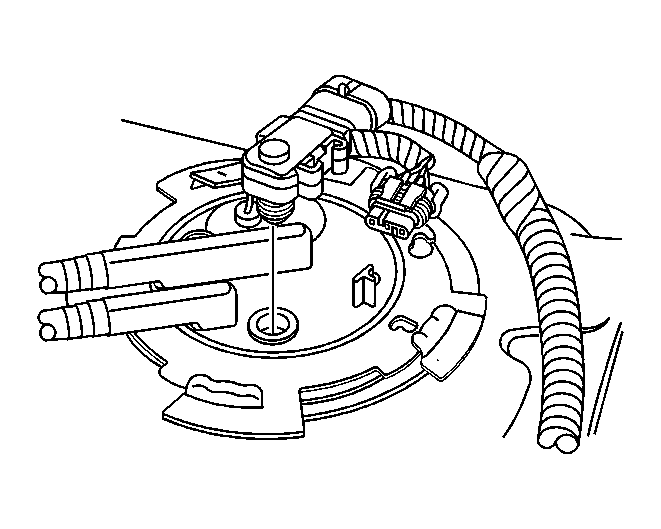

    2. Fig 1: View Of Fuel Tank Pressure Sensor
    GM889971Courtesy of GENERAL MOTORS CORP.
  2. Connect the pump module electrical connector to the fuel tank pressure sensor.
    3. Fig 2: View Of Fuel Pump Module And Fuel Tank Pressure Sensor Electrical Connectors
    GM889969Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
