Installation Procedure

Download the full database via torrent (~1.1 TB)
  1. Use the retaining tab to secure the PCM, when installing the PCM to the underhood junction block bracket.
  2. Connect the PCM harness connectors to the PCM.

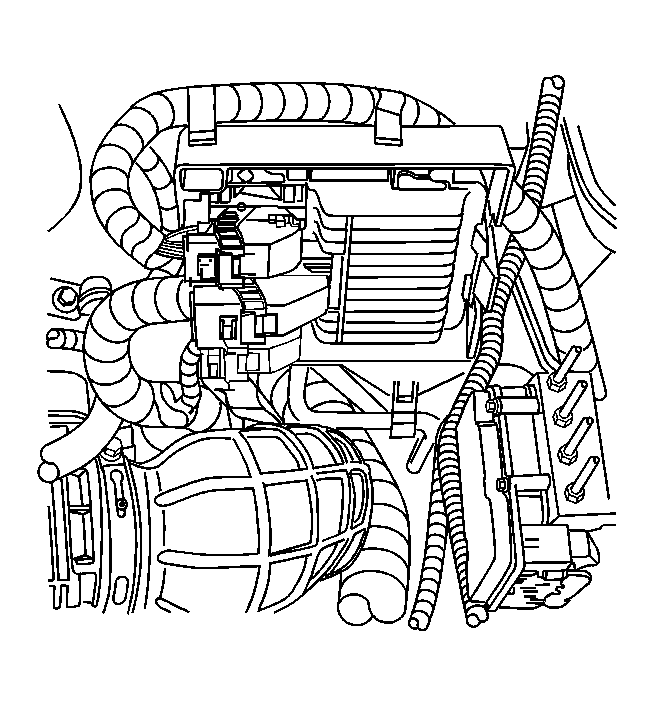

    3. Fig 1: View Of PCM
    GM1381712Courtesy of GENERAL MOTORS CORP.
  3. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  4. Program the PCM. Refer to Control Module References in Computer/Integrating Systems.
