Connector Views
Engine Control Module Connector End Views

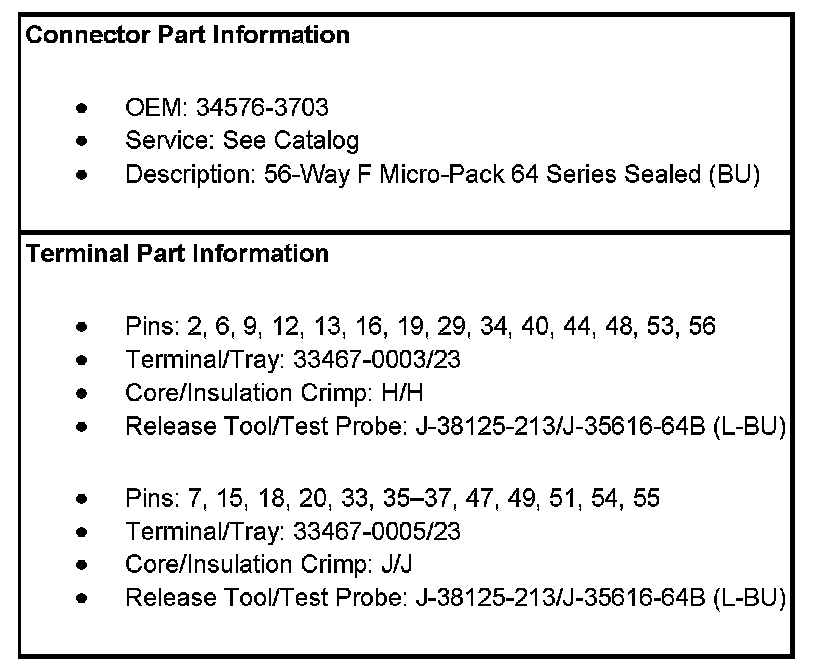

Engine Control Module (ECM) C1

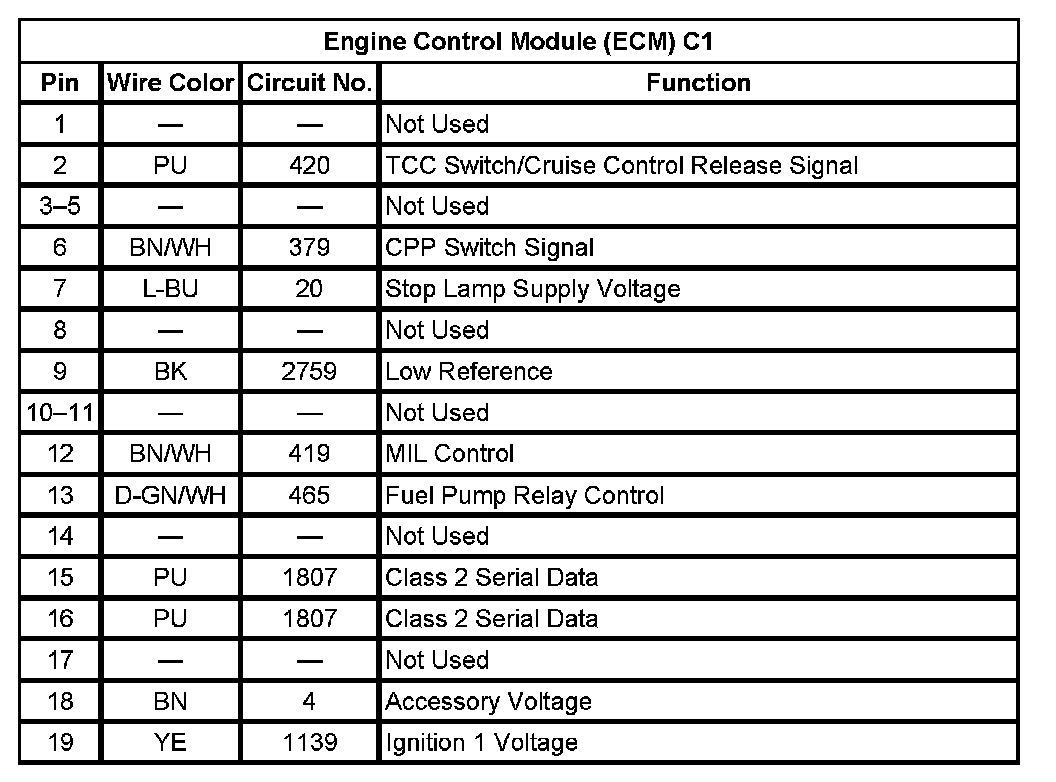

Engine Control Module (ECM) C1 (Pin 1 To 19):

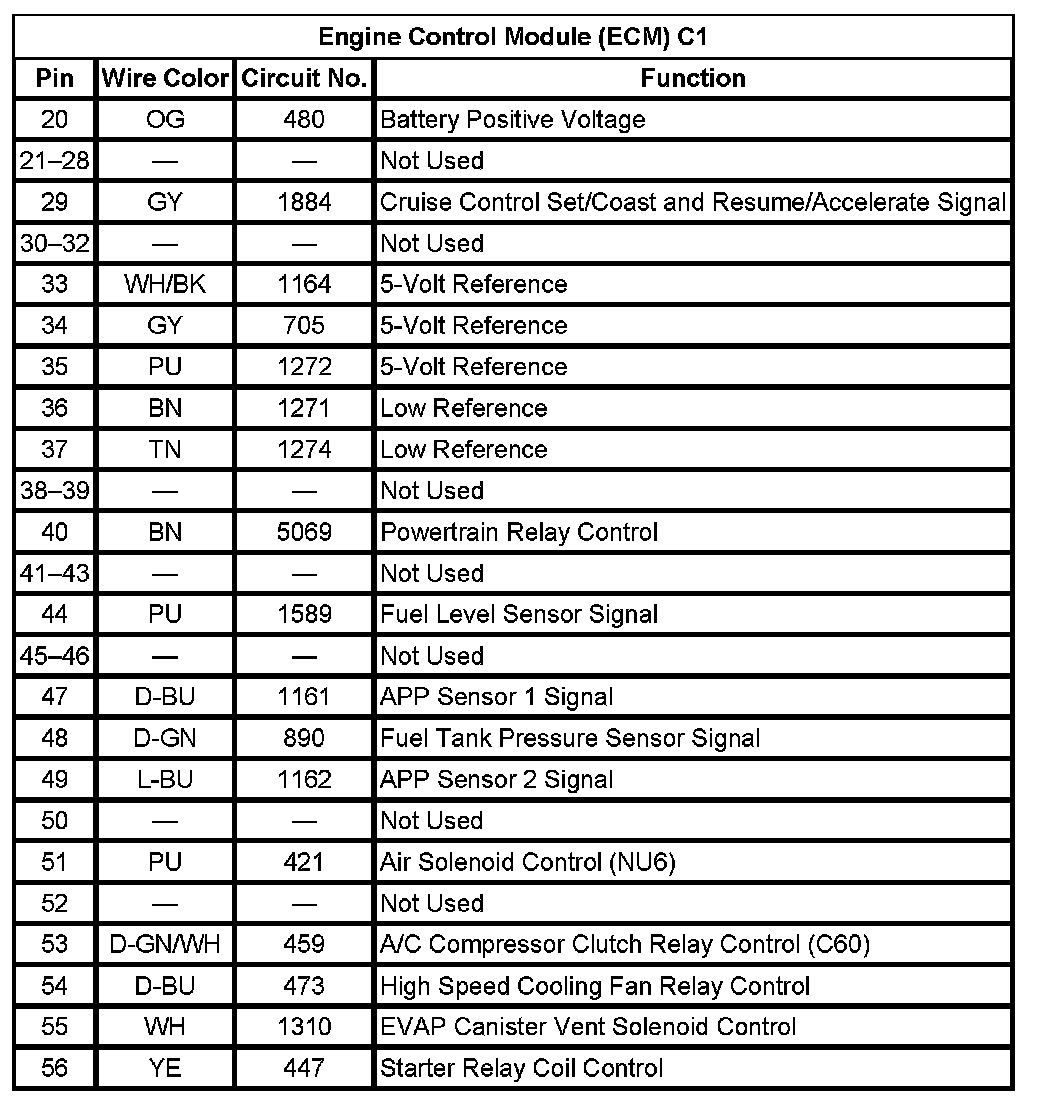

Engine Control Module (ECM) C1 (Pin 21 To 56):

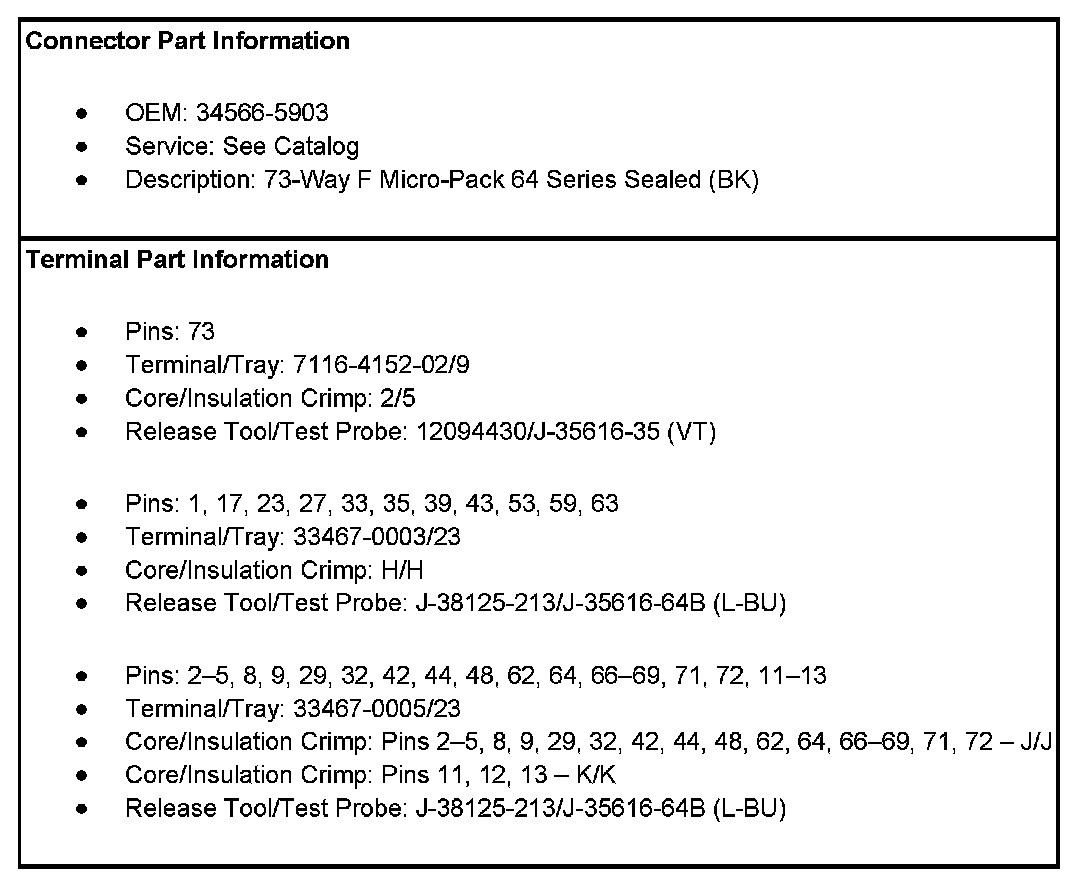

Engine Control Module (ECM) C2

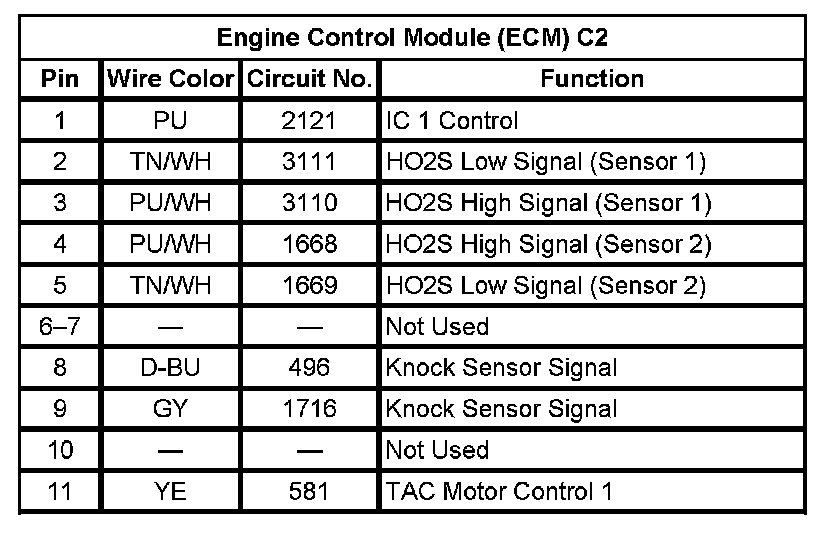

Engine Control Module (ECM) C2 (Pin 1 To 11):

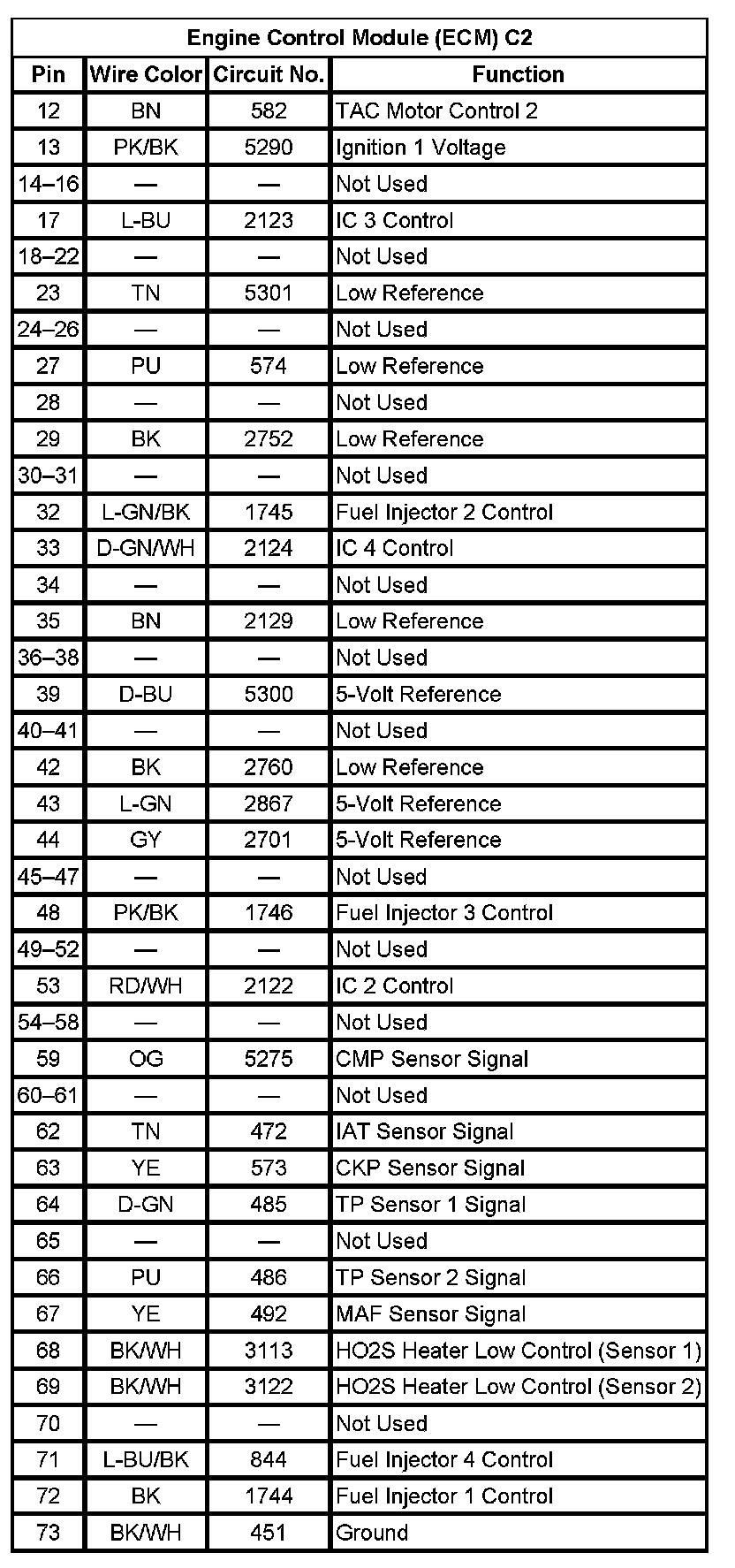

Engine Control Module (ECM) C2 (Pin 12 To 73):

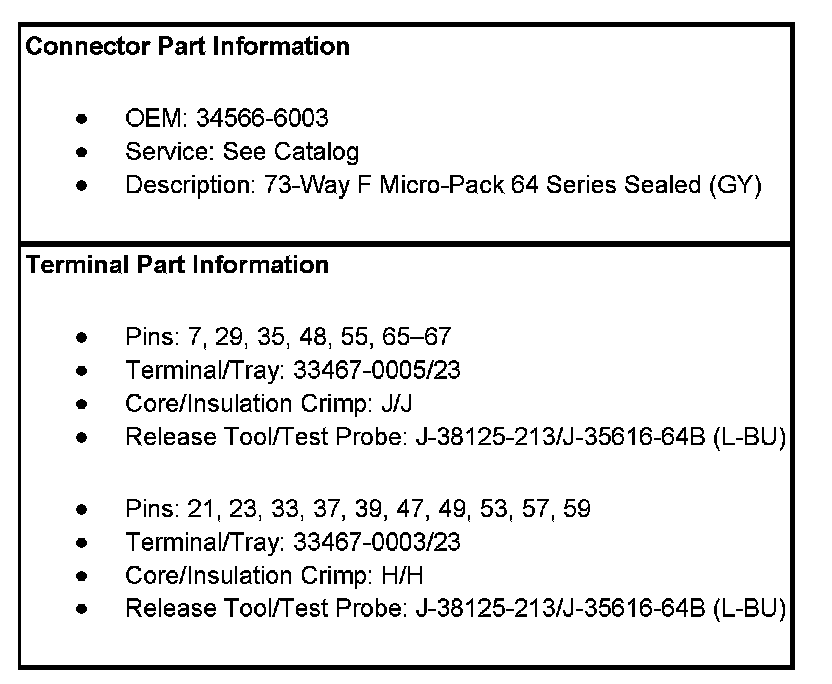

Engine Control Module (ECM) C3

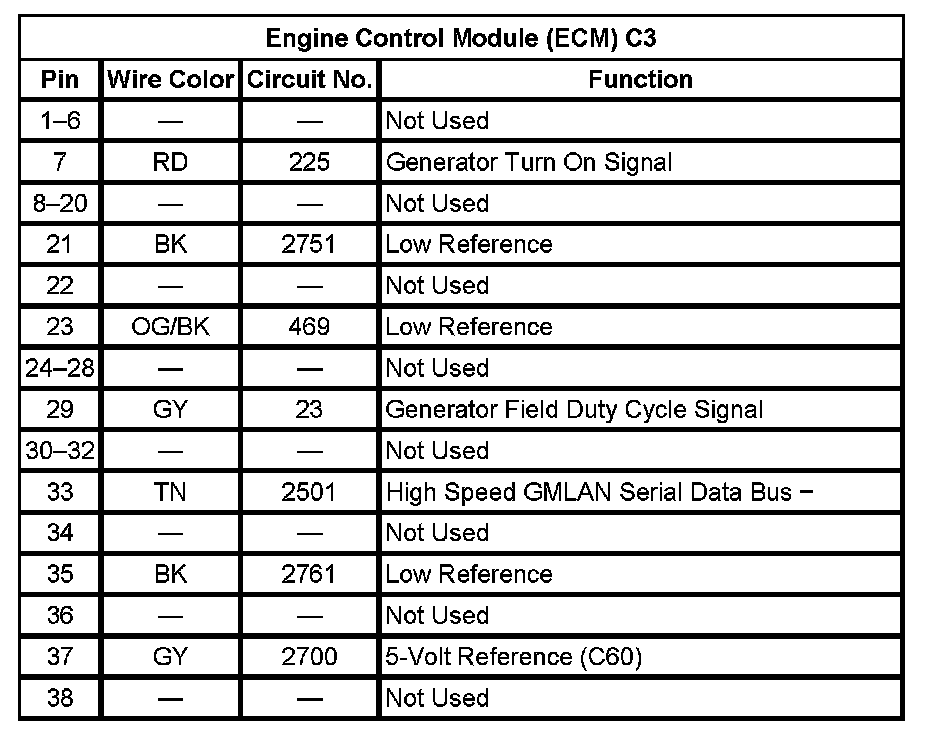

Engine Control Module (ECM) C3 (Pin 1 To 38):

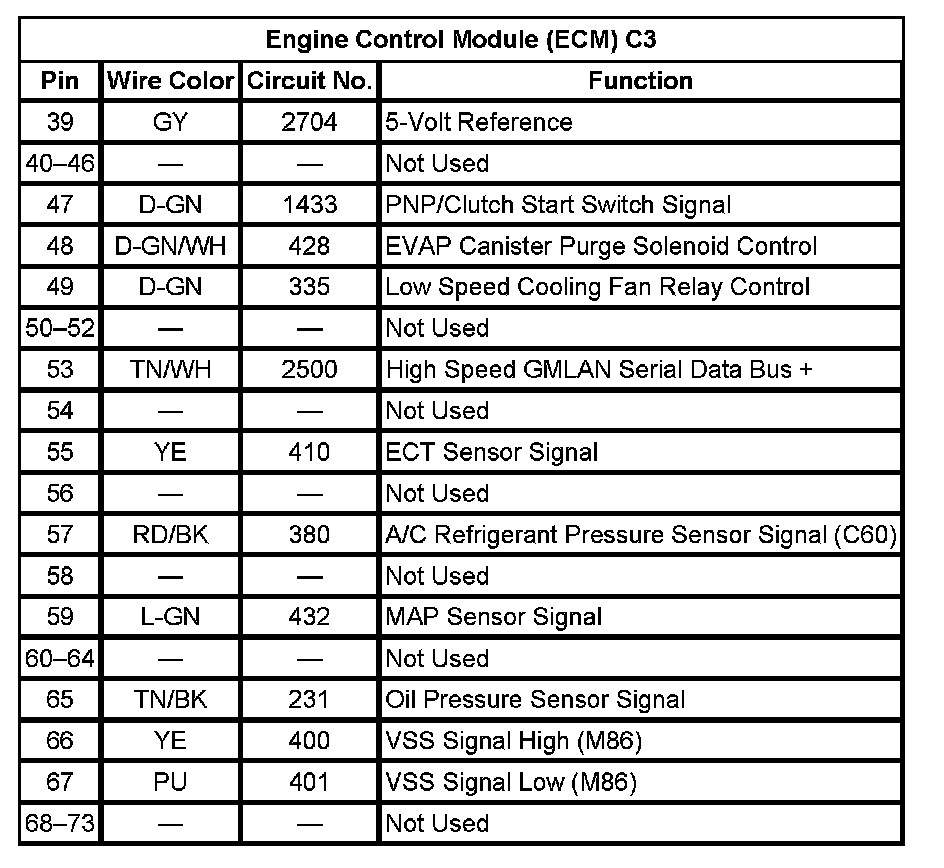

Engine Control Module (ECM) C3 (Pin 39 To 73):
