Central Control Module

Download the full database via torrent (~1.1 TB)


Entertainment/Communication Connector End Views

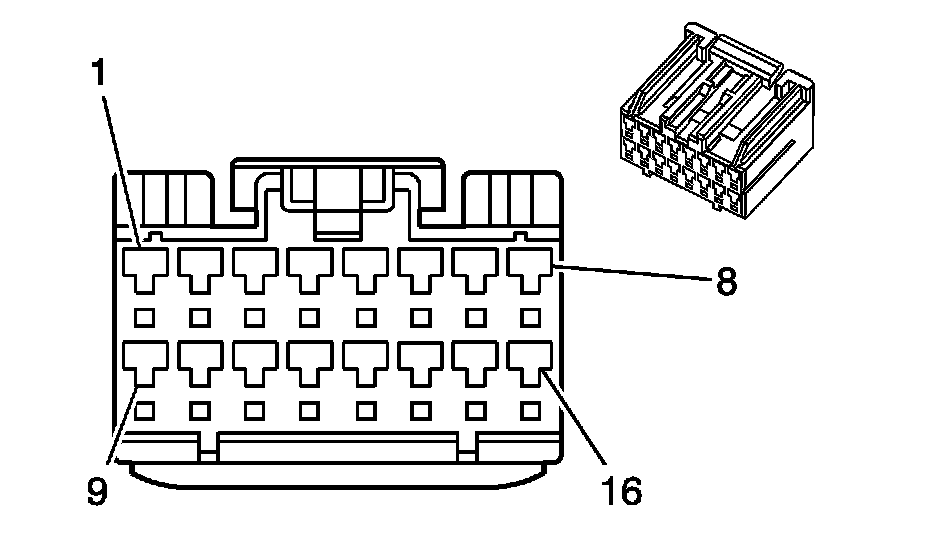

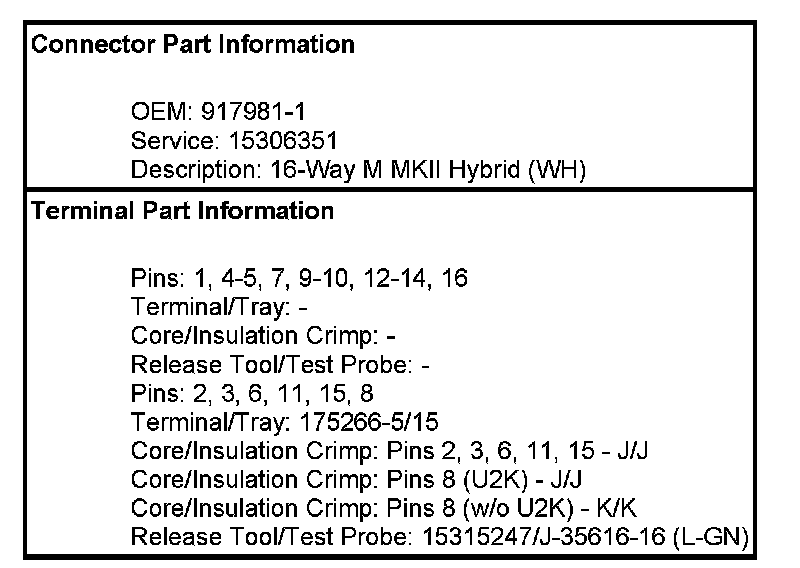

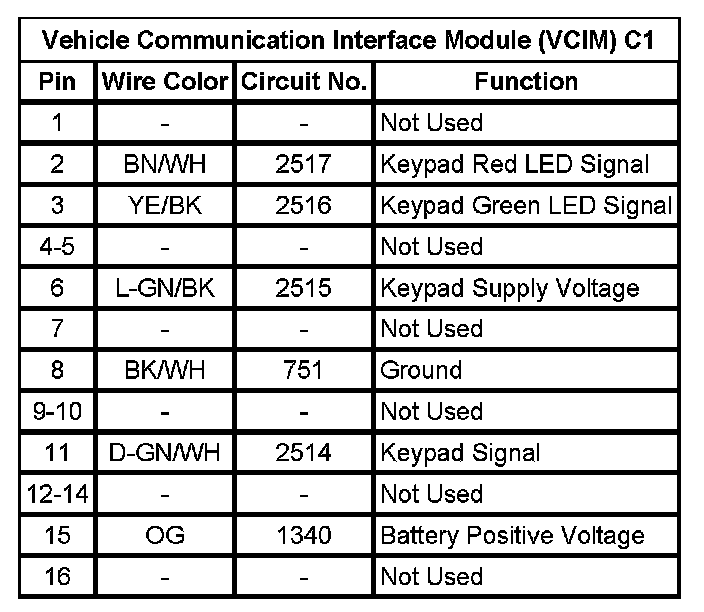

Vehicle Communication Interface Module (VCIM) C1

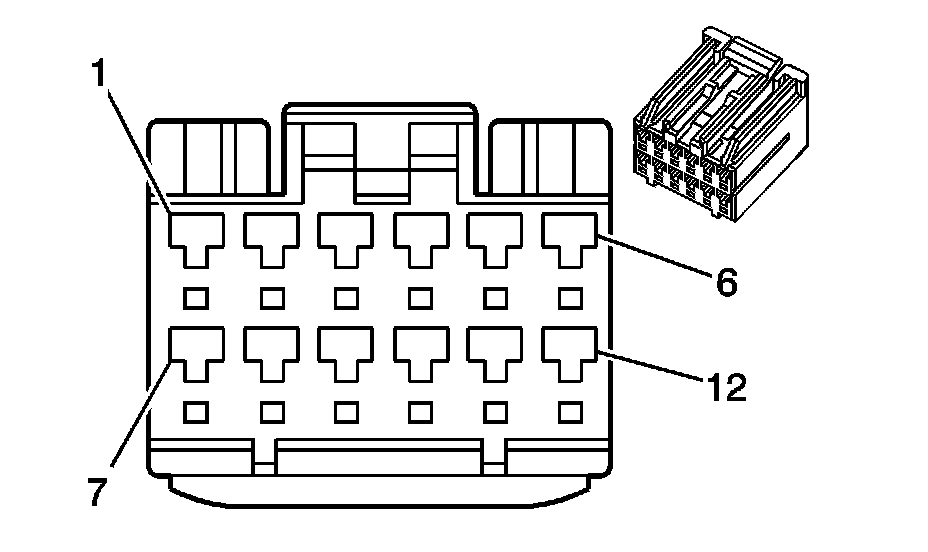

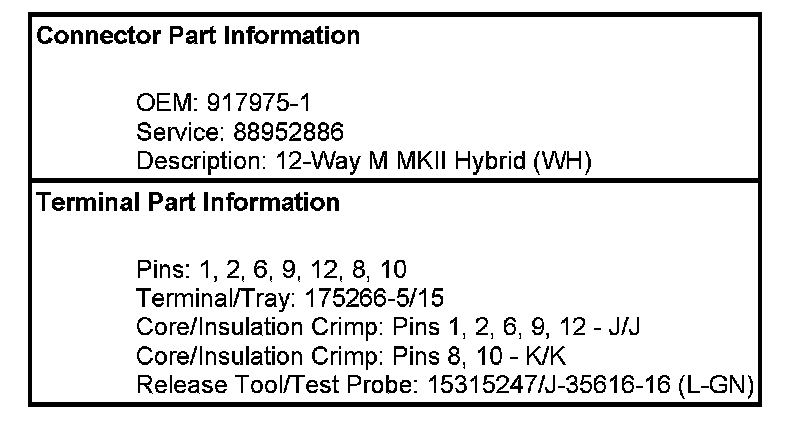

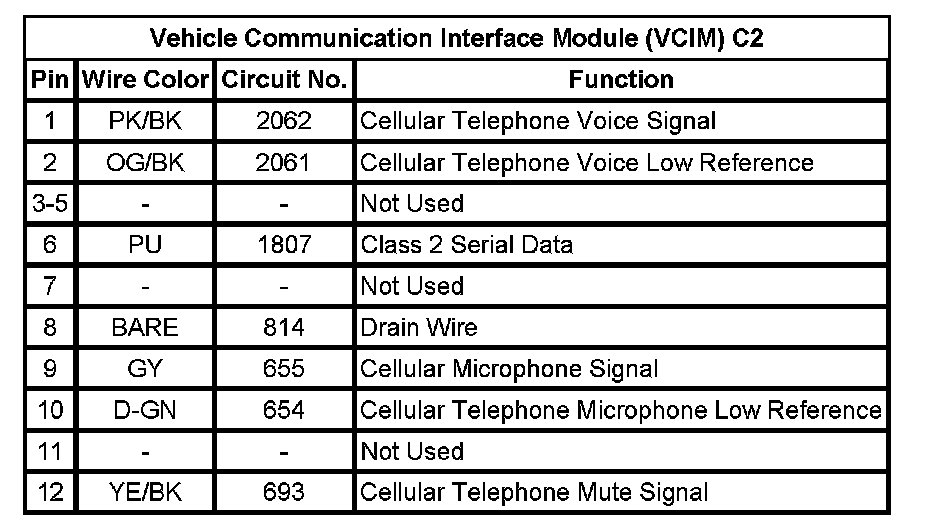

Vehicle Communication Interface Module (VCIM) C2
