Engine Control Module
Engine Control Module Connector End Views

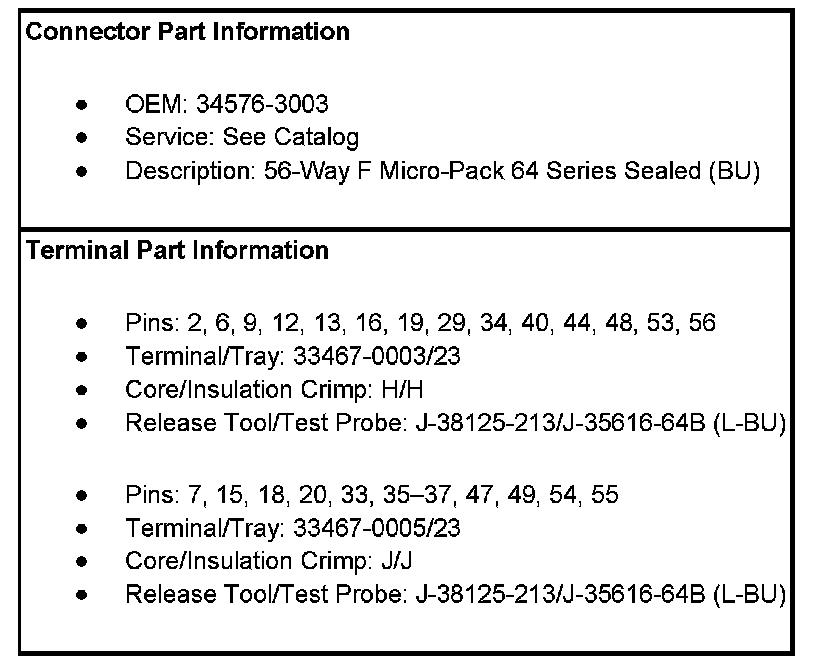

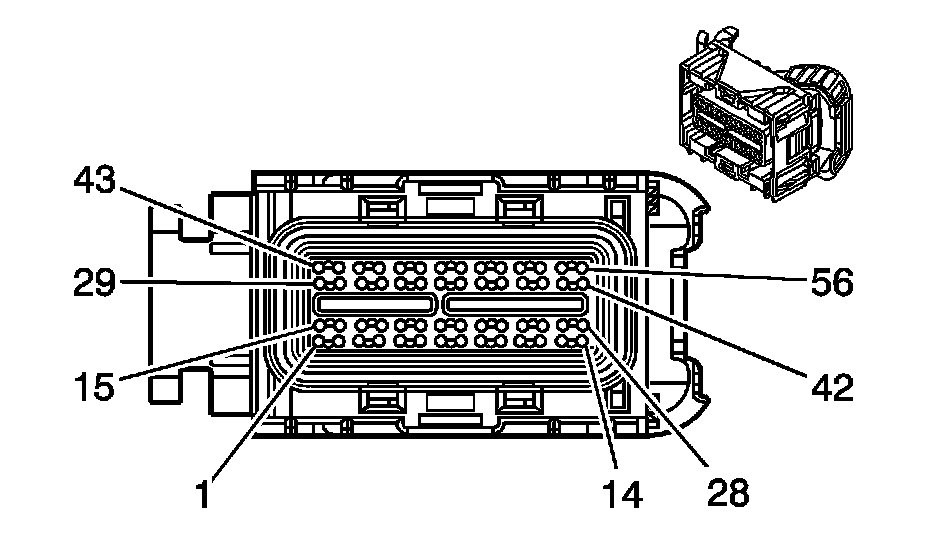

Engine Control Module (ECM) C1
Engine Control Module (ECM) C1 (Pin 1 To 19):

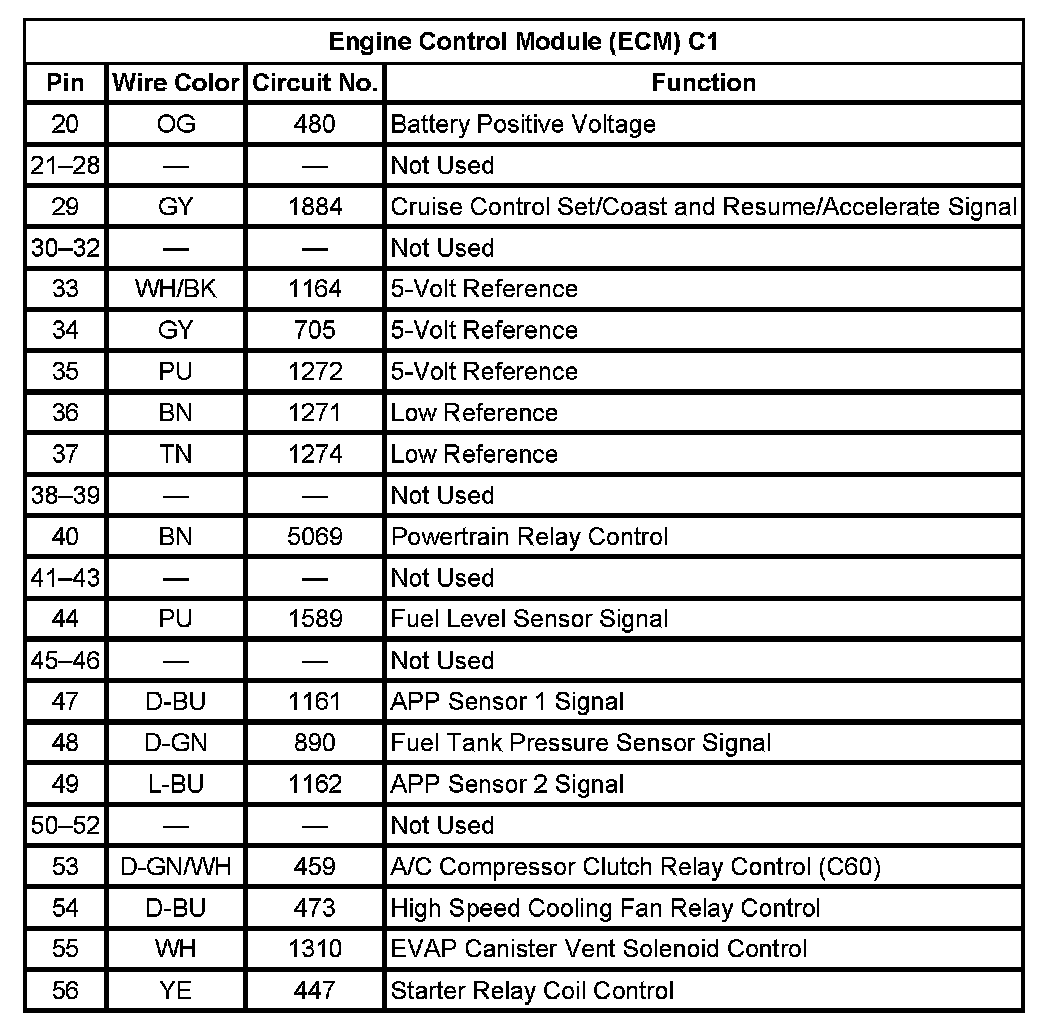

Engine Control Module (ECM) C1 (Pin 20 To 56):

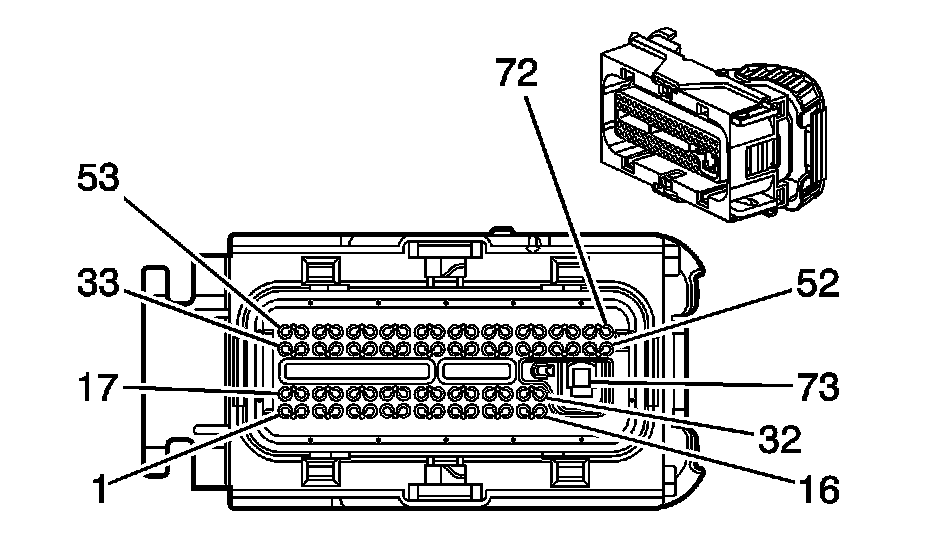

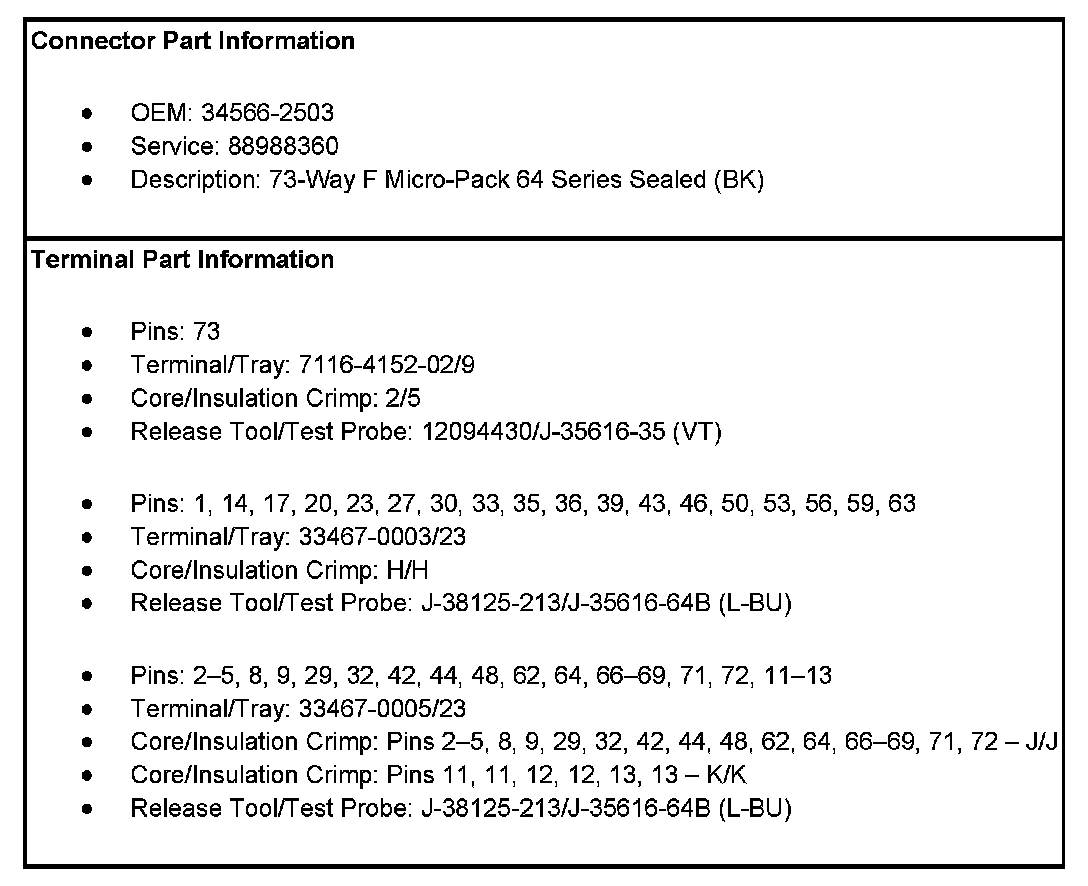

Engine Control Module (ECM) C2

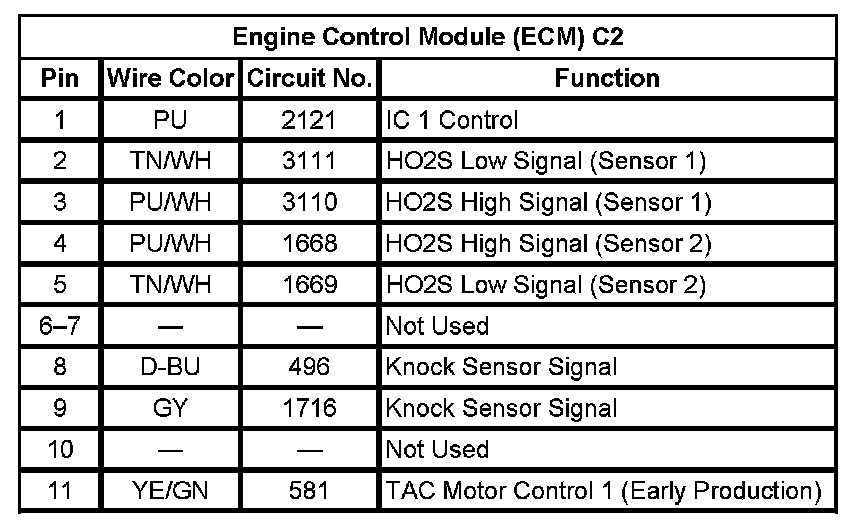

Engine Control Module (ECM) C2 (Pin 1 To 11):

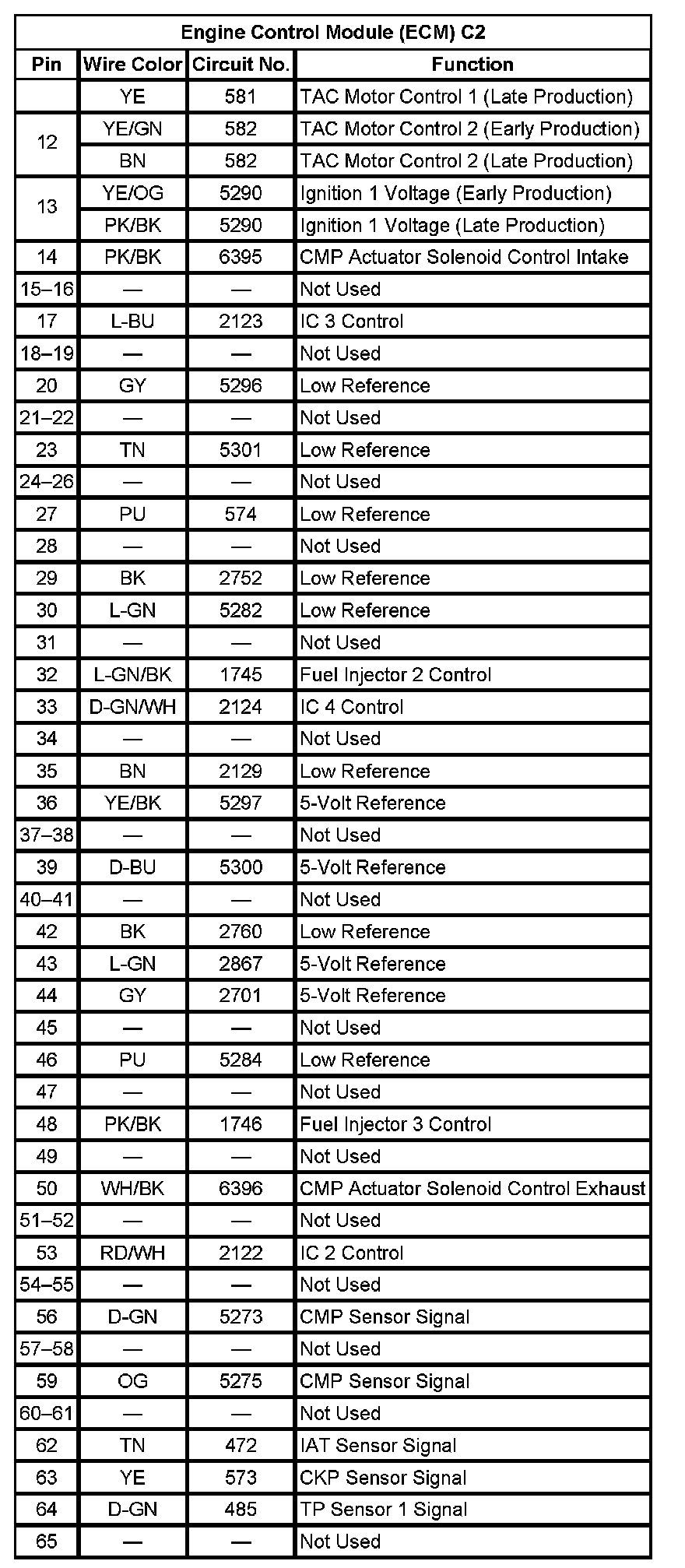

Engine Control Module (ECM) C2 (Pin 12 To 65):

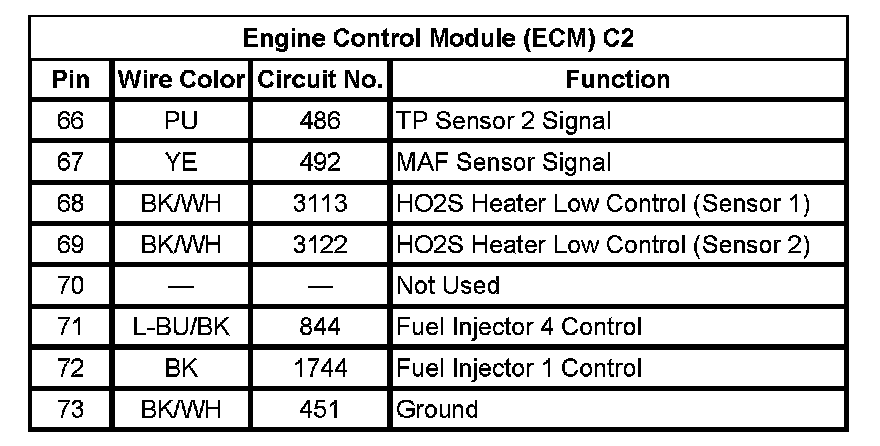

Engine Control Module (ECM) C2 (Pin 66 To 73):

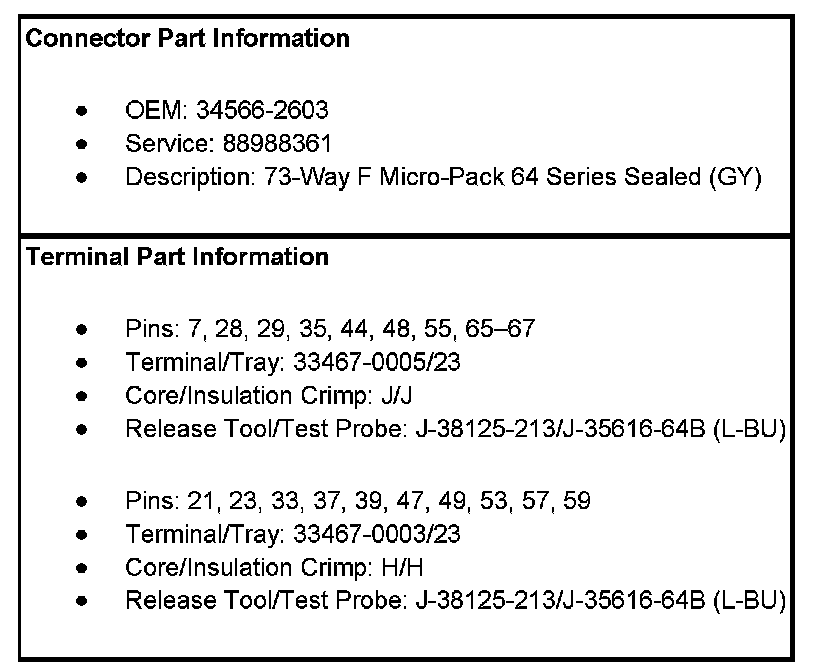

Engine Control Module (ECM) C3

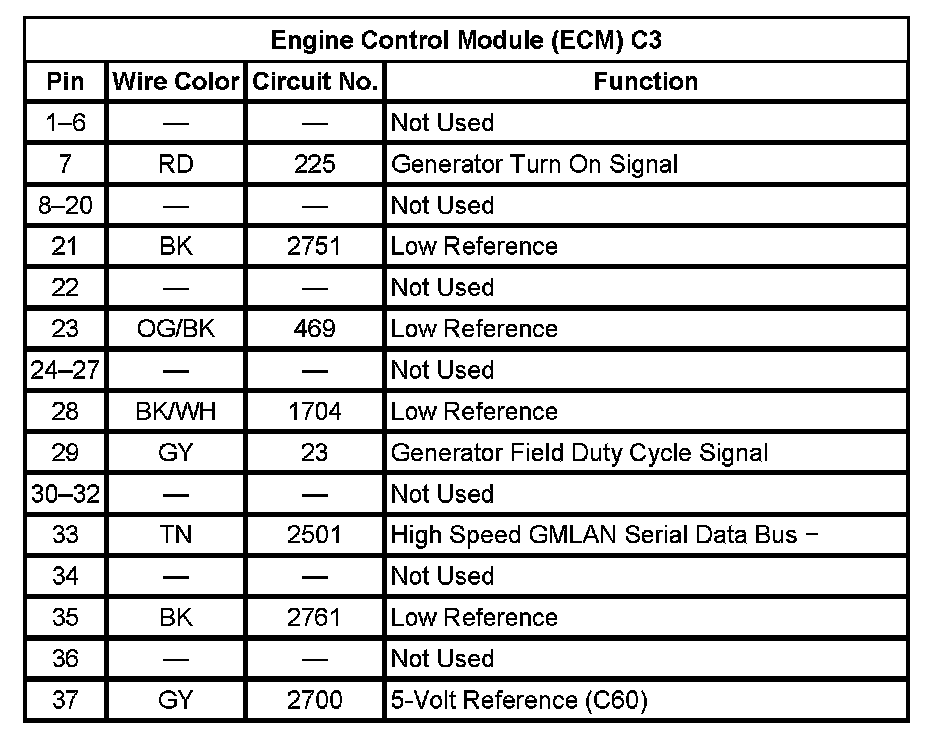

Engine Control Module (ECM) C3 (Pin 1 To 37):

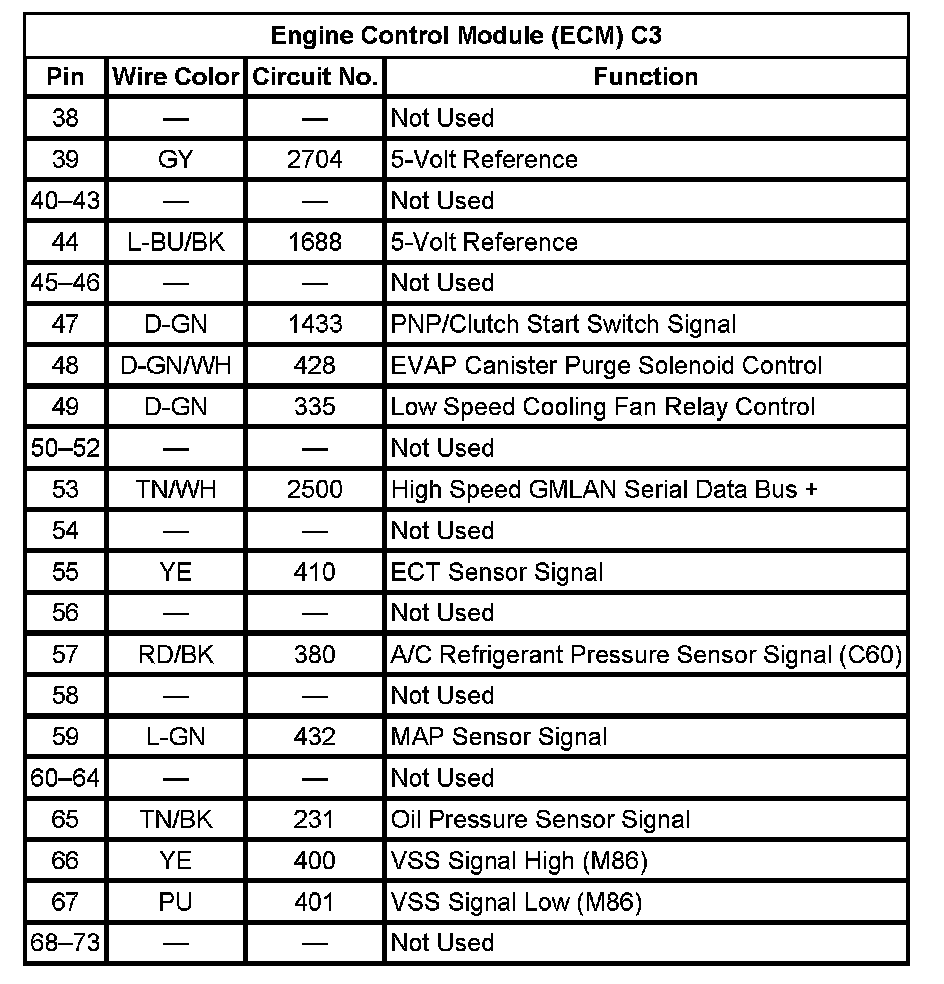

Engine Control Module (ECM) C3 (Pin 38 To 73):
