xA Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Fuel Injector ASSY
>>
Components
Fuel Injector ASSY: Components
Download the full database via torrent (~1.1 TB)

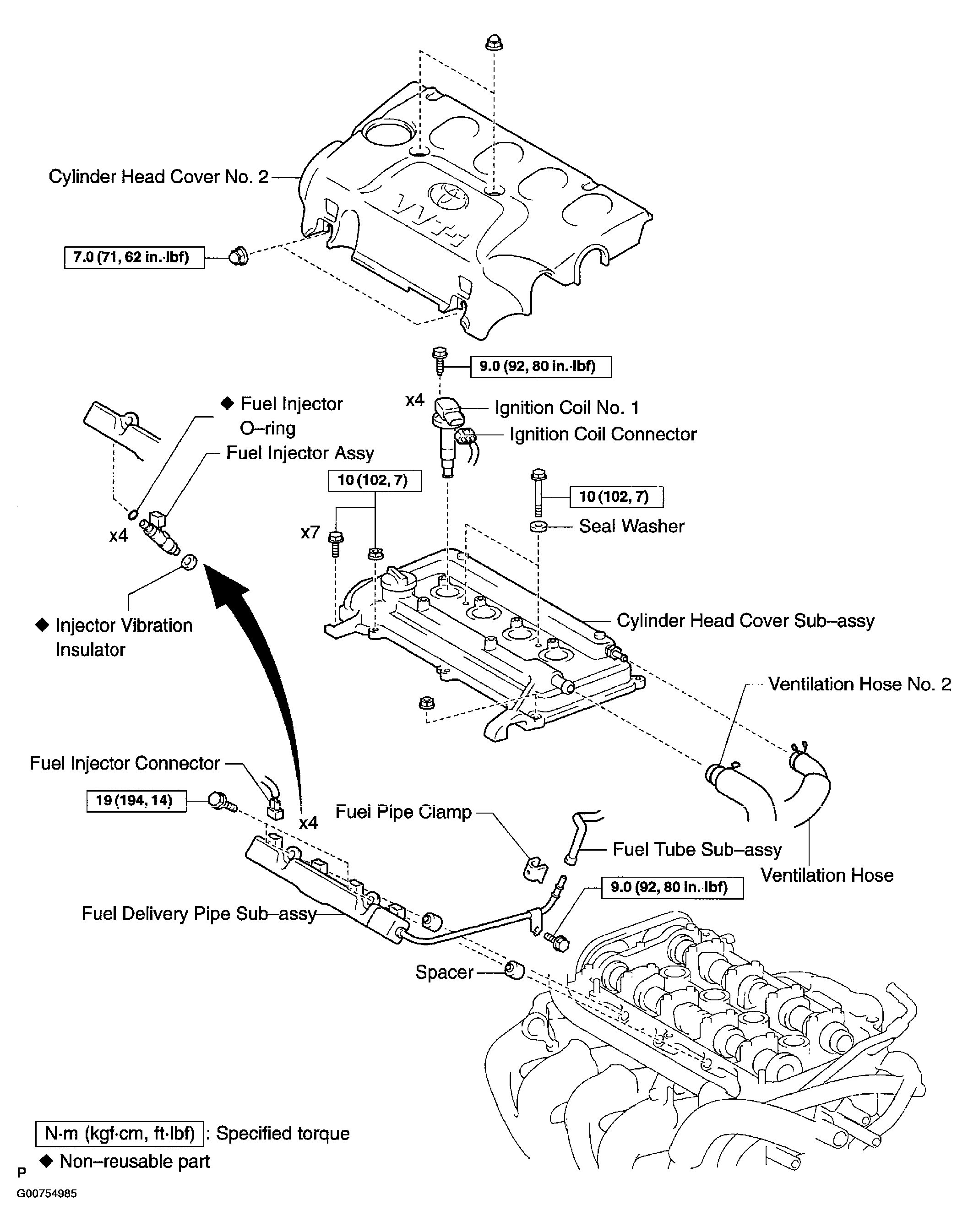

Fig 1: Dissembled View Of Fuel Injector Assembly
