Engine Performance
>>
System
>>
Emission Control
>>
Emission Control System
>>
Location
Emission Control System: Location
Download the full database via torrent (~1.1 TB)

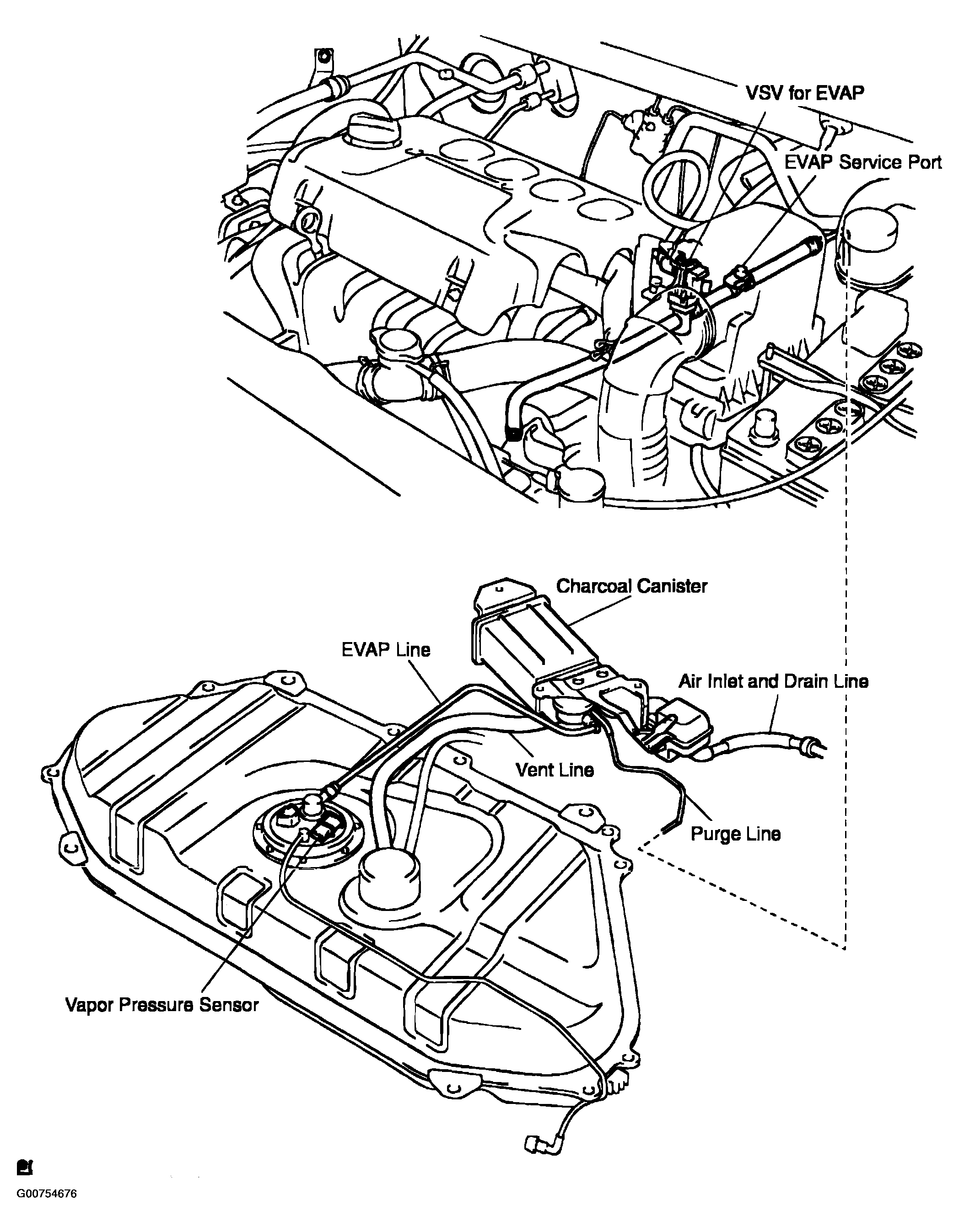

Fig 1: Locating Emission Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

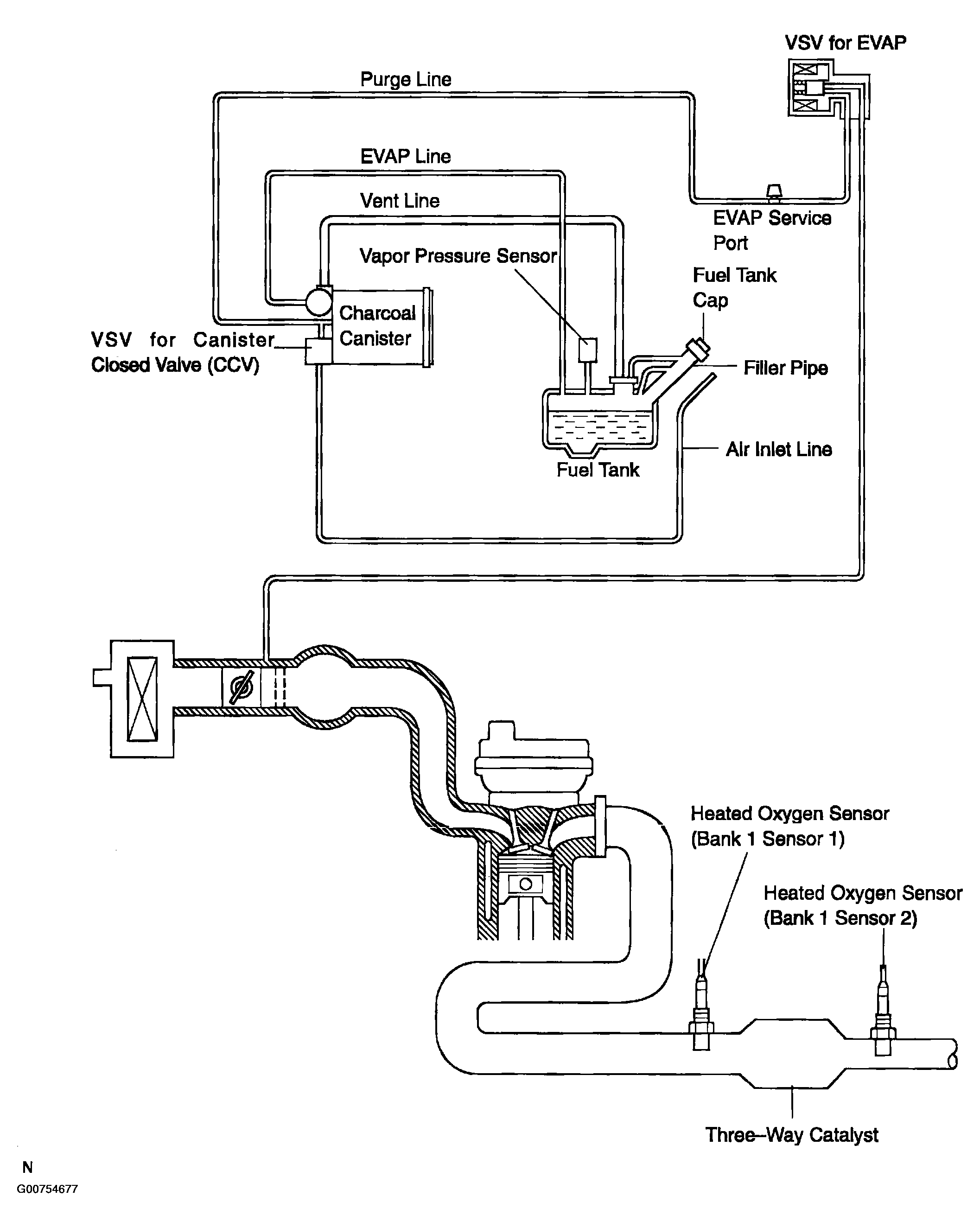

Fig 2: Emission Control System Line Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
