Engine Control System - Diagnosis: Location

Download the full database via torrent (~1.1 TB)

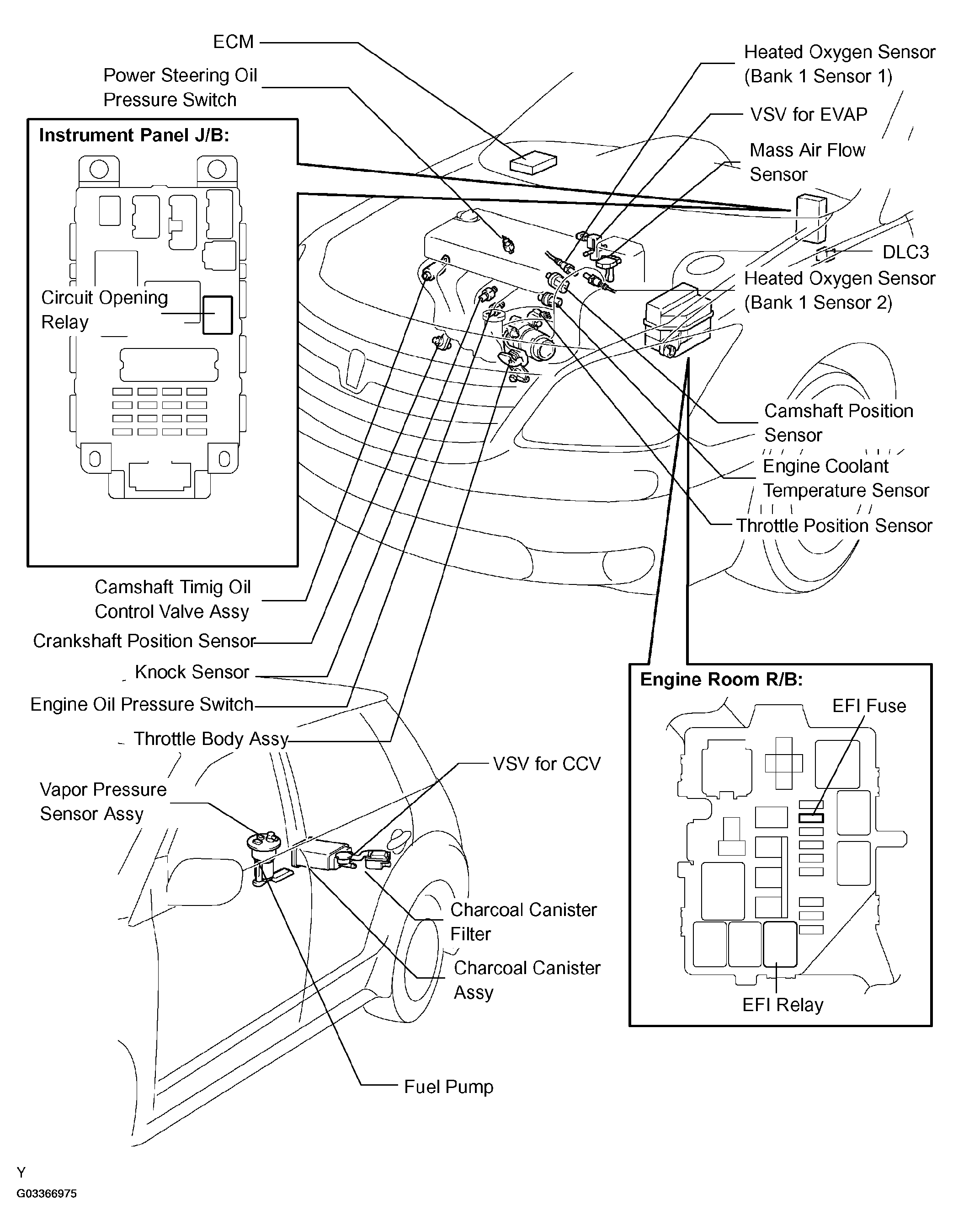

Fig 1: Locating SFI System Components

G03366975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
