Throttle Body ASSY
>>
Components
>>
Notes
Throttle Body ASSY: Components: Notes
Download the full database via torrent (~1.1 TB)

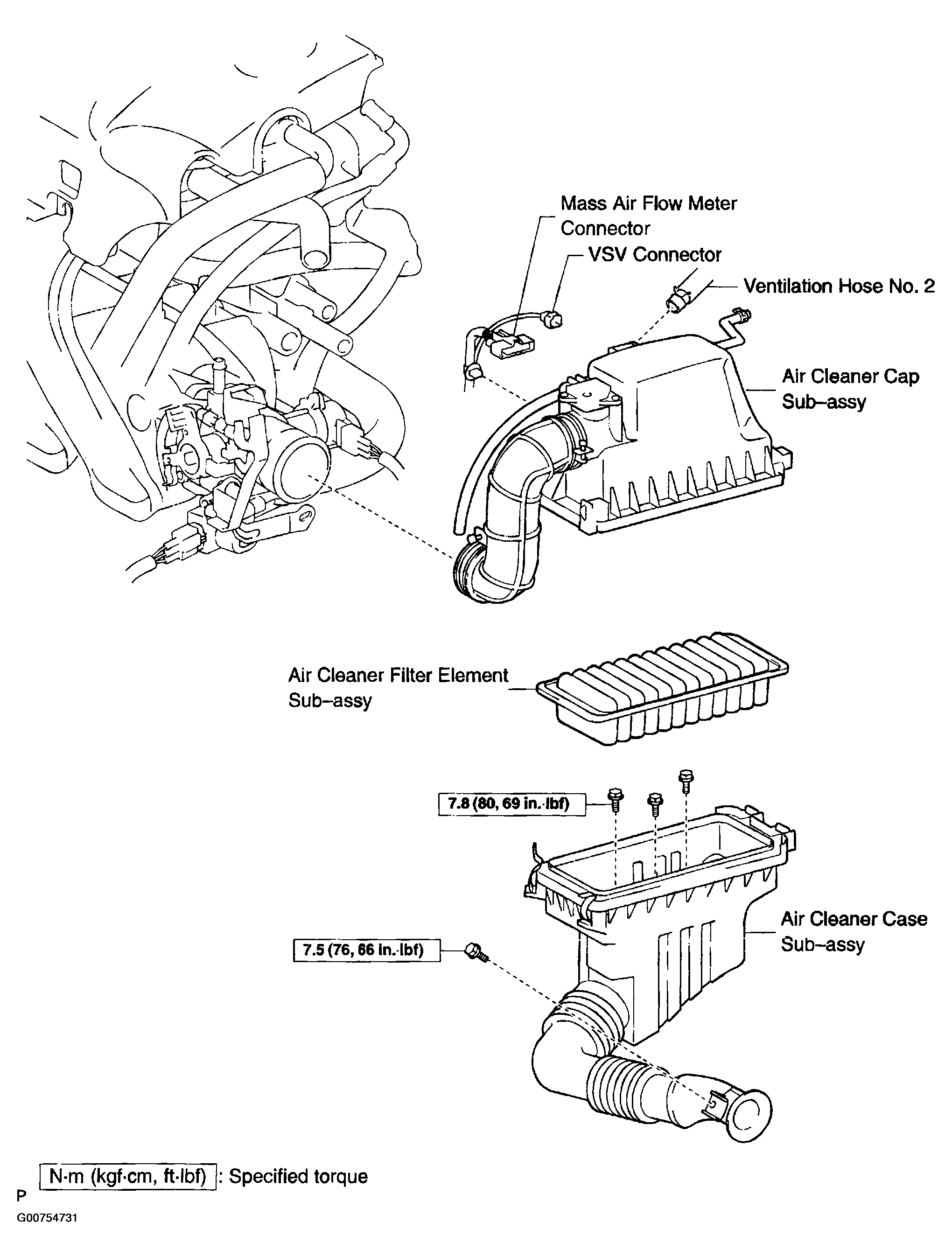

Fig 1: Locating Throttle Body Assembly Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

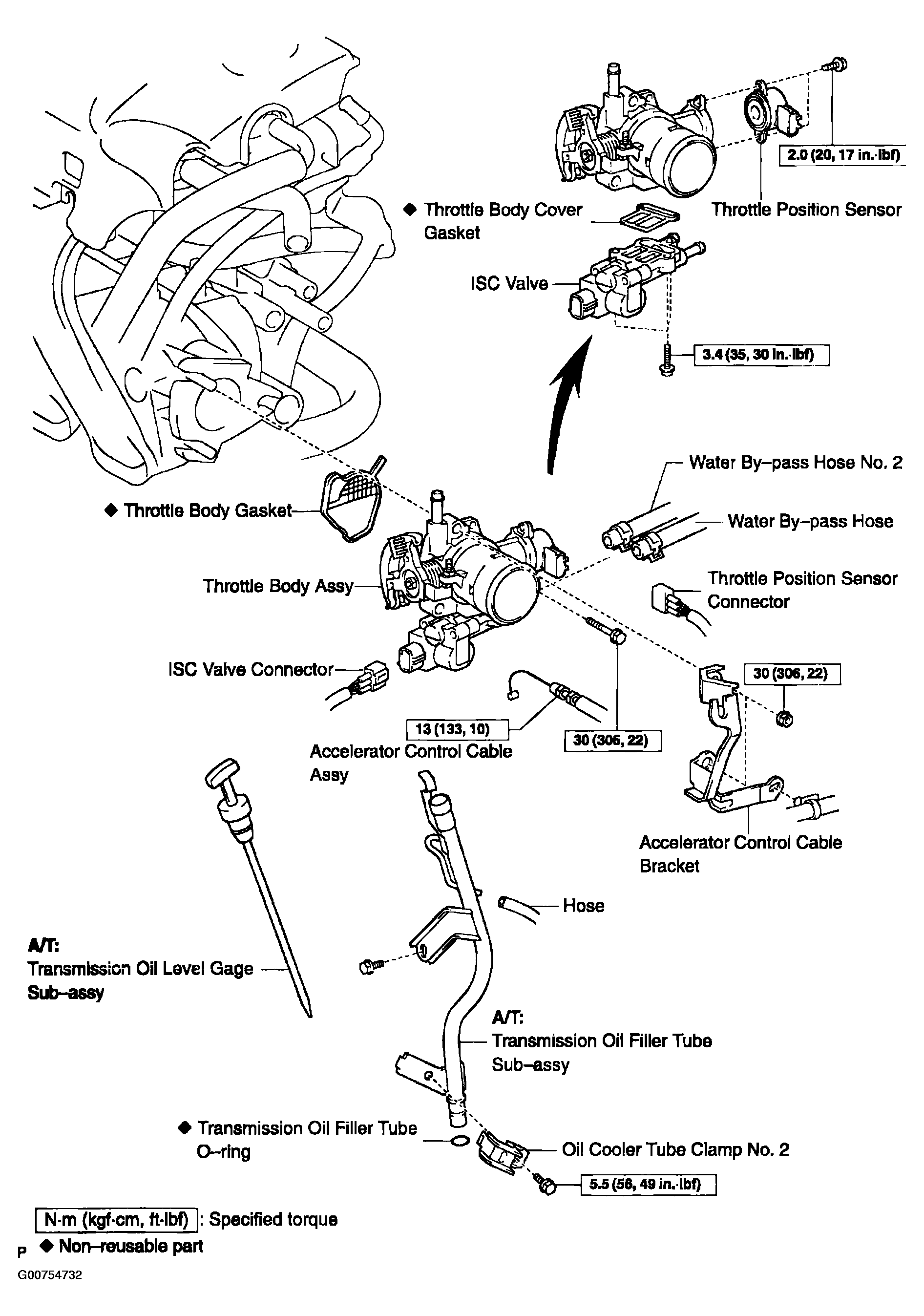

Fig 2: Locating Throttle Body Assembly Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
