CONTROL UNITS LOCATION
Component
Location

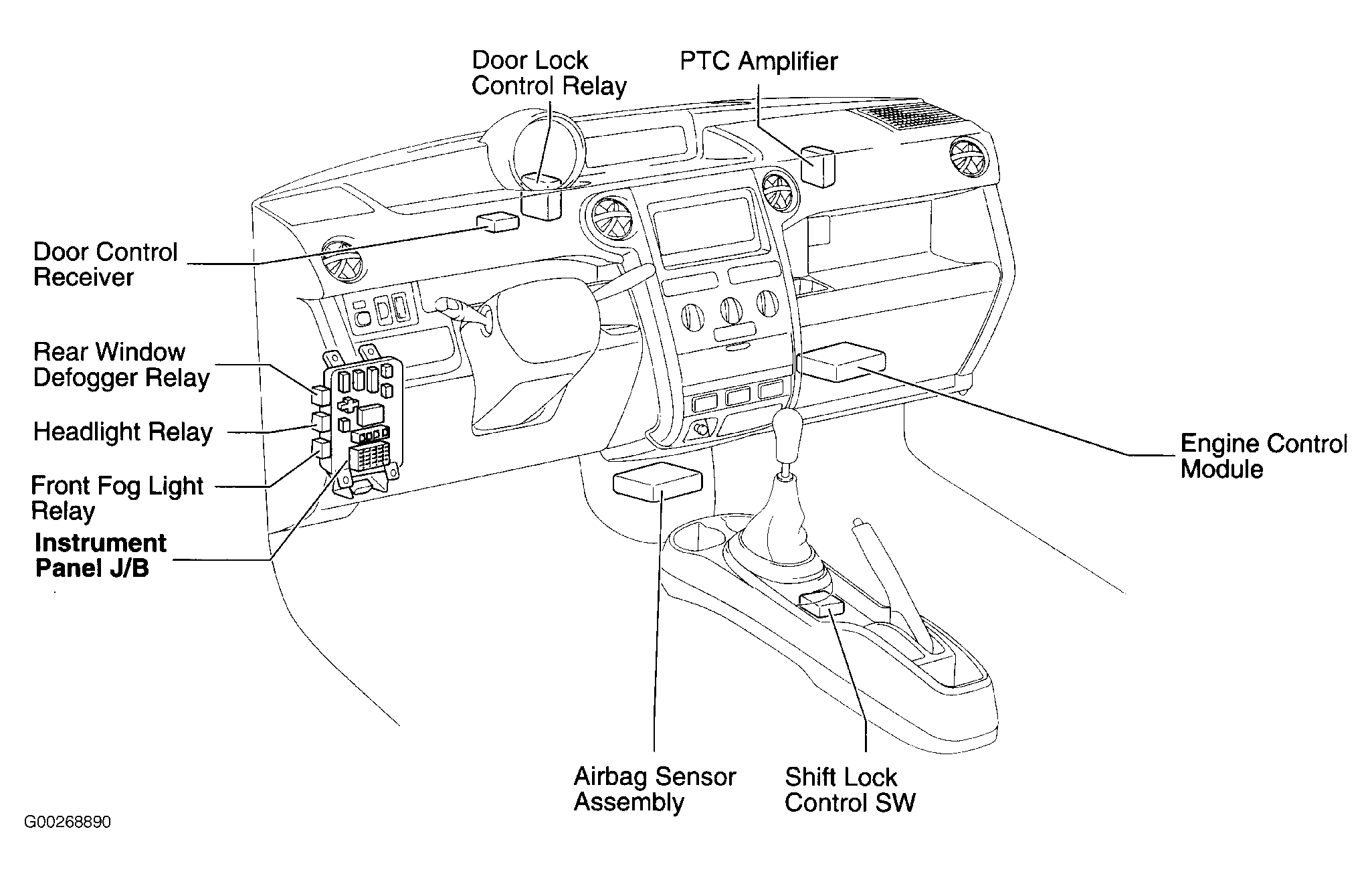

Engine Control Module
Behind lower right side of dash. See
Figure
.
PTC Amplifier
Behind upper right side of dash. See
Figure
.

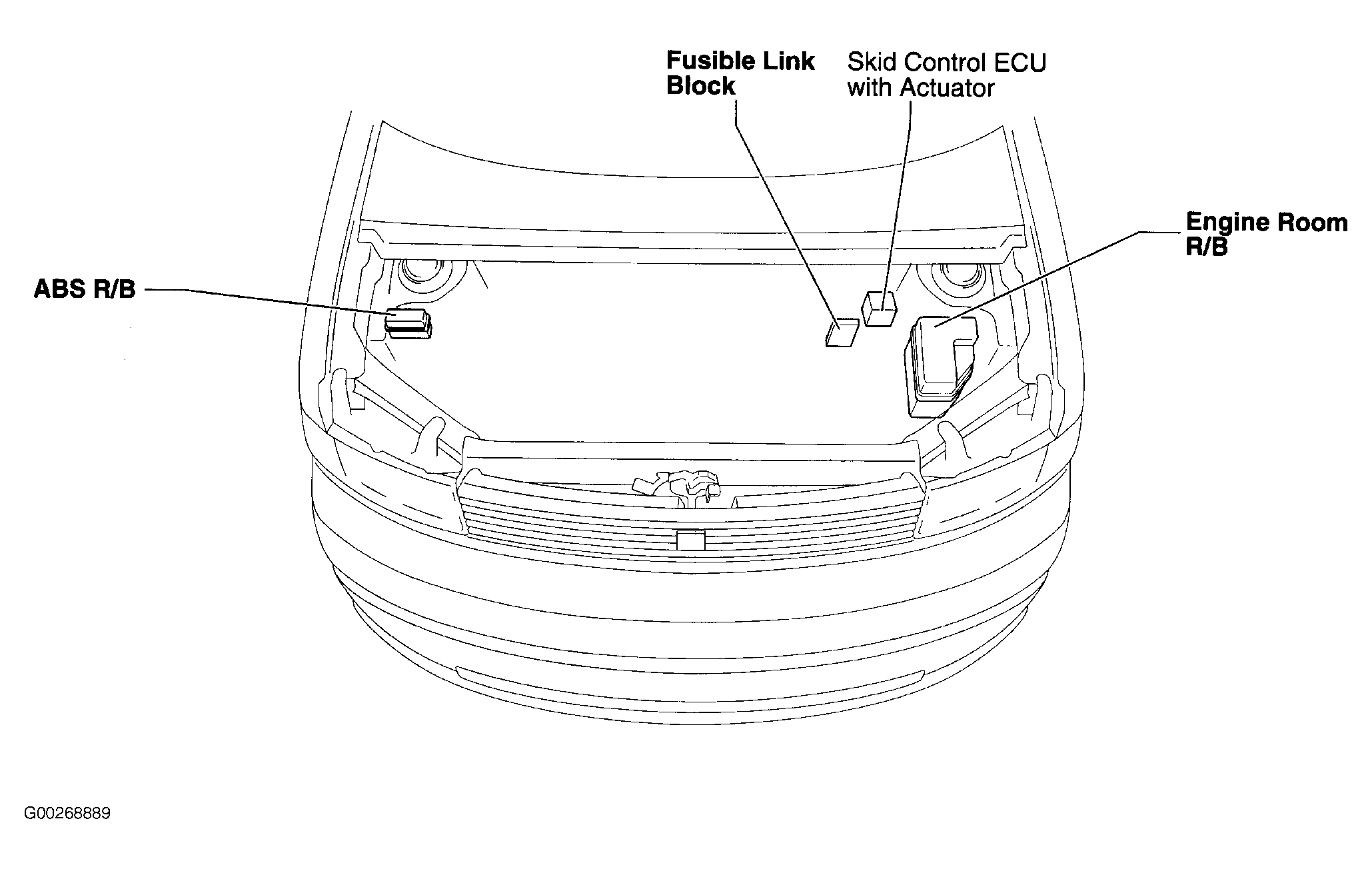

Skid Control ECU (W/ Actuator)
Left side of engine compartment. See
Figure
.
