Scion
>>
2005
>>
tC Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System
>>
Location
Power Window Control System: Location
Download the full database via torrent (~1.1 TB)

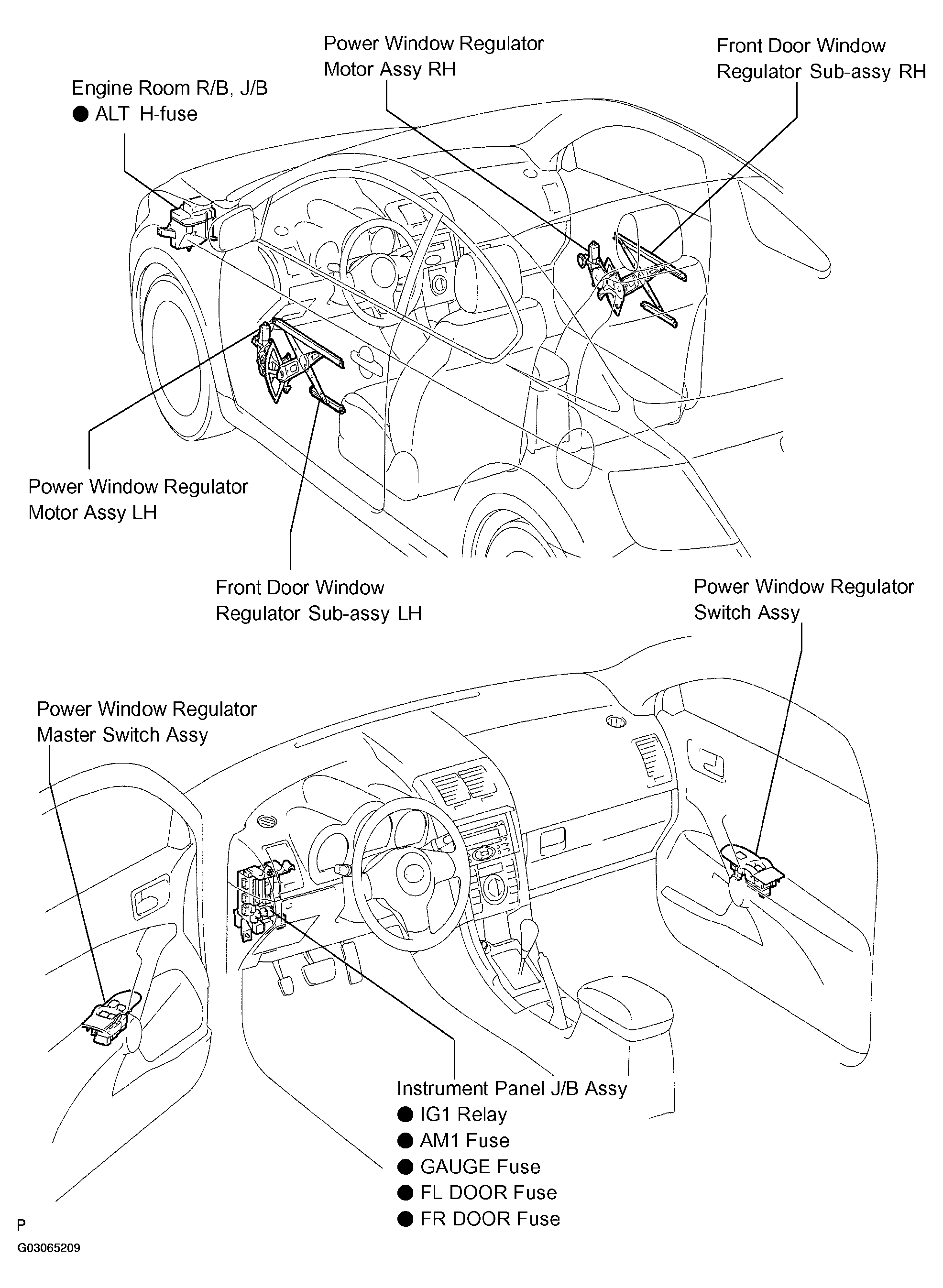

Fig 1: Identifying Power Window Control System Component Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
