Fuel Injector ASSY: Components
Download the full database via torrent (~1.1 TB)

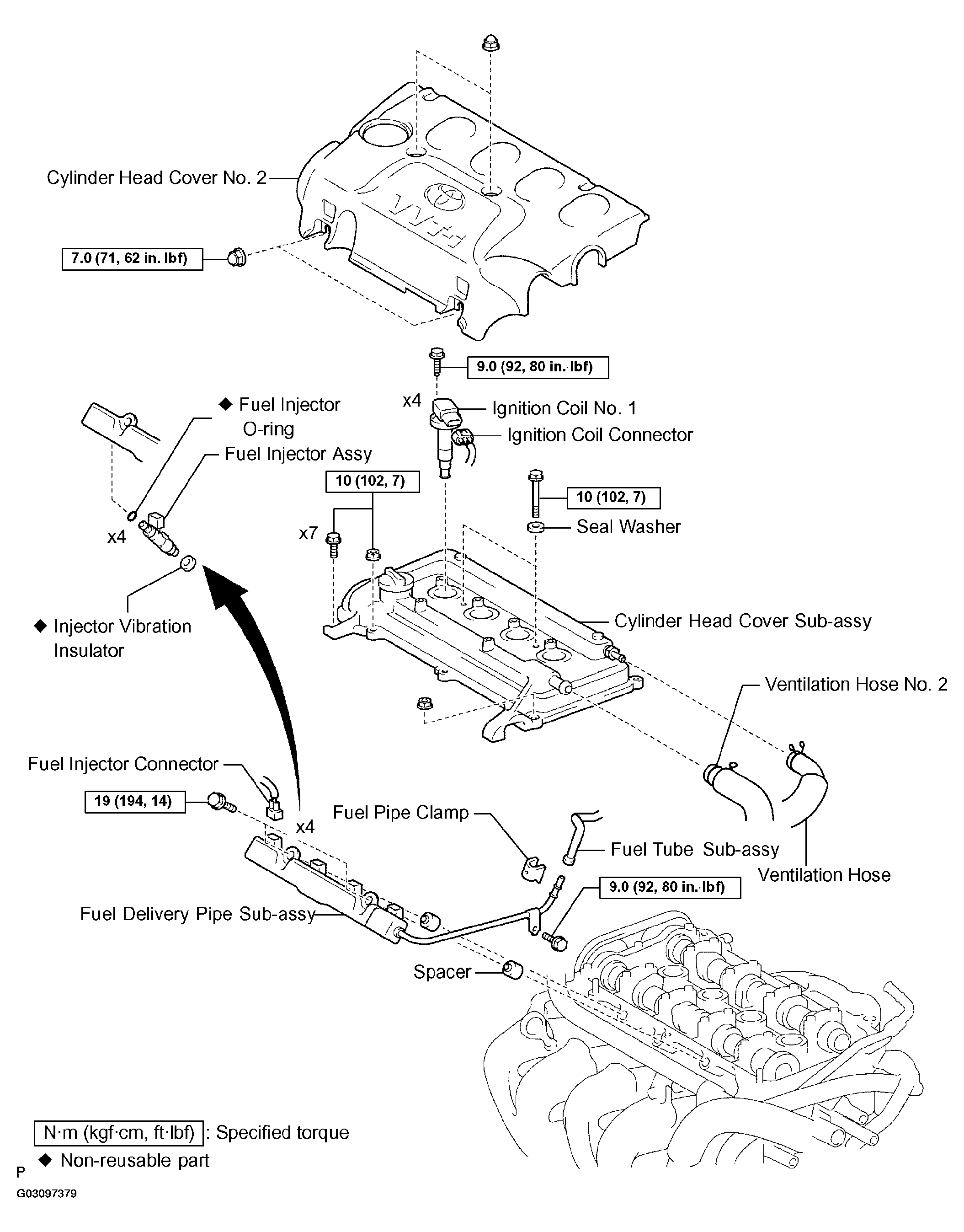

Fig 1: Identifying Fuel Injector Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
