Throttle Body: Components

Download the full database via torrent (~1.1 TB)

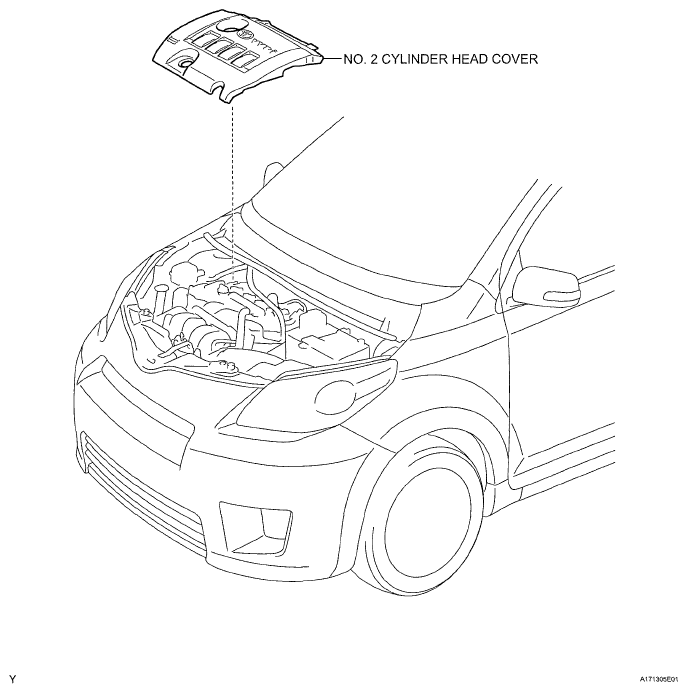

Fig 1: Identifying Throttle Body Components (1 Of 2)
G05398711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

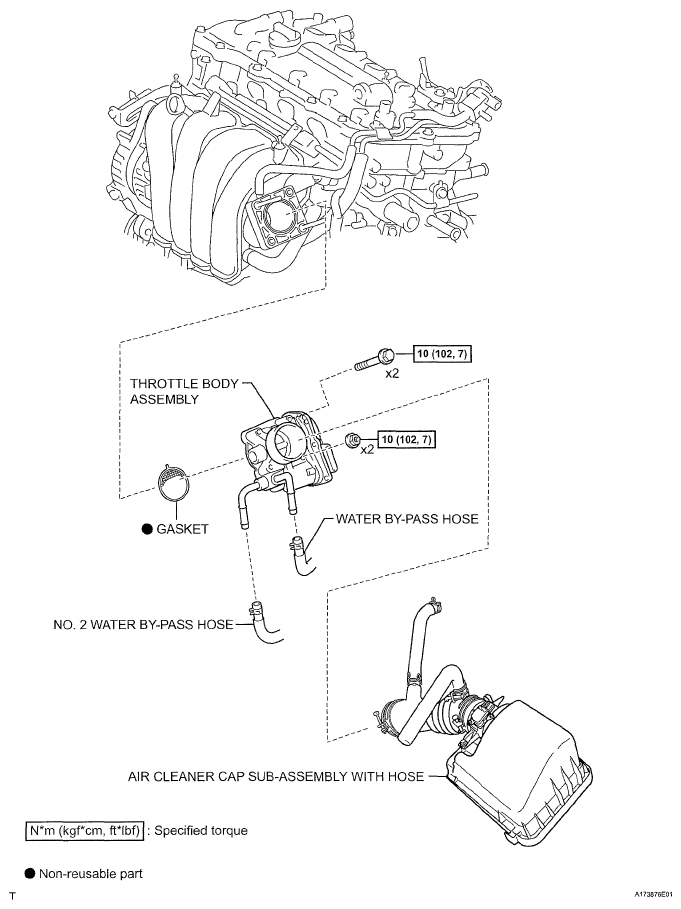

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
G05398726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
