Steering Column Assembly: Components

Download the full database via torrent (~1.1 TB)

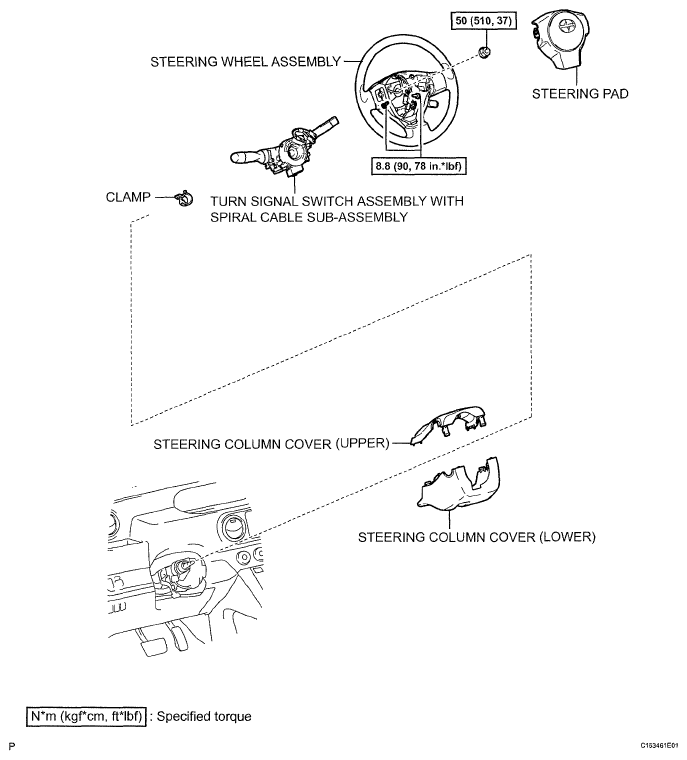

Fig 1: Identifying Steering Column Assembly Components And Tightening Torque (1 Of 4)
G05389762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

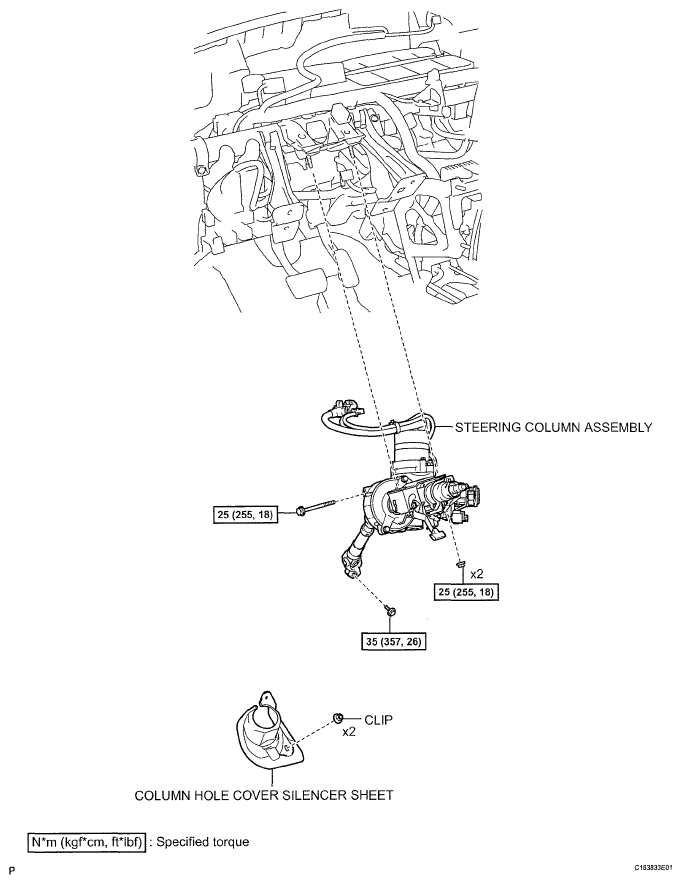

Fig 2: Identifying Steering Column Assembly Components And Tightening Torque (2 Of 4)
G05389763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

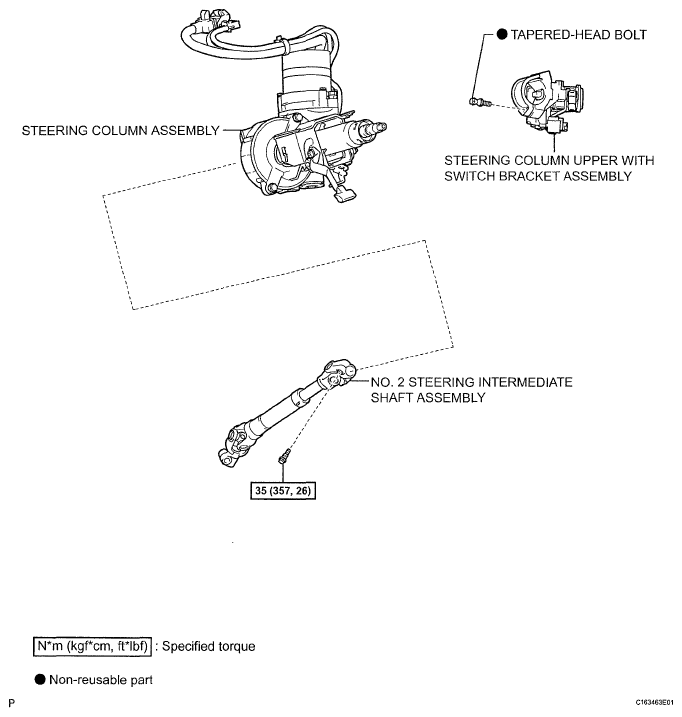

Fig 3: Identifying Steering Column Assembly Components And Tightening Torque (3 Of 4)
G05389764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

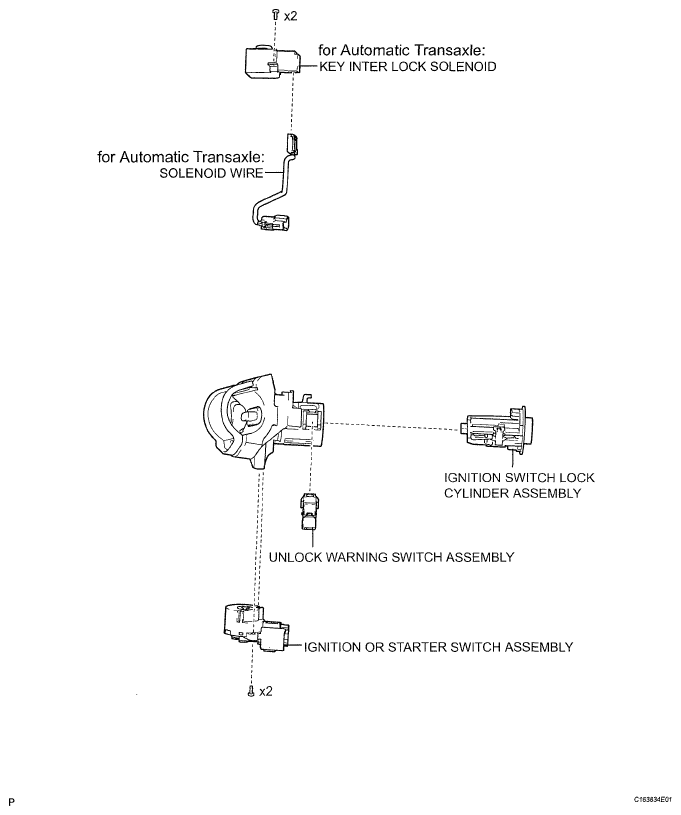

Fig 4: Identifying Steering Column Assembly Components (4 Of 4)
G05389765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
