Accelerator Pedal Rod: Components: Illustration

Download the full database via torrent (~1.1 TB)

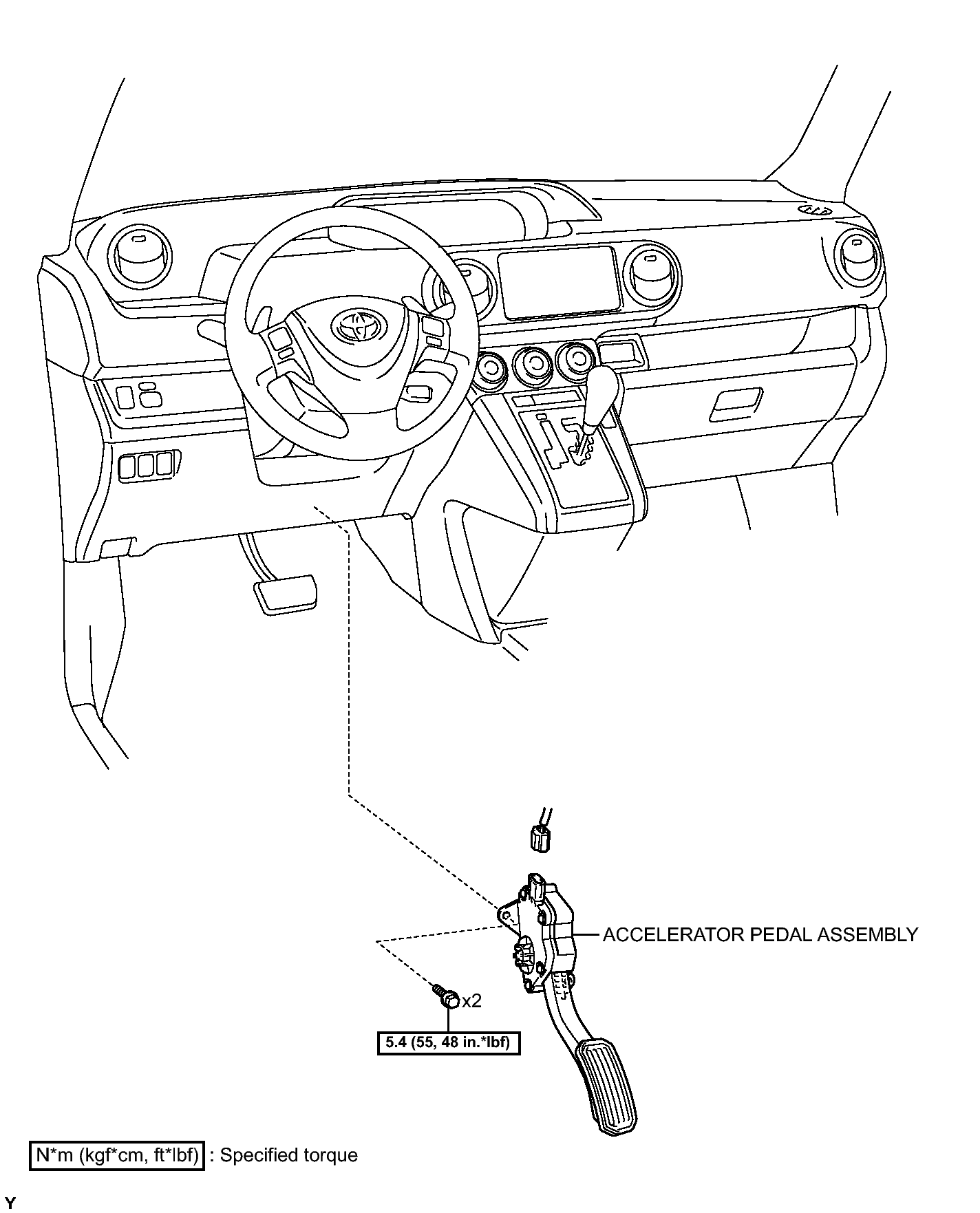

Fig 1: Identifying Accelerator Pedal Rod Replacement Components With Torque Specifications
GTY163830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
