Heated Oxygen Sensor: Components: Illustration

Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Heated Oxygen Sensor Replacement Components (1 Of 2)
GTY166897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

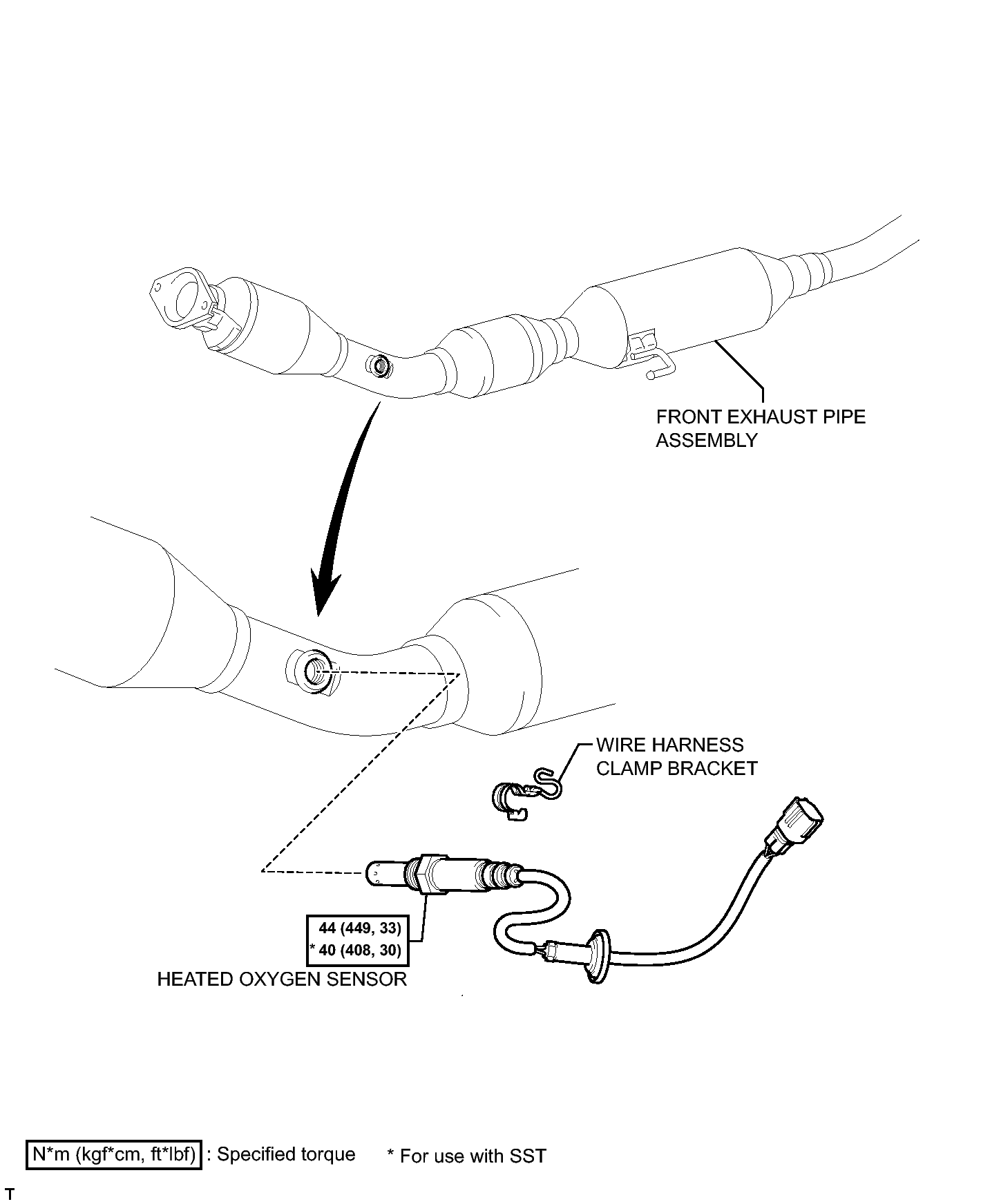

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specification (2 Of 2)
GTY164615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
