Integration Relay: Removal: Removal

Download the full database via torrent (~1.1 TB)
  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE INTEGRATION NO. 1 RELAY

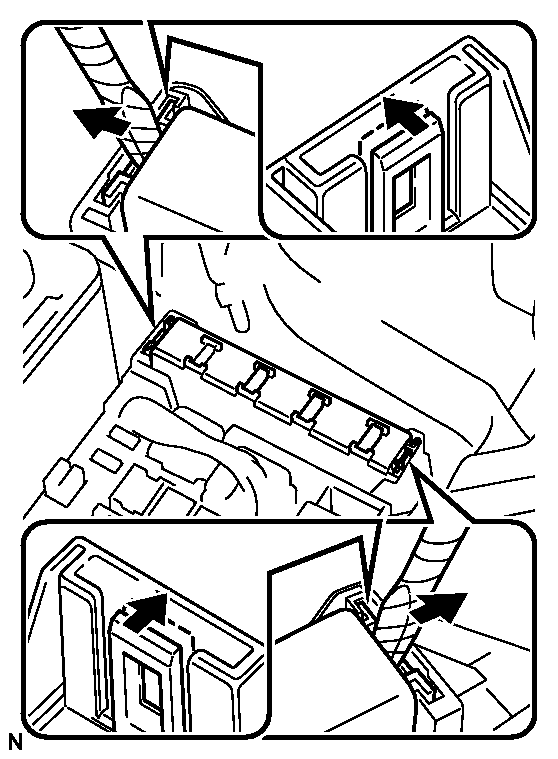

    Fig 1: Removing Integration Relay
    GTY161187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the integration relay.
    2. Disconnect the 3 connectors.
