Ignition Timing

Download the full database via torrent (~1.1 TB)
IGNITION TIMING (Degrees BTDC @ RPM)

Application Manual Transmission Automatic Transmission
1.2L (1) 5 @ 800 (1) 5 @ 850
(1) With test mode connector connected.

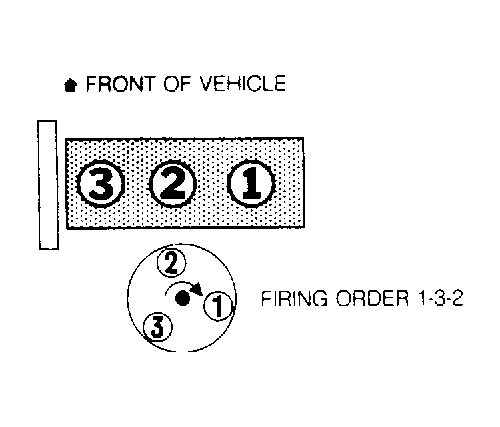

Fig 1: 3-Cylinder Firing Order & Distributor Rotation
G61156

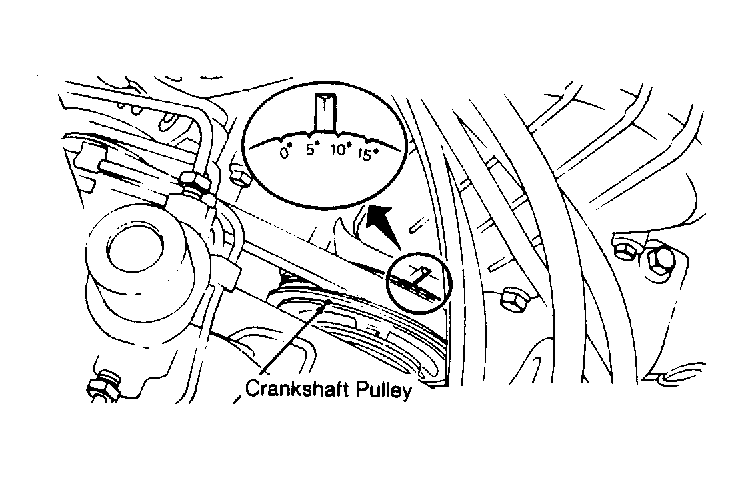

Fig 2: 3-Cylinder Ignition Timing Mark Location
G118281Courtesy of SUBARU OF AMERICA, INC.
