Fuel Pump Circuit Tests: Notes
Download the full database via torrent (~1.1 TB)

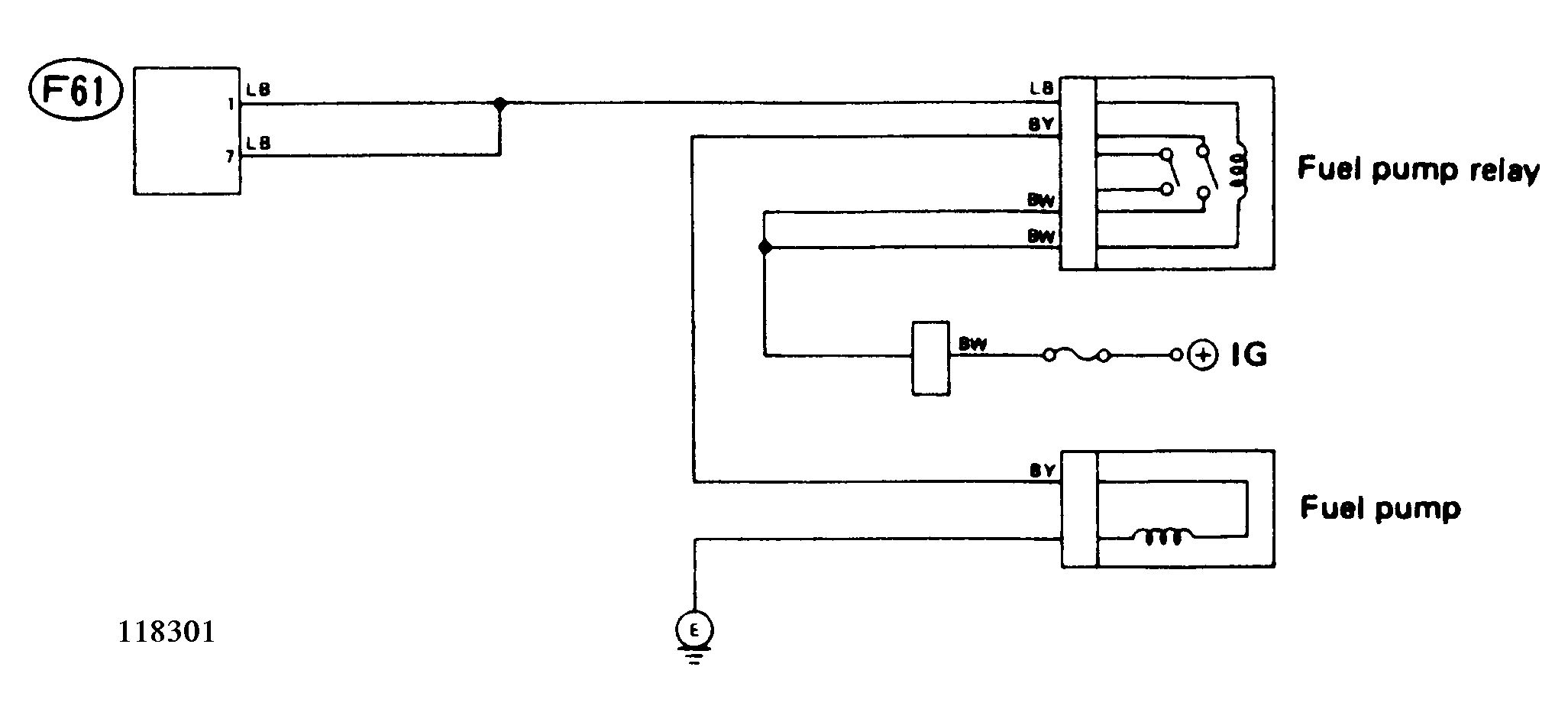

Fig 1: Fuel Pump Ckt Test, Schematic
Courtesy of SUBARU OF AMERICA, INC.

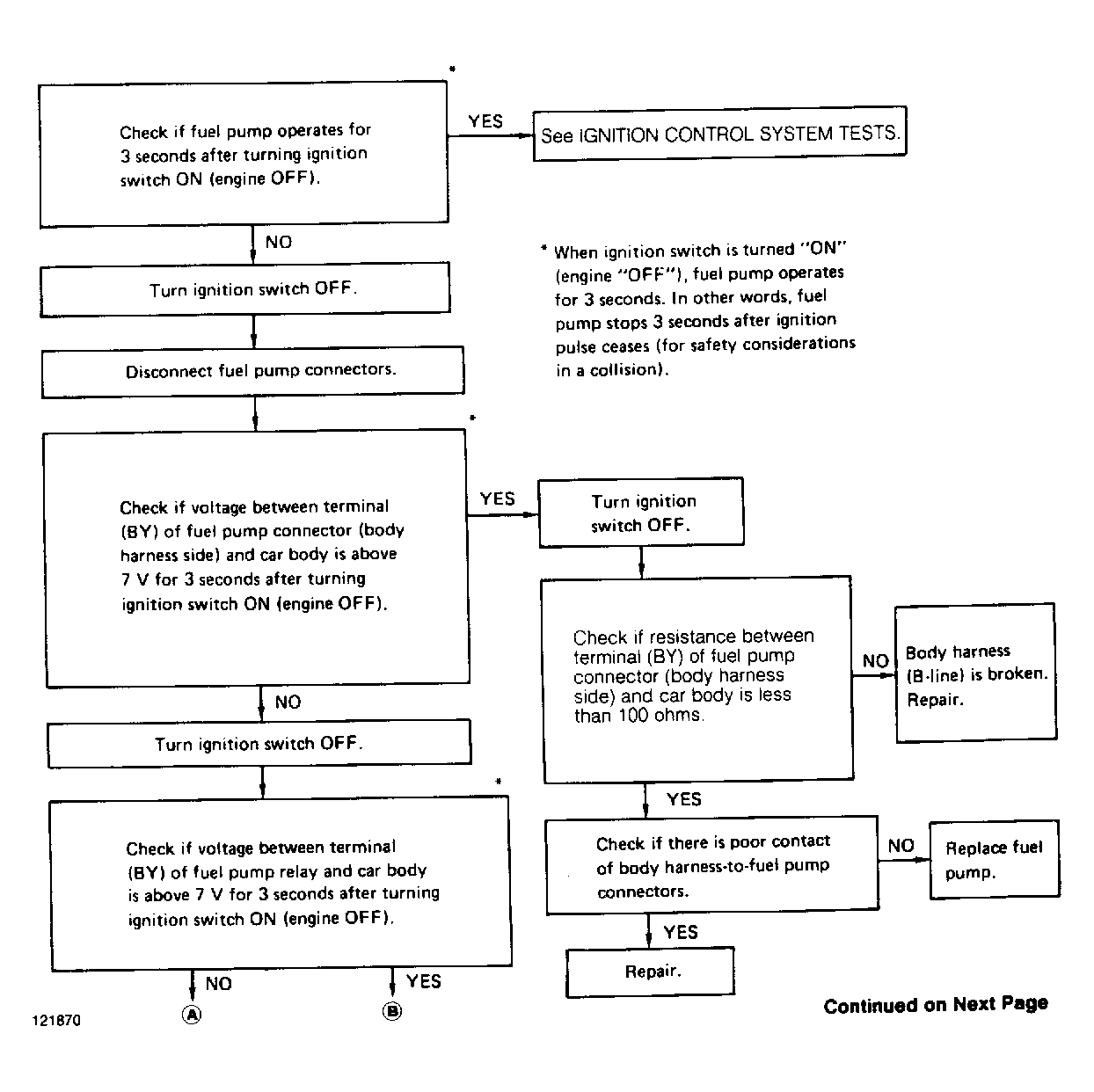

Fig 2: Fuel Pump Circuit Test, Flow Chart (1 of 3)
Courtesy of SUBARU OF AMERICA, INC.

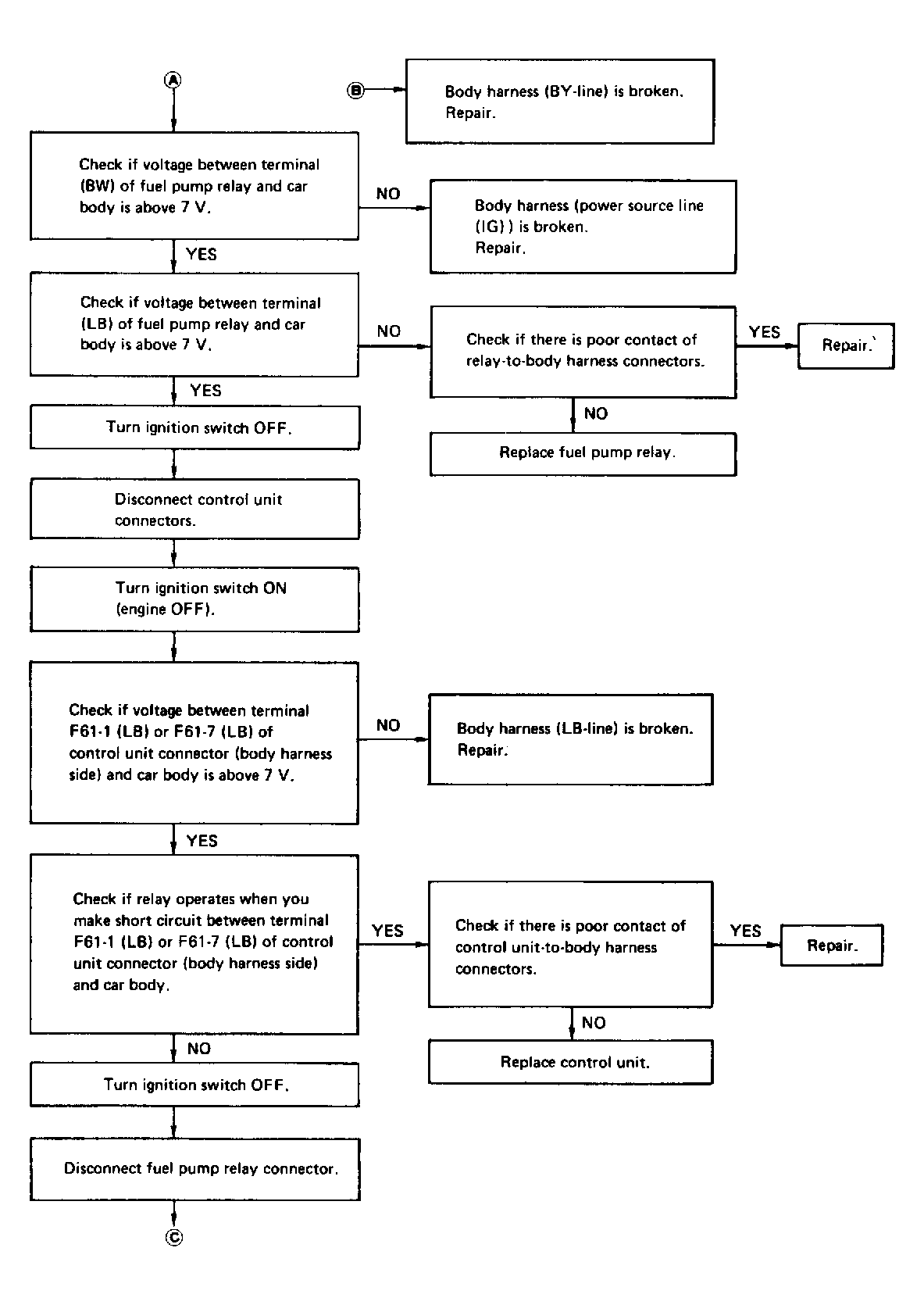

Fig 3: Justy Fuel Pump Circuit Test, Flow Chart (2 of 3)
Courtesy of SUBARU OF AMERICA, INC.

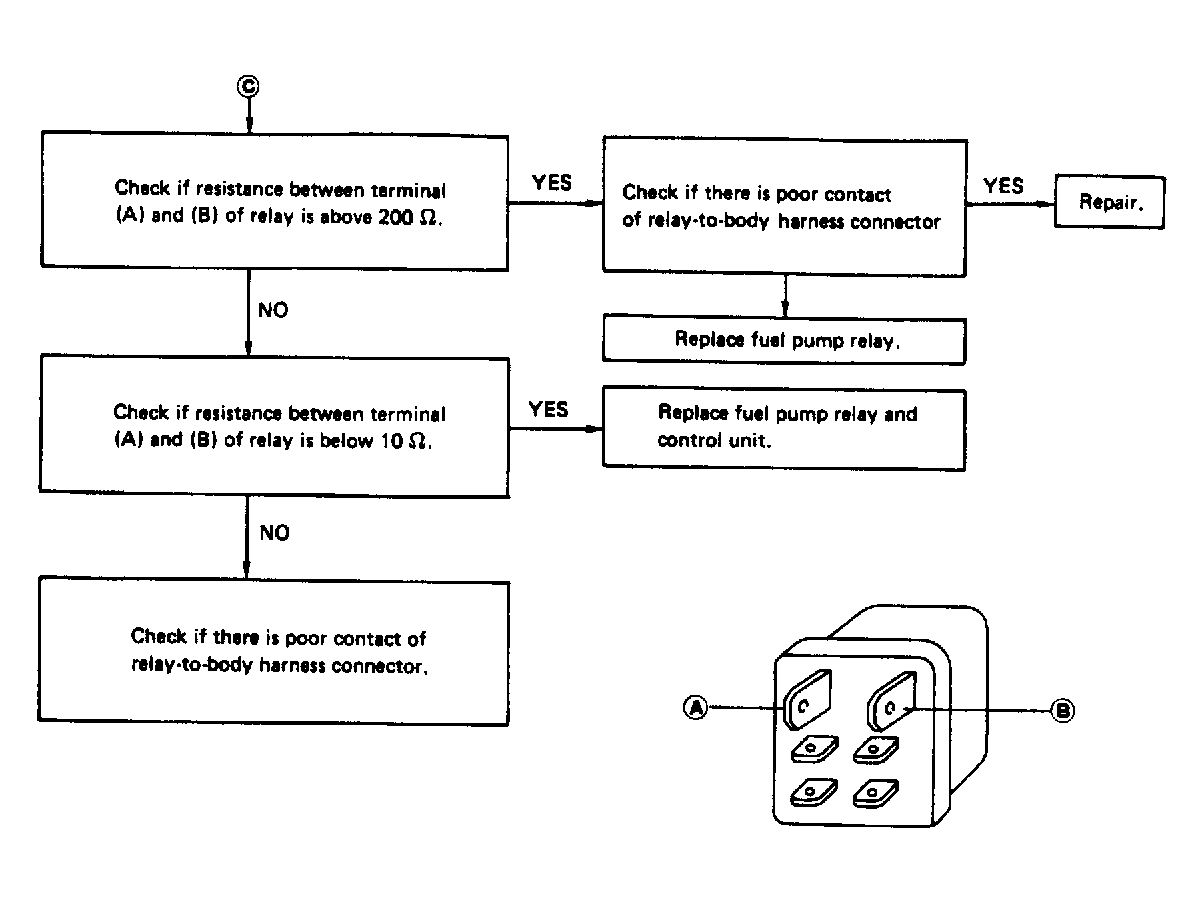

Fig 4: Justy Fuel Pump Circuit Test Flow Chart (3 of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
