Engine Controls - Basic Testing
>>
Ignition Control System Tests
Ignition Control System Tests
Download the full database via torrent (~1.1 TB)

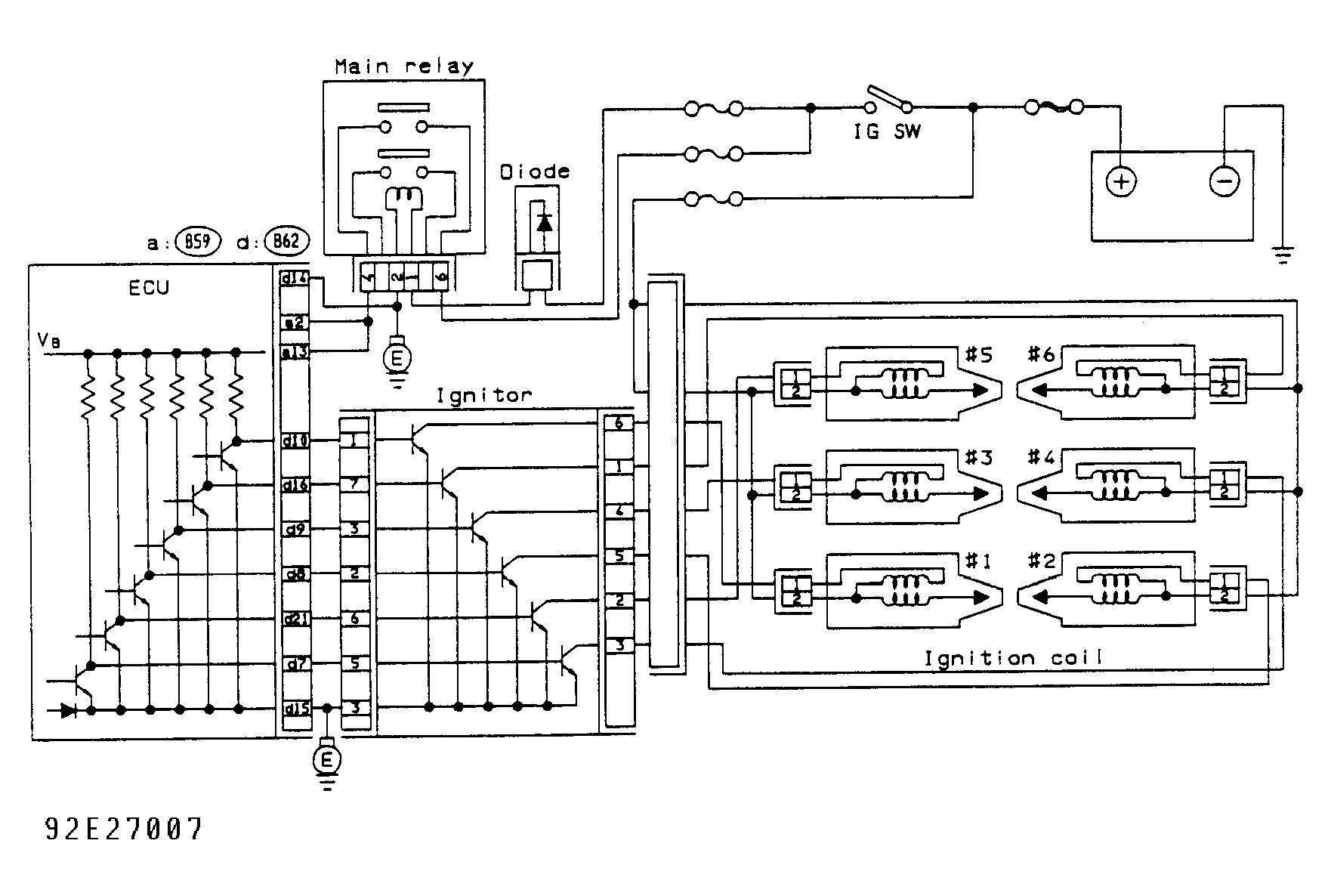

Fig 1: Ignition Control System Test, Schematic
Courtesy of SUBARU OF AMERICA, INC.

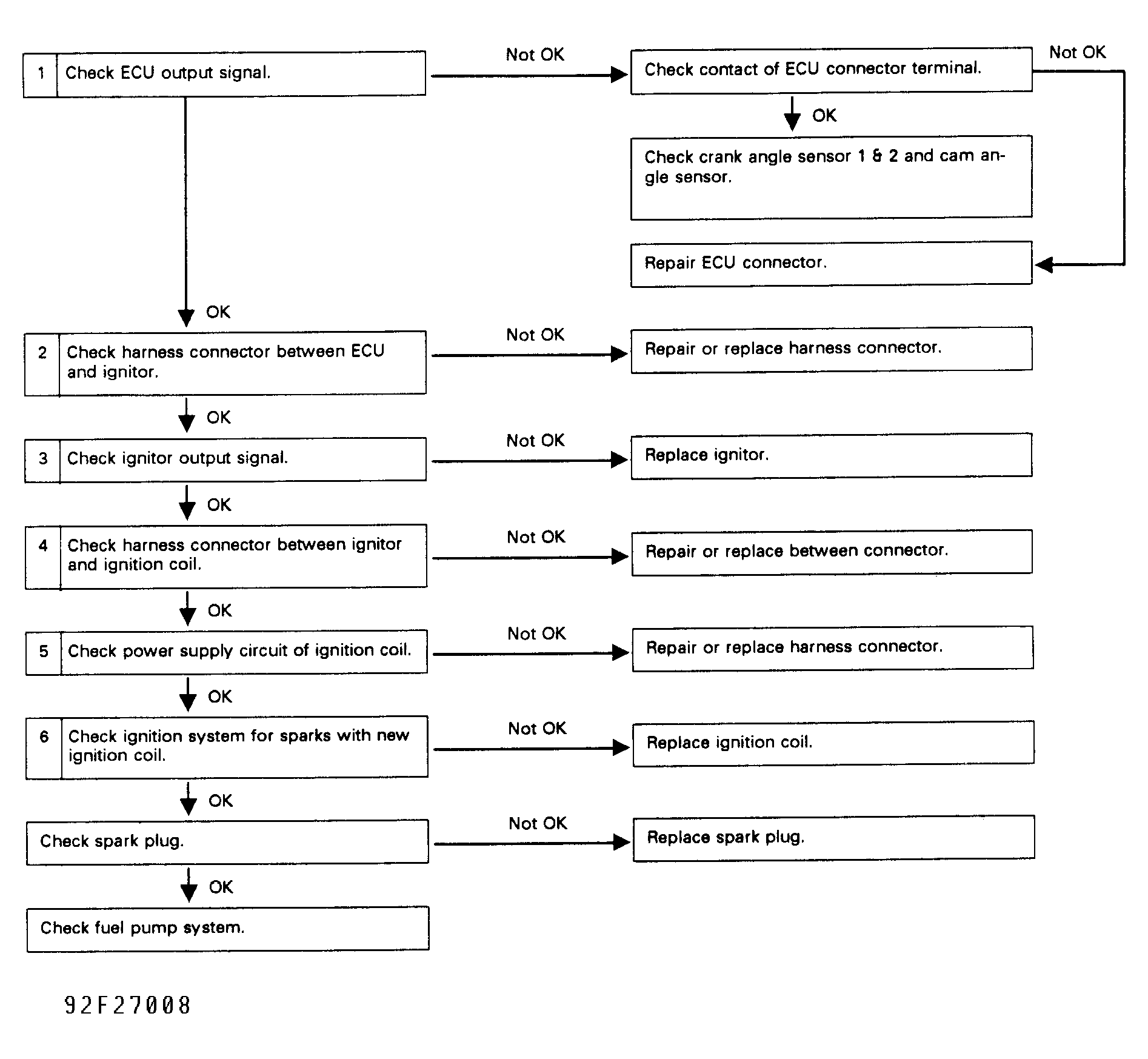

Fig 2: Ignition Control System Test, Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
