Code 42 - Idle Switch
Code 42 - Idle Switch
Download the full database via torrent (~1.1 TB)

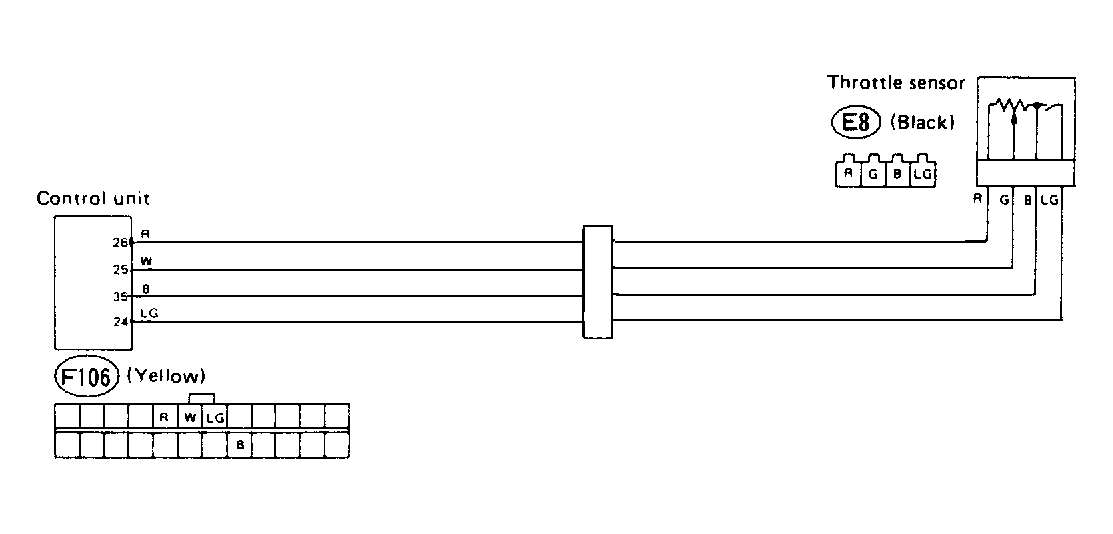

Fig 1: Code 42 - Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.

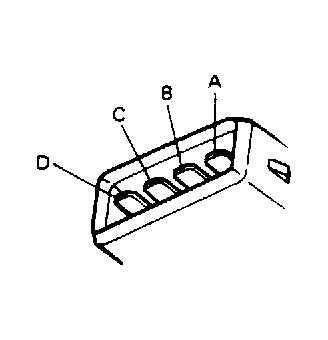

Fig 2: Code 42 - Control Unit Connector
Courtesy of SUBARU OF AMERICA, INC.

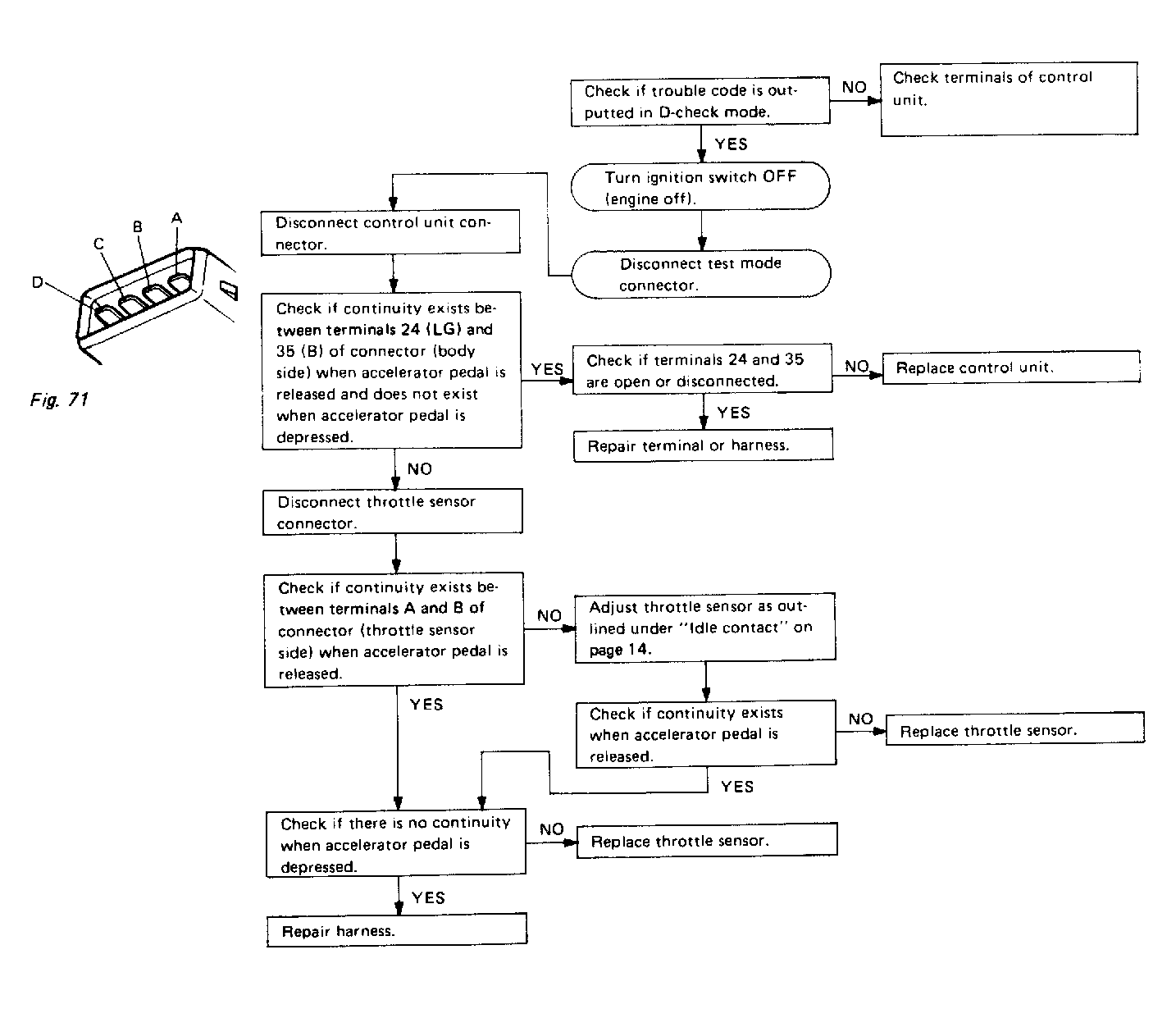

Fig 3: Code 42 - Diagnostic Flowchart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
