Code 45 - KICKDOWN Control Relay
Download the full database via torrent (~1.1 TB)

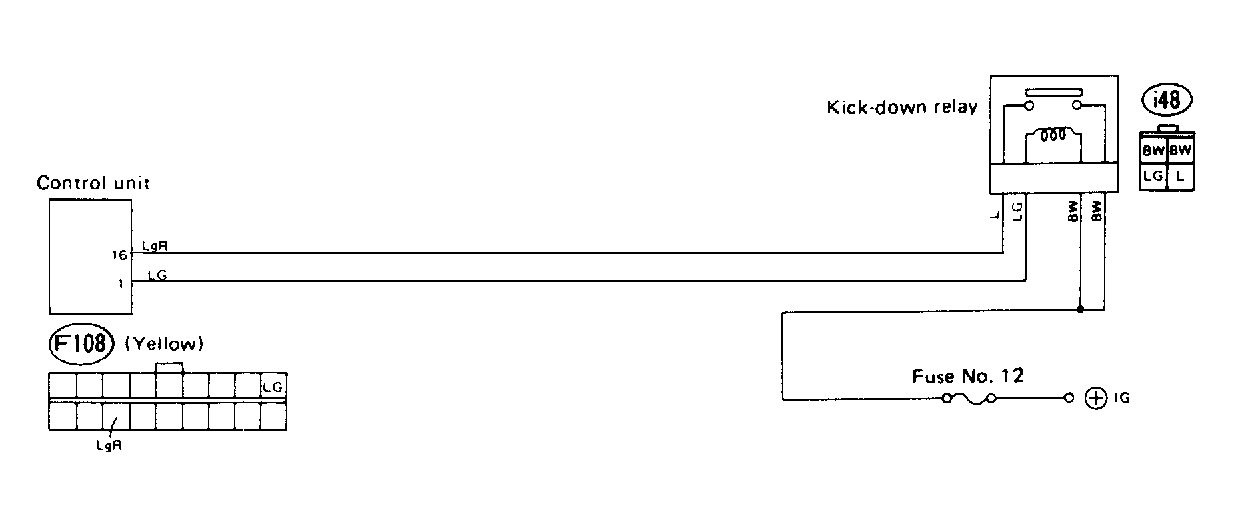

Fig 1: Code 45 - Wiring Schematic
Courtesy of SUBARU OF AMERICA, INC.

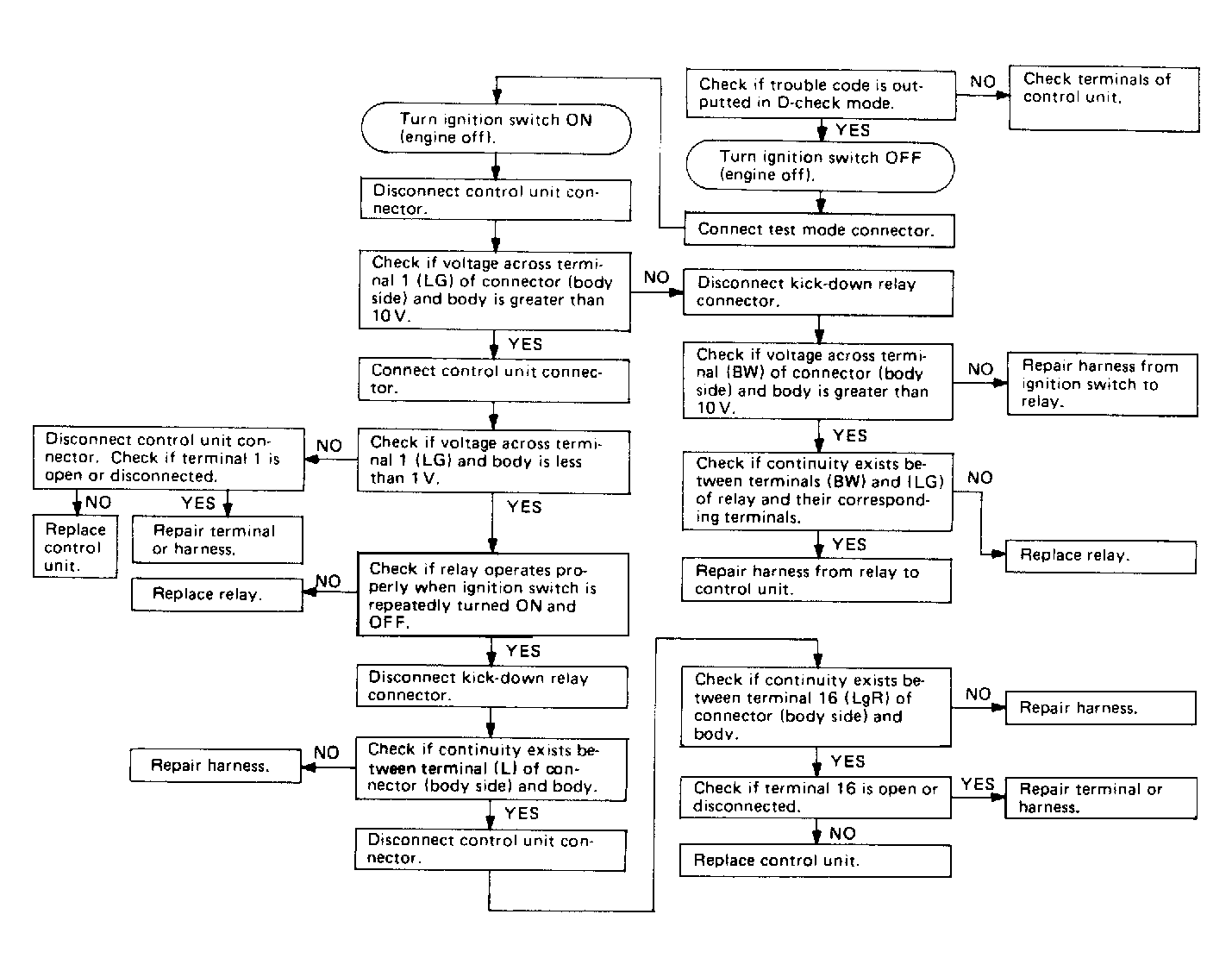

Fig 2: Code 45 - Diagnostic Flowchart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
