Conditions For Abs Sequence Control

Download the full database via torrent (~1.1 TB)

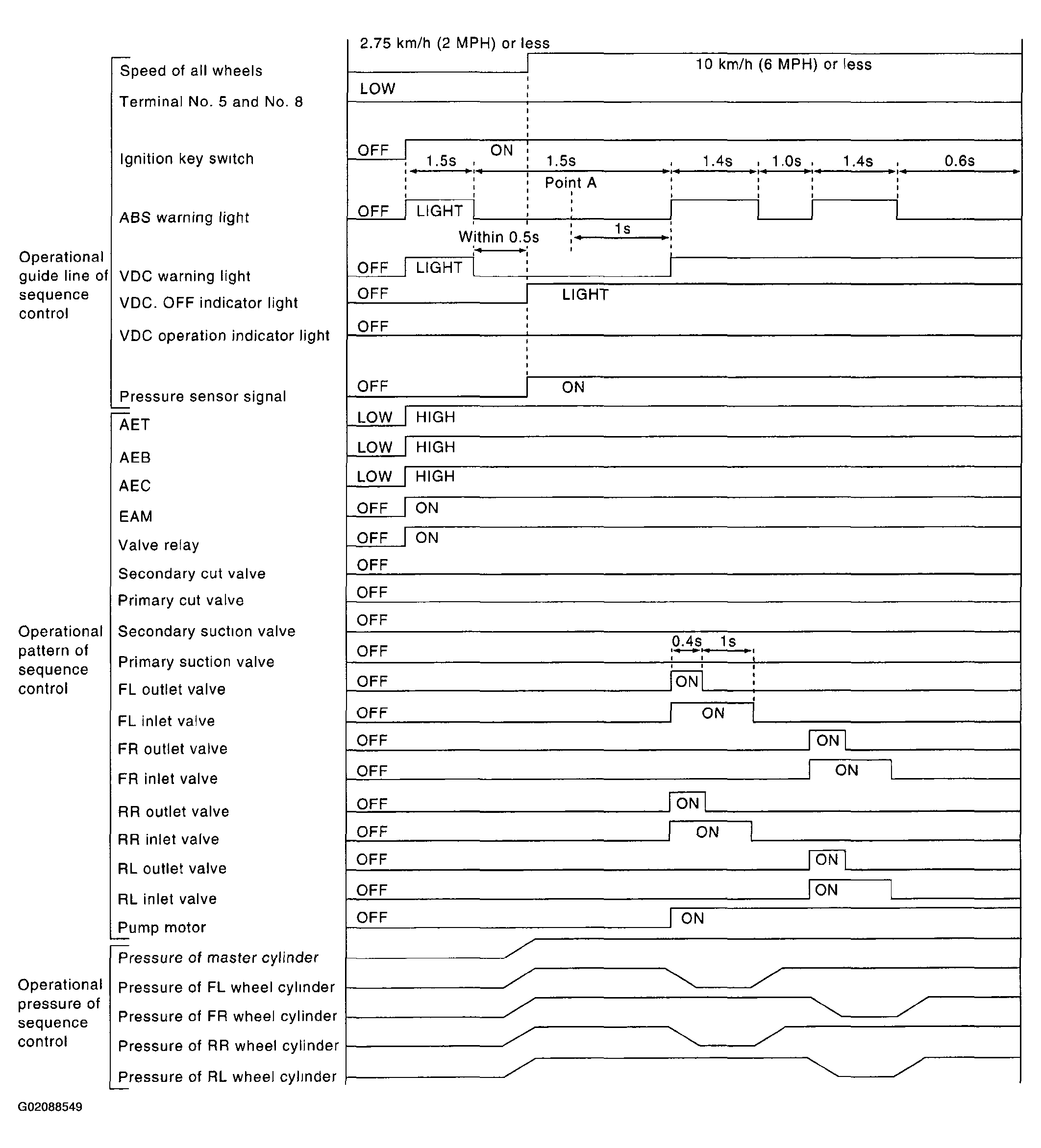

Fig 1: ABS Sequence Control Chart

G02088549

NOTE:

When select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by diagnosis connector.
HIGH means high voltage.
LOW means low voltage.
