At Shift Lock Control Module Power Supply And Ground Line
At Shift Lock Control Module Power Supply And Ground Line
Download the full database via torrent (~1.1 TB)

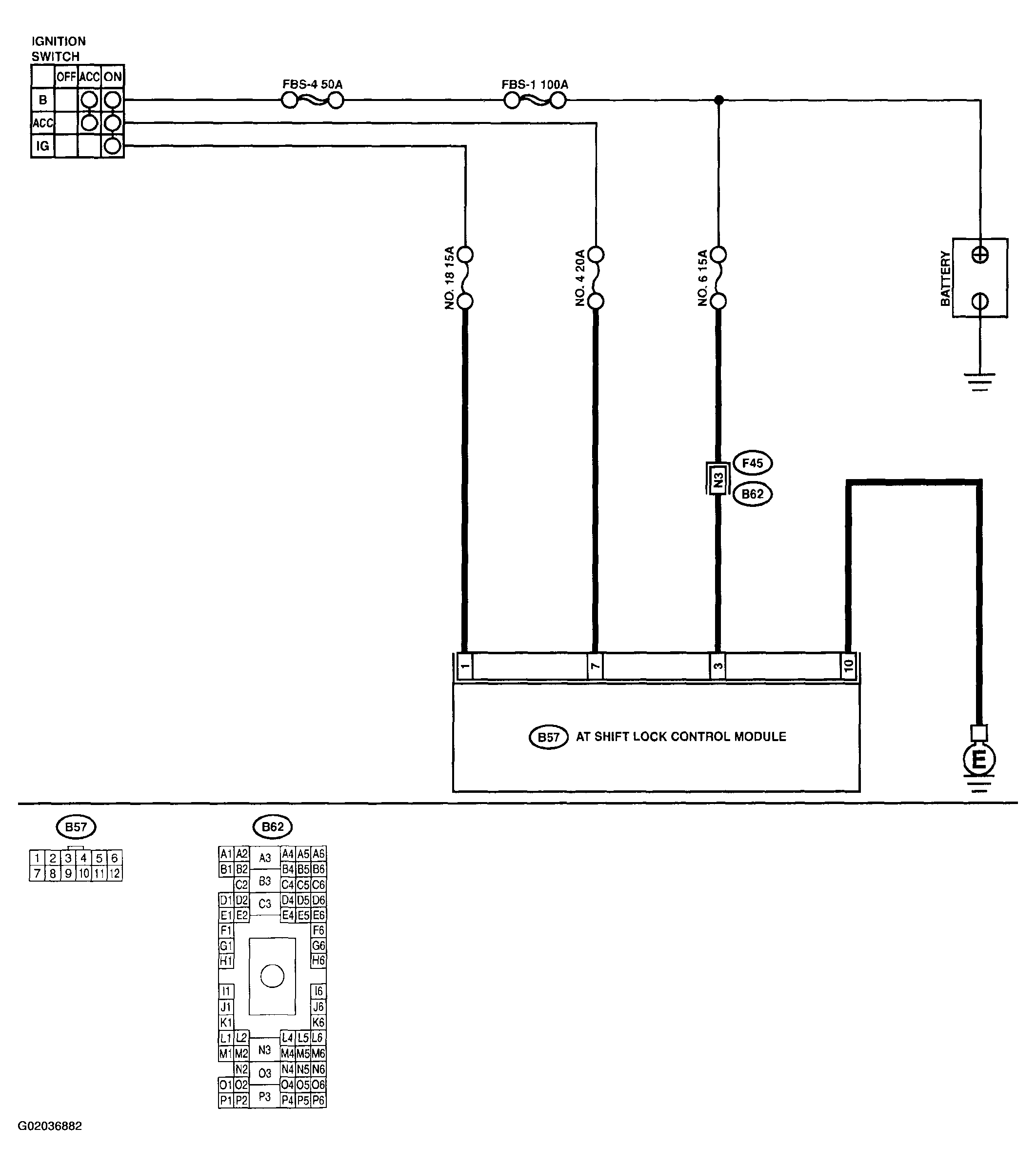

Fig 1: Wiring Diagram

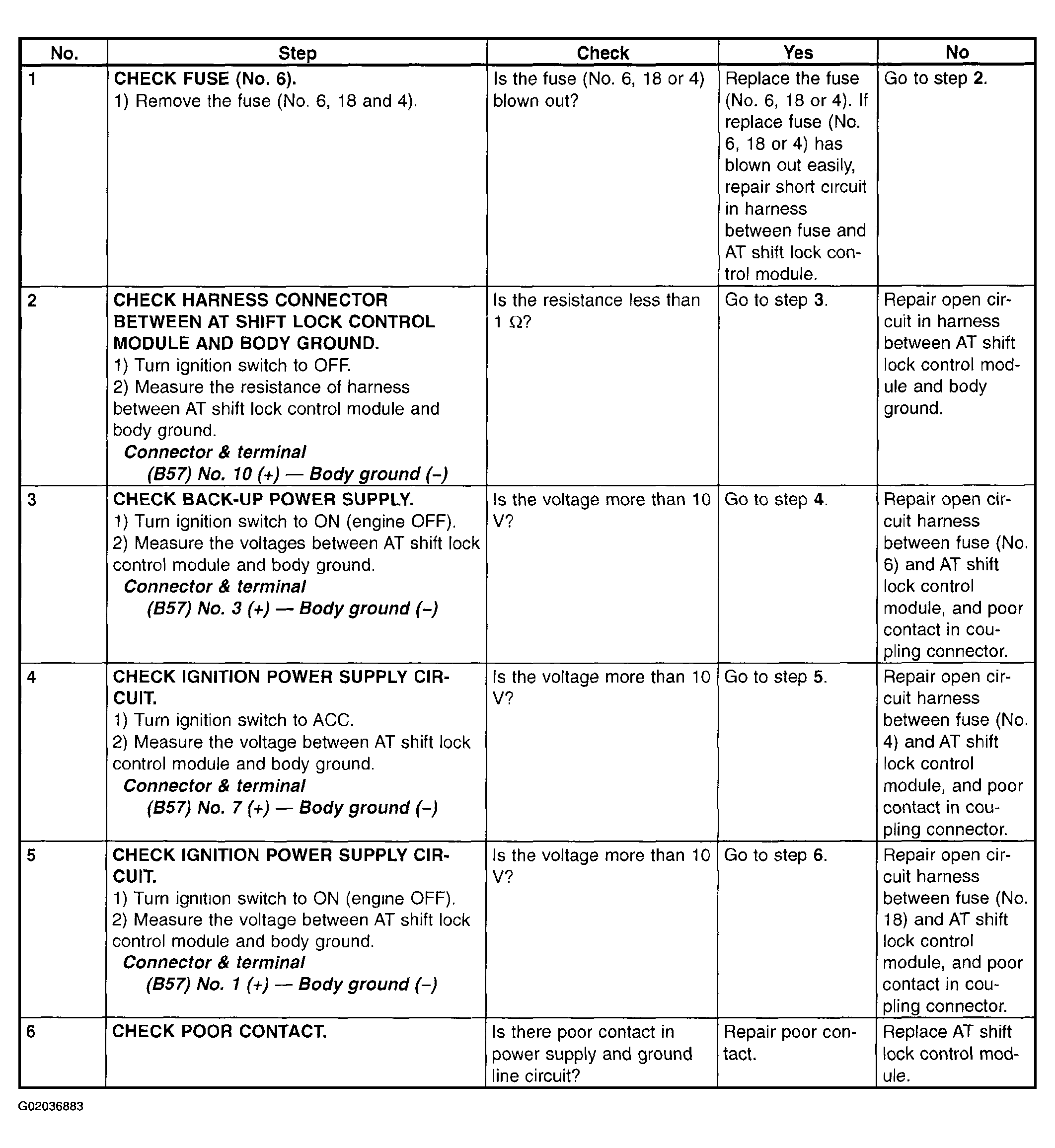

Fig 2: AT Shift Lock Power Supply Diagnostic Chart
