AT Shift Lock Control Module: Removal

Download the full database via torrent (~1.1 TB)
  1. Disconnect battery ground terminal.

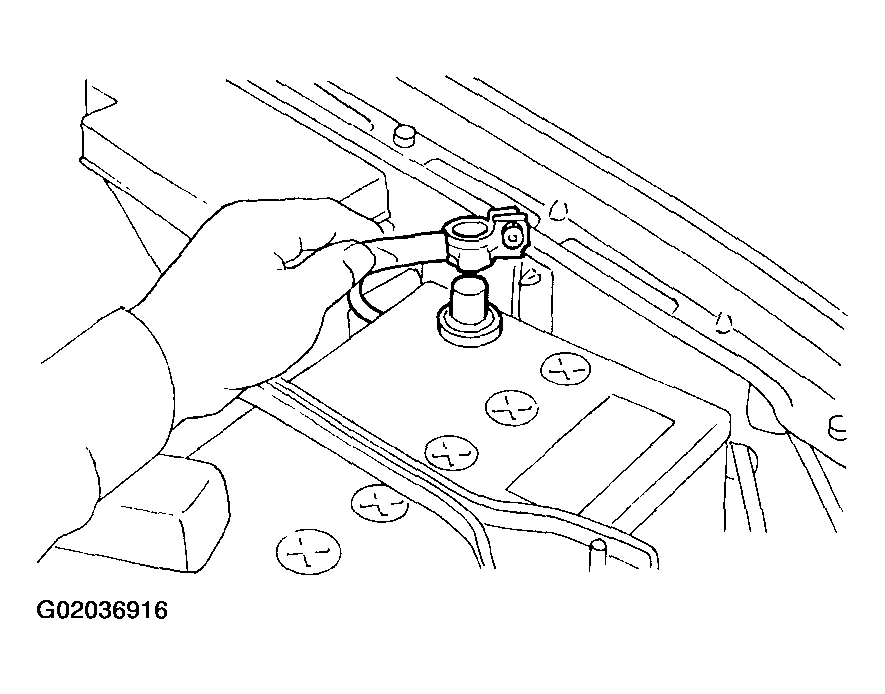

    Fig 1: Disconnecting Battery Ground Terminal
    G02036916
  2. Remove the lower cover and then disconnect connector.

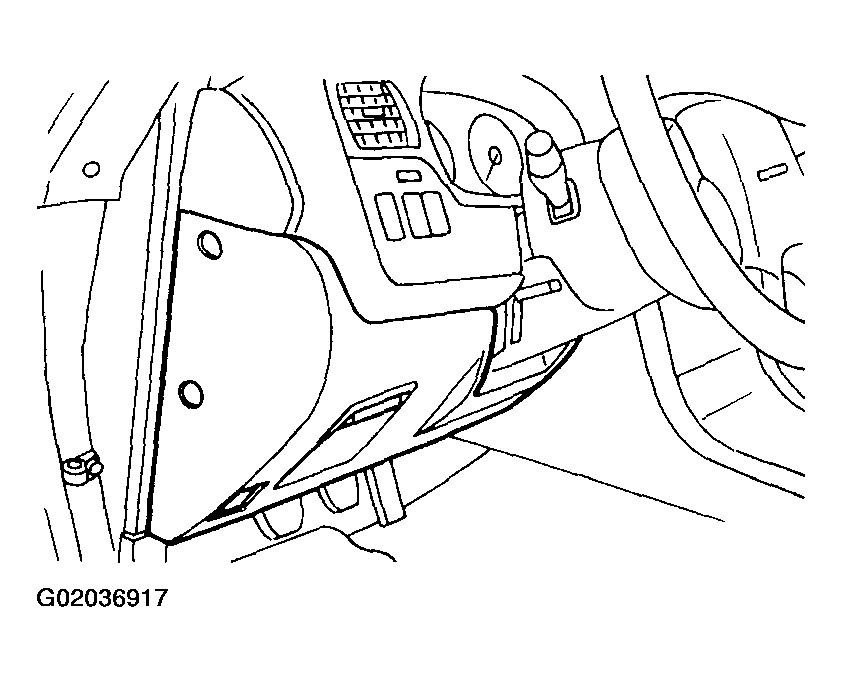

    Fig 2: Removing The Lower Cover
    G02036917
  3. Disconnect connector from AT shift lock control module.
  4. Remove the AT shift lock control module.
